fastjet::ClusterSequenceActiveAreaExplicitGhosts Class Reference

Class that behaves essentially like ClusterSequence except that it also provides access to the area of a jet (which will be a random quantity... More...

#include <ClusterSequenceActiveAreaExplicitGhosts.hh>

Inheritance diagram for fastjet::ClusterSequenceActiveAreaExplicitGhosts:

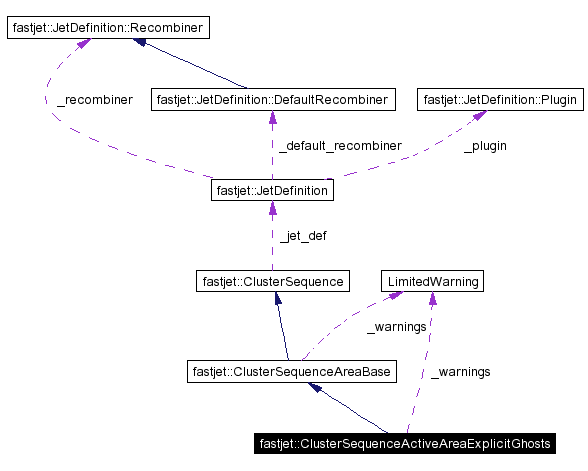

[legend]Collaboration diagram for fastjet::ClusterSequenceActiveAreaExplicitGhosts:

[legend]List of all members.


Public Member Functions
template<class L>	ClusterSequenceActiveAreaExplicitGhosts (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec &area_spec, const bool &writeout_combinations=false)
	constructor using a GhostedAreaSpec to specify how the area is to be measured
template<class L>	ClusterSequenceActiveAreaExplicitGhosts (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const std::vector< L > &ghosts, double ghost_area, const bool &writeout_combinations=false)
template<class L> void	_initialise (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec area_spec, const std::vector< L > ghosts, double ghost_area, const bool &writeout_combinations)
	does the actual work of initialisation
unsigned int	n_hard_particles () const
	returns the number of hard particles (i.e. those supplied by the user).
virtual double	area (const PseudoJet &jet) const
	returns the area of a jet
virtual PseudoJet	area_4vector (const PseudoJet &jet) const
	returns a four vector corresponding to the sum (E-scheme) of the ghost four-vectors composing the jet area, normalised such that for a small contiguous area the p_t of the extended_area jet is equal to area of the jet.
virtual bool	is_pure_ghost (const PseudoJet &jet) const
	true if a jet is made exclusively of ghosts
bool	is_pure_ghost (int history_index) const
	true if the entry in the history index corresponds to a ghost; if hist_ix does not correspond to an actual particle (i.e.
virtual double	empty_area (const RangeDefinition &range) const
	return the total area, up to \|y\|<maxrap, that consists of unclustered ghosts
double	total_area () const
	returns the total area under study
double	max_ghost_perp2 () const
	returns the largest squared transverse momentum among all ghosts
bool	has_dangerous_particles () const
	returns true if there are any particles whose transverse momentum if so low that there's a risk of the ghosts having modified the clustering sequence
Private Member Functions
void	_add_ghosts (const GhostedAreaSpec &area_spec)
	adds the "ghost" momenta, which will be used to estimate the jet area
template<class L> void	_add_ghosts (const std::vector< L > &ghosts, double ghost_area)
	add an explicitly specified bunch of ghosts
void	_post_process ()
	routine to be called after the processing is done so as to establish summary information on all the jets (areas, whether pure ghost, etc.)
Private Attributes
int	_n_ghosts
double	_ghost_area
std::vector< bool >	_is_pure_ghost
std::vector< double >	_areas
std::vector< PseudoJet >	_area_4vectors
double	_max_ghost_perp2
bool	_has_dangerous_particles
unsigned int	_initial_hard_n
Static Private Attributes
LimitedWarning	_warnings
	allow for warnings

Detailed Description

Class that behaves essentially like ClusterSequence except that it also provides access to the area of a jet (which will be a random quantity...

Figure out what to do about seeds later...)

Definition at line 48 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

Constructor & Destructor Documentation

template<class L>

fastjet::ClusterSequenceActiveAreaExplicitGhosts::ClusterSequenceActiveAreaExplicitGhosts ( const std::vector< L > & pseudojets,

const JetDefinition & jet_def,

const GhostedAreaSpec & area_spec,

const bool & writeout_combinations = false

) [inline]

constructor using a GhostedAreaSpec to specify how the area is to be measured

Definition at line 54 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

00058 : ClusterSequenceAreaBase() { 00059 std::vector<L> * ghosts = NULL; 00060 _initialise(pseudojets,jet_def,&area_spec,ghosts,0.0, 00061 writeout_combinations); }

template<class L>

fastjet::ClusterSequenceActiveAreaExplicitGhosts::ClusterSequenceActiveAreaExplicitGhosts ( const std::vector< L > & pseudojets,

const JetDefinition & jet_def,

const std::vector< L > & ghosts,

double ghost_area,

const bool & writeout_combinations = false

) [inline]

Definition at line 64 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

00069 : ClusterSequenceAreaBase() { 00070 const GhostedAreaSpec * area_spec = NULL; 00071 _initialise(pseudojets,jet_def,area_spec,&ghosts,ghost_area, 00072 writeout_combinations); }

Member Function Documentation

template<class L>

void fastjet::ClusterSequenceActiveAreaExplicitGhosts::_add_ghosts ( const std::vector< L > & ghosts,

double ghost_area

) [private]

add an explicitly specified bunch of ghosts

Definition at line 215 of file ClusterSequenceActiveAreaExplicitGhosts.hh.
References _ghost_area, _is_pure_ghost, fastjet::ClusterSequence::_jets, and _n_ghosts.

00217 { 00218 00219 00220 for (unsigned i = 0; i < ghosts.size(); i++) { 00221 _is_pure_ghost.push_back(true); 00222 _jets.push_back(ghosts[i]); 00223 } 00224 // and record some info about ghosts 00225 _ghost_area = ghost_area; 00226 _n_ghosts = ghosts.size(); 00227 }

void fastjet::ClusterSequenceActiveAreaExplicitGhosts::_add_ghosts ( const GhostedAreaSpec & area_spec ) [private]

adds the "ghost" momenta, which will be used to estimate the jet area

template<class L>

void fastjet::ClusterSequenceActiveAreaExplicitGhosts::_initialise ( const std::vector< L > & pseudojets,

const JetDefinition & jet_def,

const GhostedAreaSpec * area_spec,

const std::vector< L > * ghosts,

double ghost_area,

const bool & writeout_combinations

)

does the actual work of initialisation

Definition at line 162 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

00167 { 00168 // don't reserve space yet -- will be done below 00169 00170 // insert initial jets this way so that any type L that can be 00171 // converted to a pseudojet will work fine (basically PseudoJet 00172 // and any type that has [] subscript access to the momentum 00173 // components, such as CLHEP HepLorentzVector). 00174 for (unsigned int i = 0; i < pseudojets.size(); i++) { 00175 PseudoJet mom(pseudojets[i]); 00176 //mom.set_user_index(0); // for user's particles (user index now lost...) 00177 _jets.push_back(mom); 00178 _is_pure_ghost.push_back(false); 00179 } 00180 00181 _initial_hard_n = _jets.size(); 00182 00183 if (area_spec != NULL) { 00184 _add_ghosts(*area_spec); 00185 } else { 00186 _add_ghosts(*ghosts, ghost_area); 00187 } 00188 00189 if (writeout_combinations) { 00190 std::cout << "# Printing particles including ghosts\n"; 00191 for (unsigned j = 0; j < _jets.size(); j++) { 00192 printf("%5u %20.13f %20.13f %20.13e\n", 00193 j,_jets[j].rap(),_jets[j].phi_02pi(),_jets[j].kt2()); 00194 } 00195 std::cout << "# Finished printing particles including ghosts\n"; 00196 } 00197 00198 // this will ensure that we can still point to jets without 00199 // difficulties arising! 00200 _jets.reserve(_jets.size()*2); 00201 00202 // run the clustering 00203 _initialise_and_run(jet_def,writeout_combinations); 00204 00205 // set up all other information 00206 _post_process(); 00207 }

void fastjet::ClusterSequenceActiveAreaExplicitGhosts::_post_process ( ) [private]

routine to be called after the processing is done so as to establish summary information on all the jets (areas, whether pure ghost, etc.)

virtual double fastjet::ClusterSequenceActiveAreaExplicitGhosts::area ( const PseudoJet & jet ) const [virtual]

returns the area of a jet

Reimplemented from fastjet::ClusterSequenceAreaBase.
Referenced by fastjet::ClusterSequenceActiveArea::_transfer_areas().

virtual PseudoJet fastjet::ClusterSequenceActiveAreaExplicitGhosts::area_4vector ( const PseudoJet & jet ) const [virtual]

returns a four vector corresponding to the sum (E-scheme) of the ghost four-vectors composing the jet area, normalised such that for a small contiguous area the p_t of the extended_area jet is equal to area of the jet.

Reimplemented from fastjet::ClusterSequenceAreaBase.
Referenced by fastjet::ClusterSequenceActiveArea::_transfer_areas().

virtual double fastjet::ClusterSequenceActiveAreaExplicitGhosts::empty_area ( const RangeDefinition & range ) const [virtual]

return the total area, up to |y|<maxrap, that consists of unclustered ghosts

Reimplemented from fastjet::ClusterSequenceAreaBase.

bool fastjet::ClusterSequenceActiveAreaExplicitGhosts::has_dangerous_particles ( ) const [inline]

returns true if there are any particles whose transverse momentum if so low that there's a risk of the ghosts having modified the clustering sequence

Definition at line 120 of file ClusterSequenceActiveAreaExplicitGhosts.hh.
Referenced by fastjet::ClusterSequenceActiveArea::_run_AA(), and fastjet::ClusterSequenceActiveArea::_throw_unless_jets_have_same_perp_or_E().

00120 {return _has_dangerous_particles;}

bool fastjet::ClusterSequenceActiveAreaExplicitGhosts::is_pure_ghost ( int history_index ) const

true if the entry in the history index corresponds to a ghost; if hist_ix does not correspond to an actual particle (i.e.
hist_ix < 0), then the result is false.

virtual bool fastjet::ClusterSequenceActiveAreaExplicitGhosts::is_pure_ghost ( const PseudoJet & jet ) const [virtual]

true if a jet is made exclusively of ghosts

Reimplemented from fastjet::ClusterSequenceAreaBase.
Referenced by fastjet::ClusterSequenceActiveArea::_transfer_areas(), and fastjet::ClusterSequenceActiveArea::_transfer_ghost_free_history().

double fastjet::ClusterSequenceActiveAreaExplicitGhosts::max_ghost_perp2 ( ) const [inline]

returns the largest squared transverse momentum among all ghosts

Definition at line 115 of file ClusterSequenceActiveAreaExplicitGhosts.hh.

00115 {return _max_ghost_perp2;}

unsigned int fastjet::ClusterSequenceActiveAreaExplicitGhosts::n_hard_particles ( ) const [inline]

returns the number of hard particles (i.e. those supplied by the user).

Definition at line 210 of file ClusterSequenceActiveAreaExplicitGhosts.hh.
References _initial_hard_n.

00210 {return _initial_hard_n;}
