#include <Voronoi.hh>

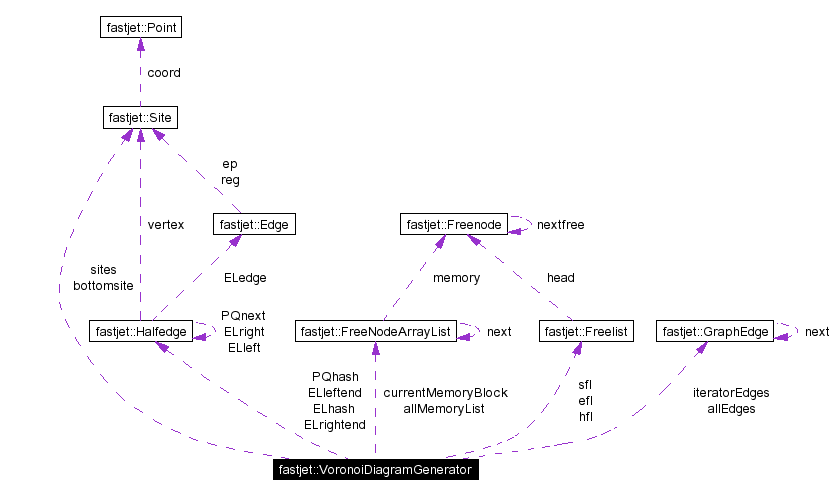

Collaboration diagram for fastjet::VoronoiDiagramGenerator:
|
|
Definition at line 62 of file Voronoi.cc. References allEdges, allMemoryList, currentMemoryBlock, ELhash, iteratorEdges, fastjet::FreeNodeArrayList::memory, minDistanceBetweenSites, fastjet::FreeNodeArrayList::next, parent_sites, PQhash, siteidx, and sites.
00062 {
00063 siteidx = 0;
00064 sites = NULL;
00065 parent_sites = NULL;
00066
00067 allMemoryList = new FreeNodeArrayList;
00068 allMemoryList->memory = NULL;
00069 allMemoryList->next = NULL;
00070 currentMemoryBlock = allMemoryList;
00071 allEdges = NULL;
00072 iteratorEdges = 0;
00073 minDistanceBetweenSites = 0;
00074
00075 ELhash = NULL;
00076 PQhash = NULL;
00077 }
|
|
|
Definition at line 79 of file Voronoi.cc. References allMemoryList, cleanup(), and cleanupEdges().
00079 {
00080 cleanup();
00081 cleanupEdges();
00082
00083 if (allMemoryList != NULL)
00084 delete allMemoryList;
00085 }
|
|
||||||||||||
|
Definition at line 336 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Edge::edgenbr, efl, fastjet::Edge::ep, getfree(), nedges, ref(), fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y. Referenced by voronoi().
00336 {
00337 double dx,dy,adx,ady;
00338 Edge *newedge;
00339
00340 newedge = (Edge*) getfree(&efl);
00341
00342 newedge->reg[0] = s1; //store the sites that this edge is bisecting
00343 newedge->reg[1] = s2;
00344 ref(s1);
00345 ref(s2);
00346
00347 // to begin with, there are no endpoints on the bisector - it goes
00348 // to infinity
00349 newedge->ep[0] = (Site*) NULL;
00350 newedge->ep[1] = (Site*) NULL;
00351
00352 // get the difference in x dist between the sites
00353 dx = s2->coord.x - s1->coord.x;
00354 dy = s2->coord.y - s1->coord.y;
00355
00356 // make sure that the difference is positive
00357 adx = dx>0 ? dx : -dx;
00358 ady = dy>0 ? dy : -dy;
00359
00360 // get the slope of the line
00361 newedge->c = (double)(s1->coord.x * dx + s1->coord.y * dy
00362 + (dx*dx + dy*dy)*0.5);
00363
00364 if (adx>ady){
00365 //set formula of line, with x fixed to 1
00366 newedge->a = 1.0; newedge->b = dy/dx; newedge->c /= dx;
00367 } else {
00368 //set formula of line, with y fixed to 1
00369 newedge->b = 1.0; newedge->a = dx/dy; newedge->c /= dy;
00370 }
00371
00372 newedge->edgenbr = nedges;
00373 nedges++;
00374
00375 return newedge;
00376 }
|
|
||||||||||||||||
|
Definition at line 736 of file Voronoi.cc. Referenced by out_site().
00736 {}
|
|
|
Definition at line 655 of file Voronoi.cc. References allMemoryList, currentMemoryBlock, ELhash, fastjet::FreeNodeArrayList::memory, fastjet::FreeNodeArrayList::next, PQhash, and sites. Referenced by generateVoronoi(), and ~VoronoiDiagramGenerator().
00656 {
00657 if(sites != NULL){
00658 free(sites);
00659 sites = 0;
00660 }
00661
00662 FreeNodeArrayList* current=NULL, *prev=NULL;
00663
00664 current = prev = allMemoryList;
00665
00666 while(current->next!=NULL){
00667 prev = current;
00668 current = current->next;
00669 free(prev->memory);
00670 delete prev;
00671 prev = NULL;
00672 }
00673
00674 if(current!=NULL){
00675 if (current->memory!=NULL){
00676 free(current->memory);
00677 }
00678 delete current;
00679 }
00680
00681 allMemoryList = new FreeNodeArrayList;
00682 allMemoryList->next = NULL;
00683 allMemoryList->memory = NULL;
00684 currentMemoryBlock = allMemoryList;
00685
00686 if (ELhash!=NULL)
00687 free(ELhash);
00688
00689 if (PQhash!=NULL)
00690 free(PQhash);
00691 }
|
|
|
Definition at line 693 of file Voronoi.cc. References allEdges, and fastjet::GraphEdge::next. Referenced by generateVoronoi(), and ~VoronoiDiagramGenerator().
00694 {
00695 GraphEdge* geCurrent = NULL, *gePrev = NULL;
00696 geCurrent = gePrev = allEdges;
00697
00698 while(geCurrent!=NULL){
00699 gePrev = geCurrent;
00700 geCurrent = geCurrent->next;
00701 delete gePrev;
00702 }
00703
00704 allEdges = 0;
00705
00706 }
|
|
|
Definition at line 792 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, borderMaxX, borderMaxY, borderMinX, borderMinY, fastjet::Edge::c, fastjet::Site::coord, fastjet::Edge::ep, pushGraphEdge(), pxmax, pxmin, pymax, pymin, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y. Referenced by endpoint(), and voronoi().
00793 {
00794 Site *s1, *s2;
00795 double x1=0,x2=0,y1=0,y2=0; //, temp = 0;
00796
00797 x1 = e->reg[0]->coord.x;
00798 x2 = e->reg[1]->coord.x;
00799 y1 = e->reg[0]->coord.y;
00800 y2 = e->reg[1]->coord.y;
00801
00802 //if the distance between the two points this line was created from is less than
00803 //the square root of 2, then ignore it
00804 //TODO improve/remove
00805 //if(sqrt(((x2 - x1) * (x2 - x1)) + ((y2 - y1) * (y2 - y1))) < minDistanceBetweenSites)
00806 // {
00807 // return;
00808 // }
00809 pxmin = borderMinX;
00810 pxmax = borderMaxX;
00811 pymin = borderMinY;
00812 pymax = borderMaxY;
00813
00814 if(e->a == 1.0 && e ->b >= 0.0)
00815 {
00816 s1 = e->ep[1];
00817 s2 = e->ep[0];
00818 }
00819 else
00820 {
00821 s1 = e->ep[0];
00822 s2 = e->ep[1];
00823 };
00824
00825 if(e->a == 1.0)
00826 {
00827 y1 = pymin;
00828 if (s1!=(Site *)NULL && s1->coord.y > pymin)
00829 {
00830 y1 = s1->coord.y;
00831 }
00832 if(y1>pymax)
00833 {
00834 // printf("\nClipped (1) y1 = %f to %f",y1,pymax);
00835 y1 = pymax;
00836 //return;
00837 }
00838 x1 = e->c - e->b * y1;
00839 y2 = pymax;
00840 if (s2!=(Site *)NULL && s2->coord.y < pymax)
00841 y2 = s2->coord.y;
00842
00843 if(y2<pymin)
00844 {
00845 //printf("\nClipped (2) y2 = %f to %f",y2,pymin);
00846 y2 = pymin;
00847 //return;
00848 }
00849 x2 = (e->c) - (e->b) * y2;
00850 if (((x1> pxmax) & (x2>pxmax)) | ((x1<pxmin)&(x2<pxmin)))
00851 {
00852 //printf("\nClipLine jumping out(3), x1 = %f, pxmin = %f, pxmax = %f",x1,pxmin,pxmax);
00853 return;
00854 }
00855 if(x1> pxmax)
00856 { x1 = pxmax; y1 = (e->c - x1)/e->b;};
00857 if(x1<pxmin)
00858 { x1 = pxmin; y1 = (e->c - x1)/e->b;};
00859 if(x2>pxmax)
00860 { x2 = pxmax; y2 = (e->c - x2)/e->b;};
00861 if(x2<pxmin)
00862 { x2 = pxmin; y2 = (e->c - x2)/e->b;};
00863 }
00864 else
00865 {
00866 x1 = pxmin;
00867 if (s1!=(Site *)NULL && s1->coord.x > pxmin)
00868 x1 = s1->coord.x;
00869 if(x1>pxmax)
00870 {
00871 //printf("\nClipped (3) x1 = %f to %f",x1,pxmin);
00872 //return;
00873 x1 = pxmax;
00874 }
00875 y1 = e->c - e->a * x1;
00876 x2 = pxmax;
00877 if (s2!=(Site *)NULL && s2->coord.x < pxmax)
00878 x2 = s2->coord.x;
00879 if(x2<pxmin)
00880 {
00881 //printf("\nClipped (4) x2 = %f to %f",x2,pxmin);
00882 //return;
00883 x2 = pxmin;
00884 }
00885 y2 = e->c - e->a * x2;
00886 if (((y1> pymax) & (y2>pymax)) | ((y1<pymin)&(y2<pymin)))
00887 {
00888 //printf("\nClipLine jumping out(6), y1 = %f, pymin = %f, pymax = %f",y2,pymin,pymax);
00889 return;
00890 }
00891 if(y1> pymax)
00892 { y1 = pymax; x1 = (e->c - y1)/e->a;};
00893 if(y1<pymin)
00894 { y1 = pymin; x1 = (e->c - y1)/e->a;};
00895 if(y2>pymax)
00896 { y2 = pymax; x2 = (e->c - y2)/e->a;};
00897 if(y2<pymin)
00898 { y2 = pymin; x2 = (e->c - y2)/e->a;};
00899 };
00900
00901 //printf("\nPushing line (%f,%f,%f,%f)",x1,y1,x2,y2);
00902 //fprintf(stdout, "Line with vertices (%f,%f) and (%f,%f)\n",
00903 // e->reg[0]->coord.x, e->reg[1]->coord.x, e->reg[0]->coord.y, e->reg[1]->coord.y);
00904 pushGraphEdge(x1,y1,x2,y2,e->reg[0],e->reg[1]);
00905 }
|
|
|
Definition at line 507 of file Voronoi.cc. References makefree(), fastjet::Site::refcnt, and sfl. Referenced by endpoint(), PQdelete(), and voronoi().
00508 {
00509 v->refcnt -= 1;
00510 if (v->refcnt == 0 )
00511 makefree((Freenode*)v, &sfl);
00512 }
|
|
||||||||||||
|
Definition at line 490 of file Voronoi.cc. References fastjet::Site::coord, fastjet::Point::x, and fastjet::Point::y. Referenced by voronoi().
00491 {
00492 double dx,dy;
00493 dx = s->coord.x - t->coord.x;
00494 dy = s->coord.y - t->coord.y;
00495 return (double)(sqrt(dx*dx + dy*dy));
00496 }
|
|
|
Definition at line 285 of file Voronoi.cc. References DELETED, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELleft, and fastjet::Halfedge::ELright. Referenced by voronoi().
00285 {
00286 (he->ELleft)->ELright = he->ELright;
00287 (he->ELright)->ELleft = he->ELleft;
00288 he->ELedge = (Edge*) DELETED;
00289 }
|
|
|
Definition at line 210 of file Voronoi.cc. References DELETED, fastjet::Halfedge::ELedge, ELhash, ELhashsize, fastjet::Halfedge::ELrefcnt, hfl, and makefree(). Referenced by ELleftbnd().
00210 {
00211 Halfedge *he;
00212
00213 if ((b<0) || (b>=ELhashsize))
00214 return (Halfedge *) NULL;
00215
00216 he = ELhash[b];
00217 if ((he==(Halfedge*) NULL) || (he->ELedge!=(Edge*) DELETED))
00218 return he;
00219
00220 /* Hash table points to deleted half edge. Patch as necessary. */
00221 ELhash[b] = (Halfedge*) NULL;
00222 if ((he->ELrefcnt -= 1) == 0)
00223 makefree((Freenode*)he, &hfl);
00224 return (Halfedge*) NULL;
00225 }
|
|
|
Definition at line 164 of file Voronoi.cc. References ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELright, ELrightend, freeinit(), HEcreate(), hfl, myalloc(), and sqrt_nsites. Referenced by voronoi().
00164 {
00165 int i;
00166 freeinit(&hfl, sizeof(Halfedge));
00167 ELhashsize = 2 * sqrt_nsites;
00168 //ELhash = (Halfedge **) myalloc ( sizeof *ELhash * ELhashsize);
00169 ELhash = (Halfedge **) myalloc ( sizeof(Halfedge*)*ELhashsize);
00170
00171 if(ELhash == 0)
00172 return false;
00173
00174 for(i=0; i<ELhashsize; i +=1) ELhash[i] = (Halfedge *)NULL;
00175 ELleftend = HEcreate((Edge*) NULL, 0);
00176 ELrightend = HEcreate((Edge*) NULL, 0);
00177 ELleftend->ELleft = (Halfedge*) NULL;
00178 ELleftend->ELright = ELrightend;
00179 ELrightend->ELleft = ELleftend;
00180 ELrightend->ELright = (Halfedge*) NULL;
00181 ELhash[0] = ELleftend;
00182 ELhash[ELhashsize-1] = ELrightend;
00183
00184 return true;
00185 }
|
|
||||||||||||
|
Definition at line 200 of file Voronoi.cc. References fastjet::Halfedge::ELleft, and fastjet::Halfedge::ELright. Referenced by voronoi().
00201 {
00202 newHe->ELleft = lb;
00203 newHe->ELright = lb->ELright;
00204 (lb->ELright)->ELleft = newHe;
00205 lb->ELright = newHe;
00206 }
|
|
|
Definition at line 297 of file Voronoi.cc. References fastjet::Halfedge::ELleft.
00297 {
00298 return he->ELleft;
00299 }
|
|
|
Referenced by voronoi(). |
|
|
Definition at line 227 of file Voronoi.cc. References deltax, ELgethash(), ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELrefcnt, fastjet::Halfedge::ELright, ELrightend, ntry, right_of(), totalsearch, fastjet::Point::x, and xmin.
00227 {
00228 int i, bucket;
00229 Halfedge *he;
00230
00231 /* Use hash table to get close to desired halfedge */
00232 // use the hash function to find the place in the hash map that this
00233 // HalfEdge should be
00234 bucket = (int)((p->x - xmin)/deltax * ELhashsize);
00235
00236 // make sure that the bucket position in within the range of the
00237 //hash array
00238 if (bucket<0) bucket =0;
00239 if (bucket>=ELhashsize) bucket = ELhashsize - 1;
00240
00241 he = ELgethash(bucket);
00242
00243 // if the HE isn't found, search backwards and forwards in the hash
00244 // map for the first non-null entry
00245 if (he == (Halfedge*) NULL){
00246 for(i=1;1;i++){
00247 if ((he=ELgethash(bucket-i)) != (Halfedge*) NULL)
00248 break;
00249 if ((he=ELgethash(bucket+i)) != (Halfedge*) NULL)
00250 break;
00251 };
00252 totalsearch += i;
00253 };
00254 ntry += 1;
00255 /* Now search linear list of halfedges for the correct one */
00256 if ((he==ELleftend) || (he != ELrightend && right_of(he,p))){
00257 do{
00258 he = he->ELright;
00259 } while (he!=ELrightend && right_of(he,p));
00260 // keep going right on the list until either the end is reached,
00261 // or you find the 1st edge which the point
00262 he = he->ELleft; //isn't to the right of
00263 } else
00264 // if the point is to the left of the HalfEdge, then search left
00265 // for the HE just to the left of the point
00266 do{
00267 he = he->ELleft;
00268 } while ((he!=ELleftend )&& (!right_of(he,p)));
00269
00270 /* Update hash table and reference counts */
00271 if ((bucket > 0) && (bucket <ELhashsize-1)){
00272 if(ELhash[bucket] != (Halfedge *) NULL){
00273 ELhash[bucket]->ELrefcnt -= 1;
00274 }
00275 ELhash[bucket] = he;
00276 ELhash[bucket]->ELrefcnt += 1;
00277 };
00278
00279 return he;
00280 }
|
|
|
Referenced by voronoi(). |
|
|
Definition at line 292 of file Voronoi.cc. References fastjet::Halfedge::ELright.
00292 {
00293 return he->ELright;
00294 }
|
|
|
Referenced by voronoi(). |
|
||||||||||||||||
|
Definition at line 475 of file Voronoi.cc. References clip_line(), deref(), efl, fastjet::Edge::ep, le, makefree(), re, ref(), and fastjet::Edge::reg. Referenced by voronoi().
|
|
||||||||||||
|
Definition at line 616 of file Voronoi.cc. References fastjet::Freelist::head, and fastjet::Freelist::nodesize. Referenced by ELinitialize(), generateVoronoi(), and geominit().
00617 {
00618 fl->head = (Freenode *) NULL;
00619 fl->nodesize = size;
00620 }
|
|
||||||||||||||||||||||||||||
|
Definition at line 89 of file Voronoi.cc. References borderMaxX, borderMaxY, borderMinX, borderMinY, cleanup(), cleanupEdges(), fastjet::Site::coord, debug, freeinit(), geominit(), minDistanceBetweenSites, myalloc(), n_parent_sites, nsites, parent_sites, plot, fastjet::Site::refcnt, fastjet::scomp(), sfl, siteidx, fastjet::Site::sitenbr, sites, sorted, triangulate, voronoi(), fastjet::Point::x, xmax, xmin, fastjet::Point::y, ymax, and ymin.
00092 {
00093 cleanup();
00094 cleanupEdges();
00095 int i;
00096 double x, y;
00097
00098 minDistanceBetweenSites = minDist;
00099
00100 parent_sites = _parent_sites;
00101
00102 nsites = n_parent_sites = parent_sites->size();
00103 plot = 0;
00104 triangulate = 0;
00105 debug = 1;
00106 sorted = 0;
00107 freeinit(&sfl, sizeof (Site));
00108
00109 //sites = (Site *) myalloc(nsites*sizeof( *sites));
00110 sites = (Site *) myalloc(nsites*sizeof( Site));
00111 //parent_sites = (Site *) myalloc(nsites*sizeof( Site));
00112
00113 if (sites == 0)
00114 return false;
00115
00116 xmax = xmin = (*parent_sites)[0].x;
00117 ymax = ymin = (*parent_sites)[0].y;
00118
00119 for(i=0;i<nsites;i++){
00120 x = (*parent_sites)[i].x;
00121 y = (*parent_sites)[i].y;
00122 sites[i].coord.x = x;
00123 sites[i].coord.y = y;
00124 sites[i].sitenbr = i;
00125 sites[i].refcnt = 0;
00126
00127 if (x<xmin)
00128 xmin=x;
00129 else if (x>xmax)
00130 xmax=x;
00131
00132 if (y<ymin)
00133 ymin=y;
00134 else if (y>ymax)
00135 ymax=y;
00136 }
00137
00138 qsort(sites, nsites, sizeof (*sites), scomp);
00139
00140 siteidx = 0;
00141 geominit();
00142 double temp = 0;
00143 if(minX > maxX){
00144 temp = minX;
00145 minX = maxX;
00146 maxX = temp;
00147 }
00148 if(minY > maxY){
00149 temp = minY;
00150 minY = maxY;
00151 maxY = temp;
00152 }
00153 borderMinX = minX;
00154 borderMinY = minY;
00155 borderMaxX = maxX;
00156 borderMaxY = maxY;
00157
00158 siteidx = 0;
00159 voronoi(triangulate);
00160
00161 return true;
00162 }
|
|
|
Definition at line 323 of file Voronoi.cc. References deltax, deltay, efl, freeinit(), nedges, nsites, nvertices, sqrt_nsites, xmax, xmin, ymax, and ymin. Referenced by generateVoronoi().
|
|
|
Definition at line 622 of file Voronoi.cc. References currentMemoryBlock, fastjet::Freelist::head, makefree(), fastjet::FreeNodeArrayList::memory, myalloc(), fastjet::FreeNodeArrayList::next, fastjet::Freenode::nextfree, fastjet::Freelist::nodesize, and sqrt_nsites. Referenced by bisect(), HEcreate(), and intersect().
00623 {
00624 int i;
00625 Freenode *t;
00626
00627 if(fl->head == (Freenode *) NULL)
00628 {
00629 t = (Freenode *) myalloc(sqrt_nsites * fl->nodesize);
00630
00631 if(t == 0)
00632 return 0;
00633
00634 currentMemoryBlock->next = new FreeNodeArrayList;
00635 currentMemoryBlock = currentMemoryBlock->next;
00636 currentMemoryBlock->memory = t;
00637 currentMemoryBlock->next = 0;
00638
00639 for(i=0; i<sqrt_nsites; i+=1)
00640 makefree((Freenode *)((char *)t+i*fl->nodesize), fl);
00641 };
00642 t = fl->head;
00643 fl->head = (fl->head)->nextfree;
00644 return((char *)t);
00645 }
|
|
|
Definition at line 207 of file Voronoi.hh. References fastjet::GraphEdge::next.
00207 {
00208 if(iteratorEdges == 0)
00209 return false;
00210
00211 *e = iteratorEdges;
00212 iteratorEdges = iteratorEdges->next;
00213 return true;
00214 }
|
|
||||||||||||
|
Definition at line 188 of file Voronoi.cc. References fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, fastjet::Halfedge::ELrefcnt, getfree(), hfl, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex.
00188 {
00189 Halfedge *answer;
00190 answer = (Halfedge*) getfree(&hfl);
00191 answer->ELedge = e;
00192 answer->ELpm = pm;
00193 answer->PQnext = (Halfedge*) NULL;
00194 answer->vertex = (Site*) NULL;
00195 answer->ELrefcnt = 0;
00196 return answer;
00197 }
|
|
|
Referenced by ELinitialize(), and voronoi(). |
|
||||||||||||||||
|
Definition at line 382 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, getfree(), le, re, fastjet::Site::refcnt, fastjet::Edge::reg, sfl, fastjet::Point::x, and fastjet::Point::y. Referenced by voronoi().
00382 {
00383 Edge *e1,*e2, *e;
00384 Halfedge *el;
00385 double d, xint, yint;
00386 int right_of_site;
00387 Site *v;
00388
00389 e1 = el1->ELedge;
00390 e2 = el2->ELedge;
00391 if ((e1==(Edge*)NULL) || (e2==(Edge*)NULL))
00392 return ((Site*) NULL);
00393
00394 // if the two edges bisect the same parent, return null
00395 if (e1->reg[1] == e2->reg[1])
00396 return (Site*) NULL;
00397
00398 d = e1->a * e2->b - e1->b * e2->a;
00399 if (-1.0e-10<d && d<1.0e-10)
00400 return (Site*) NULL;
00401
00402 xint = (e1->c*e2->b - e2->c*e1->b)/d;
00403 yint = (e2->c*e1->a - e1->c*e2->a)/d;
00404
00405 if( (e1->reg[1]->coord.y < e2->reg[1]->coord.y) ||
00406 ((e1->reg[1]->coord.y == e2->reg[1]->coord.y) &&
00407 (e1->reg[1]->coord.x < e2->reg[1]->coord.x)) ){
00408 el = el1;
00409 e = e1;
00410 } else {
00411 el = el2;
00412 e = e2;
00413 }
00414
00415 right_of_site = xint >= e->reg[1]->coord.x;
00416 if ((right_of_site && el->ELpm == le) || (!right_of_site && el->ELpm == re))
00417 return (Site*) NULL;
00418
00419 // create a new site at the point of intersection - this is a new
00420 // vector event waiting to happen
00421 v = (Site*) getfree(&sfl);
00422 v->refcnt = 0;
00423 v->coord.x = xint;
00424 v->coord.y = yint;
00425 return v;
00426 }
|
|
|
Definition at line 302 of file Voronoi.cc. References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg. Referenced by voronoi().
00302 {
00303 if (he->ELedge == (Edge*) NULL)
00304 return(bottomsite);
00305 return (he->ELpm == le)
00306 ? he->ELedge->reg[le]
00307 : he->ELedge->reg[re];
00308 }
|
|
||||||||||||
|
Definition at line 649 of file Voronoi.cc. References fastjet::Freelist::head, and fastjet::Freenode::nextfree. Referenced by deref(), ELgethash(), endpoint(), and getfree().
00650 {
00651 curr->nextfree = fl->head;
00652 fl->head = curr;
00653 }
|
|
|
Definition at line 499 of file Voronoi.cc. References nvertices, out_vertex(), and fastjet::Site::sitenbr. Referenced by voronoi().
00500 {
00501 v->sitenbr = nvertices;
00502 nvertices += 1;
00503 out_vertex(v);
00504 }
|
|
|
Definition at line 724 of file Voronoi.cc. References total_alloc. Referenced by ELinitialize(), generateVoronoi(), getfree(), and PQinitialize().
00725 {
00726 char *t=0;
00727 t=(char*)malloc(n);
00728 total_alloc += n;
00729 return(t);
00730 }
|
|
|
Definition at line 1046 of file Voronoi.cc. References nsites, siteidx, and sites. Referenced by voronoi().
|
|
|
Definition at line 735 of file Voronoi.cc. Referenced by plotinit().
00735 {}
|
|
|
Definition at line 741 of file Voronoi.cc.
00742 {
00743
00744
00745 }
|
|
|
Definition at line 748 of file Voronoi.cc.
00749 {
00750
00751
00752 }
|
|
|
Definition at line 760 of file Voronoi.cc. References circle(), fastjet::Site::coord, cradius, debug, plot, triangulate, fastjet::Point::x, and fastjet::Point::y. Referenced by voronoi().
00761 {
00762 if(!triangulate & plot & !debug)
00763 circle (s->coord.x, s->coord.y, cradius);
00764
00765 }
|
|
||||||||||||||||
|
Definition at line 768 of file Voronoi.cc. Referenced by voronoi().
00769 {
00770
00771 }
|
|
|
Definition at line 754 of file Voronoi.cc. Referenced by makevertex().
00755 {
00756
00757 }
|
|
|
Definition at line 775 of file Voronoi.cc. References cradius, openpl(), pxmax, pxmin, pymax, pymin, range(), xmax, xmin, ymax, and ymin.
00776 {
00777 double dx,dy,d;
00778
00779 dy = ymax - ymin;
00780 dx = xmax - xmin;
00781 d = (double)(( dx > dy ? dx : dy) * 1.1);
00782 pxmin = (double)(xmin - (d-dx)/2.0);
00783 pxmax = (double)(xmax + (d-dx)/2.0);
00784 pymin = (double)(ymin - (d-dy)/2.0);
00785 pymax = (double)(ymax + (d-dy)/2.0);
00786 cradius = (double)((pxmax - pxmin)/350.0);
00787 openpl();
00788 range(pxmin, pymin, pxmax, pymax);
00789 }
|
|
|
Definition at line 576 of file Voronoi.cc. References PQhash, PQmin, fastjet::Point::x, and fastjet::Point::y. Referenced by voronoi().
|
|
|
Definition at line 557 of file Voronoi.cc. References deltay, PQhashsize, PQmin, ymin, and fastjet::Halfedge::ystar. Referenced by PQdelete(), and PQinsert().
00558 {
00559 int bucket;
00560
00561 bucket = (int)((he->ystar - ymin)/deltay * PQhashsize);
00562 if (bucket<0) bucket = 0;
00563 if (bucket>=PQhashsize) bucket = PQhashsize-1 ;
00564 if (bucket < PQmin) PQmin = bucket;
00565 return(bucket);
00566 }
|
|
|
Definition at line 540 of file Voronoi.cc. References deref(), PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex. Referenced by voronoi().
00541 {
00542 Halfedge *last;
00543
00544 if(he->vertex != (Site *) NULL)
00545 {
00546 last = &PQhash[PQbucket(he)];
00547 while (last->PQnext != he)
00548 last = last->PQnext;
00549
00550 last->PQnext = he->PQnext;
00551 PQcount -= 1;
00552 deref(he->vertex);
00553 he->vertex = (Site *) NULL;
00554 };
00555 }
|
|
|
Definition at line 570 of file Voronoi.cc. References PQcount. Referenced by voronoi().
00571 {
00572 return(PQcount==0);
00573 }
|
|
|
Definition at line 586 of file Voronoi.cc. References PQcount, PQhash, PQmin, and fastjet::Halfedge::PQnext. Referenced by voronoi().
|
|
|
|
|
|
Definition at line 597 of file Voronoi.cc. References myalloc(), PQcount, PQhash, PQhashsize, PQmin, fastjet::Halfedge::PQnext, and sqrt_nsites. Referenced by voronoi().
00598 {
00599 int i;
00600
00601 PQcount = 0;
00602 PQmin = 0;
00603 PQhashsize = 4 * sqrt_nsites;
00604 //PQhash = (Halfedge *) myalloc(PQhashsize * sizeof *PQhash);
00605 PQhash = (Halfedge *) myalloc(PQhashsize * sizeof(Halfedge));
00606
00607 if(PQhash == 0)
00608 return false;
00609
00610 for(i=0; i<PQhashsize; i+=1) PQhash[i].PQnext = (Halfedge *)NULL;
00611
00612 return true;
00613 }
|
|
||||||||||||||||
|
Definition at line 520 of file Voronoi.cc. References fastjet::Site::coord, PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, ref(), fastjet::Halfedge::vertex, fastjet::Point::x, fastjet::Point::y, and fastjet::Halfedge::ystar. Referenced by voronoi().
00521 {
00522 Halfedge *last, *next;
00523
00524 he->vertex = v;
00525 ref(v);
00526 he->ystar = (double)(v->coord.y + offset);
00527 last = &PQhash[PQbucket(he)];
00528 while ((next = last->PQnext) != (Halfedge *) NULL &&
00529 (he->ystar > next->ystar ||
00530 (he->ystar == next->ystar && v->coord.x > next->vertex->coord.x)))
00531 {
00532 last = next;
00533 };
00534 he->PQnext = last->PQnext;
00535 last->PQnext = he;
00536 PQcount += 1;
00537 }
|
|
||||||||||||||||||||||||||||
|
Definition at line 708 of file Voronoi.cc. References allEdges, fastjet::GraphEdge::next, fastjet::Site::sitenbr, and fastjet::GraphEdge::x1. Referenced by clip_line().
|
|
||||||||||||||||||||
|
Definition at line 737 of file Voronoi.cc. Referenced by plotinit().
00737 {}
|
|
|
Definition at line 514 of file Voronoi.cc. References fastjet::Site::refcnt. Referenced by bisect(), endpoint(), and PQinsert().
00515 {
00516 v->refcnt += 1;
00517 }
|
|
|
Definition at line 203 of file Voronoi.hh.
00203 {
00204 iteratorEdges = allEdges;
00205 }
|
|
||||||||||||
|
Definition at line 431 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y. Referenced by ELleftbnd().
00432 {
00433 Edge *e;
00434 Site *topsite;
00435 int right_of_site, above, fast;
00436 double dxp, dyp, dxs, t1, t2, t3, yl;
00437
00438 e = el->ELedge;
00439 topsite = e->reg[1];
00440 right_of_site = p->x > topsite->coord.x;
00441 if(right_of_site && el->ELpm == le) return(1);
00442 if(!right_of_site && el->ELpm == re) return (0);
00443
00444 if (e->a == 1.0)
00445 { dyp = p->y - topsite->coord.y;
00446 dxp = p->x - topsite->coord.x;
00447 fast = 0;
00448 if ((!right_of_site & (e->b<0.0)) | (right_of_site & (e->b>=0.0)) )
00449 { above = dyp>= e->b*dxp;
00450 fast = above;
00451 }
00452 else
00453 { above = p->x + p->y*e->b > e-> c;
00454 if(e->b<0.0) above = !above;
00455 if (!above) fast = 1;
00456 };
00457 if (!fast)
00458 { dxs = topsite->coord.x - (e->reg[0])->coord.x;
00459 above = e->b * (dxp*dxp - dyp*dyp) <
00460 dxs*dyp*(1.0+2.0*dxp/dxs + e->b*e->b);
00461 if(e->b<0.0) above = !above;
00462 };
00463 }
00464 else /*e->b==1.0 */
00465 { yl = e->c - e->a*p->x;
00466 t1 = p->y - yl;
00467 t2 = p->x - topsite->coord.x;
00468 t3 = yl - topsite->coord.y;
00469 above = t1*t1 > t2*t2 + t3*t3;
00470 };
00471 return (el->ELpm==le ? above : !above);
00472 }
|
|
|
Definition at line 310 of file Voronoi.cc. References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg. Referenced by voronoi().
00310 {
00311 if (he->ELedge == (Edge*) NULL)
00312 // if this halfedge has no edge, return the bottom site (whatever
00313 // that is)
00314 return bottomsite;
00315
00316 // if the ELpm field is zero, return the site 0 that this edge
00317 // bisects, otherwise return site number 1
00318 return (he->ELpm == le)
00319 ? he->ELedge->reg[re]
00320 : he->ELedge->reg[le];
00321 }
|
|
|
Definition at line 913 of file Voronoi.cc. References bisect(), bottomsite, clip_line(), fastjet::Site::coord, deref(), dist(), ELdelete(), fastjet::Halfedge::ELedge, ELinitialize(), ELinsert(), ELleft(), ELleftbnd(), ELleftend, fastjet::Halfedge::ELpm, ELright(), ELrightend, endpoint(), HEcreate(), intersect(), le, leftreg(), makevertex(), nextone(), out_site(), out_triple(), PQ_min(), PQdelete(), PQempty(), PQextractmin(), PQinitialize(), PQinsert(), re, rightreg(), fastjet::Halfedge::vertex, fastjet::Point::x, and fastjet::Point::y. Referenced by generateVoronoi().
00914 {
00915 Site *newsite, *bot, *top, *temp, *p;
00916 Site *v;
00917 Point newintstar;
00918 int pm;
00919 Halfedge *lbnd, *rbnd, *llbnd, *rrbnd, *bisector;
00920 Edge *e;
00921
00922 PQinitialize();
00923 bottomsite = nextone();
00924 out_site(bottomsite);
00925 bool retval = ELinitialize();
00926
00927 if(!retval)
00928 return false;
00929
00930 newsite = nextone();
00931 while(1)
00932 {
00933
00934 if(!PQempty())
00935 newintstar = PQ_min();
00936
00937 //if the lowest site has a smaller y value than the lowest vector intersection, process the site
00938 //otherwise process the vector intersection
00939
00940 if (newsite != (Site *)NULL && (PQempty() || newsite->coord.y < newintstar.y
00941 || (newsite->coord.y == newintstar.y && newsite->coord.x < newintstar.x)))
00942 {/* new site is smallest - this is a site event*/
00943 out_site(newsite); //output the site
00944 lbnd = ELleftbnd(&(newsite->coord)); //get the first HalfEdge to the LEFT of the new site
00945 rbnd = ELright(lbnd); //get the first HalfEdge to the RIGHT of the new site
00946 bot = rightreg(lbnd); //if this halfedge has no edge, , bot = bottom site (whatever that is)
00947 e = bisect(bot, newsite); //create a new edge that bisects
00948 bisector = HEcreate(e, le); //create a new HalfEdge, setting its ELpm field to 0
00949 ELinsert(lbnd, bisector); //insert this new bisector edge between the left and right vectors in a linked list
00950
00951 if ((p = intersect(lbnd, bisector)) != (Site *) NULL) //if the new bisector intersects with the left edge, remove the left edge's vertex, and put in the new one
00952 {
00953 PQdelete(lbnd);
00954 PQinsert(lbnd, p, dist(p,newsite));
00955 };
00956 lbnd = bisector;
00957 bisector = HEcreate(e, re); //create a new HalfEdge, setting its ELpm field to 1
00958 ELinsert(lbnd, bisector); //insert the new HE to the right of the original bisector earlier in the IF stmt
00959
00960 if ((p = intersect(bisector, rbnd)) != (Site *) NULL) //if this new bisector intersects with the
00961 {
00962 PQinsert(bisector, p, dist(p,newsite)); //push the HE into the ordered linked list of vertices
00963 };
00964 newsite = nextone();
00965 }
00966 else if (!PQempty()) /* intersection is smallest - this is a vector event */
00967 {
00968 lbnd = PQextractmin(); //pop the HalfEdge with the lowest vector off the ordered list of vectors
00969 llbnd = ELleft(lbnd); //get the HalfEdge to the left of the above HE
00970 rbnd = ELright(lbnd); //get the HalfEdge to the right of the above HE
00971 rrbnd = ELright(rbnd); //get the HalfEdge to the right of the HE to the right of the lowest HE
00972 bot = leftreg(lbnd); //get the Site to the left of the left HE which it bisects
00973 top = rightreg(rbnd); //get the Site to the right of the right HE which it bisects
00974
00975 out_triple(bot, top, rightreg(lbnd)); //output the triple of sites, stating that a circle goes through them
00976
00977 v = lbnd->vertex; //get the vertex that caused this event
00978 makevertex(v); //set the vertex number - couldn't do this earlier since we didn't know when it would be processed
00979 endpoint(lbnd->ELedge,lbnd->ELpm,v); //set the endpoint of the left HalfEdge to be this vector
00980 endpoint(rbnd->ELedge,rbnd->ELpm,v); //set the endpoint of the right HalfEdge to be this vector
00981 ELdelete(lbnd); //mark the lowest HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00982 PQdelete(rbnd); //remove all vertex events to do with the right HE
00983 ELdelete(rbnd); //mark the right HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00984 pm = le; //set the pm variable to zero
00985
00986 if (bot->coord.y > top->coord.y) //if the site to the left of the event is higher than the Site
00987 { //to the right of it, then swap them and set the 'pm' variable to 1
00988 temp = bot;
00989 bot = top;
00990 top = temp;
00991 pm = re;
00992 }
00993 e = bisect(bot, top); //create an Edge (or line) that is between the two Sites. This creates
00994 //the formula of the line, and assigns a line number to it
00995 bisector = HEcreate(e, pm); //create a HE from the Edge 'e', and make it point to that edge with its ELedge field
00996 ELinsert(llbnd, bisector); //insert the new bisector to the right of the left HE
00997 endpoint(e, re-pm, v); //set one endpoint to the new edge to be the vector point 'v'.
00998 //If the site to the left of this bisector is higher than the right
00999 //Site, then this endpoint is put in position 0; otherwise in pos 1
01000 deref(v); //delete the vector 'v'
01001
01002 //if left HE and the new bisector don't intersect, then delete the left HE, and reinsert it
01003 if((p = intersect(llbnd, bisector)) != (Site *) NULL)
01004 {
01005 PQdelete(llbnd);
01006 PQinsert(llbnd, p, dist(p,bot));
01007 };
01008
01009 //if right HE and the new bisector don't intersect, then reinsert it
01010 if ((p = intersect(bisector, rrbnd)) != (Site *) NULL)
01011 {
01012 PQinsert(bisector, p, dist(p,bot));
01013 };
01014 }
01015 else break;
01016 };
01017
01018
01019
01020
01021 for(lbnd=ELright(ELleftend); lbnd != ELrightend; lbnd=ELright(lbnd))
01022 {
01023 e = lbnd->ELedge;
01024
01025 clip_line(e);
01026 };
01027
01028 //cleanup();
01029
01030 return true;
01031
01032 }
|
|
|
Definition at line 309 of file Voronoi.hh. Referenced by cleanupEdges(), pushGraphEdge(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 306 of file Voronoi.hh. Referenced by cleanup(), VoronoiDiagramGenerator(), and ~VoronoiDiagramGenerator(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 291 of file Voronoi.hh. Referenced by leftreg(), rightreg(), and voronoi(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by out_site(), and plotinit(). |
|
|
Definition at line 307 of file Voronoi.hh. Referenced by cleanup(), getfree(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(), and out_site(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by ELleftbnd(), and geominit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by geominit(), and PQbucket(). |
|
|
Definition at line 294 of file Voronoi.hh. Referenced by bisect(), endpoint(), and geominit(). |
|
|
Definition at line 226 of file Voronoi.hh. Referenced by cleanup(), ELgethash(), ELinitialize(), ELleftbnd(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 280 of file Voronoi.hh. Referenced by ELgethash(), ELinitialize(), and ELleftbnd(). |
|
|
Definition at line 279 of file Voronoi.hh. Referenced by ELinitialize(), ELleftbnd(), and voronoi(). |
|
|
Definition at line 279 of file Voronoi.hh. Referenced by ELinitialize(), ELleftbnd(), and voronoi(). |
|
|
Definition at line 278 of file Voronoi.hh. Referenced by ELgethash(), ELinitialize(), and HEcreate(). |
|
|
Definition at line 310 of file Voronoi.hh. Referenced by VoronoiDiagramGenerator(). |
|
|
Definition at line 312 of file Voronoi.hh. Referenced by generateVoronoi(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 217 of file Voronoi.hh. Referenced by generateVoronoi(). |
|
|
Definition at line 293 of file Voronoi.hh. Referenced by bisect(), and geominit(). |
|
|
Definition at line 286 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), and nextone(). |
|
|
Definition at line 300 of file Voronoi.hh. Referenced by ELleftbnd(). |
|
|
Definition at line 289 of file Voronoi.hh. Referenced by geominit(), and makevertex(). |
|
|
Definition at line 216 of file Voronoi.hh. Referenced by generateVoronoi(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(), and out_site(). |
|
|
Definition at line 297 of file Voronoi.hh. Referenced by PQdelete(), PQempty(), PQextractmin(), PQinitialize(), and PQinsert(). |
|
|
Definition at line 296 of file Voronoi.hh. Referenced by cleanup(), PQ_min(), PQdelete(), PQextractmin(), PQinitialize(), PQinsert(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 295 of file Voronoi.hh. Referenced by PQbucket(), and PQinitialize(). |
|
|
Definition at line 298 of file Voronoi.hh. Referenced by PQ_min(), PQbucket(), PQextractmin(), and PQinitialize(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 290 of file Voronoi.hh. Referenced by deref(), generateVoronoi(), and intersect(). |
|
|
Definition at line 287 of file Voronoi.hh. Referenced by generateVoronoi(), nextone(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 285 of file Voronoi.hh. Referenced by cleanup(), generateVoronoi(), nextone(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(). |
|
|
Definition at line 288 of file Voronoi.hh. Referenced by ELinitialize(), geominit(), getfree(), and PQinitialize(). |
|
|
Definition at line 302 of file Voronoi.hh. Referenced by myalloc(). |
|
|
Definition at line 300 of file Voronoi.hh. Referenced by ELleftbnd(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(), and out_site(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), and plotinit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by ELleftbnd(), generateVoronoi(), geominit(), and plotinit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), and plotinit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), plotinit(), and PQbucket(). |
1.3.4
