fastjet::ClusterSequenceArea Class Reference

General class for user to obtain ClusterSequence with additional area information. More...

#include <ClusterSequenceArea.hh>

Inheritance diagram for fastjet::ClusterSequenceArea:

Inheritance graph
fastjet::ClusterSequenceAreaBasefastjet::ClusterSequence
[legend]

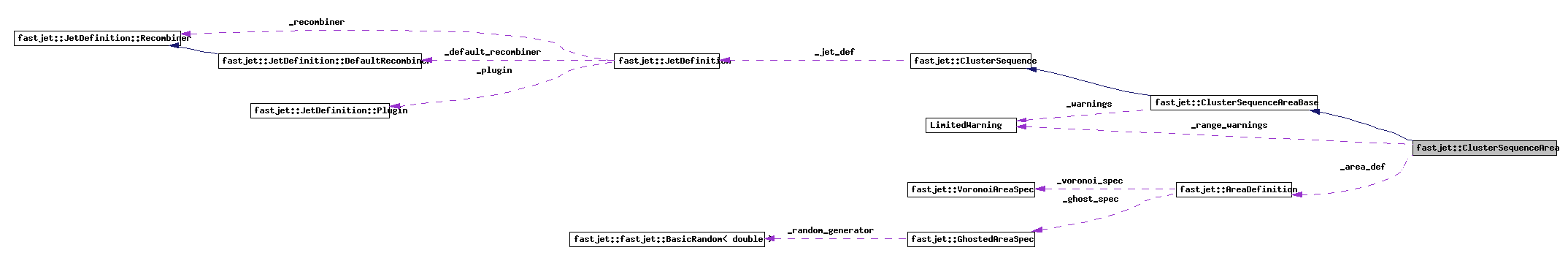

Collaboration diagram for fastjet::ClusterSequenceArea:

Collaboration graph
fastjet::ClusterSequenceAreaBasefastjet::ClusterSequencefastjet::JetDefinitionfastjet::JetDefinition::DefaultRecombinerfastjet::JetDefinition::Recombinerfastjet::JetDefinition::PluginLimitedWarningfastjet::AreaDefinitionfastjet::VoronoiAreaSpecfastjet::GhostedAreaSpecfastjet::fastjet::BasicRandom\< double \>
[legend]

List of all members.

Public Member Functions

template<class L>
 ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const AreaDefinition &area_def_in)
 main constructor
template<class L>
 ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec &area_spec)
 constructor with a GhostedAreaSpec
template<class L>
 ClusterSequenceArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const VoronoiAreaSpec &area_spec)
 constructor with a VoronoiAreaSpec
const AreaDefinition & area_def () const
 return a reference to the area definition
virtual double area (const PseudoJet &jet) const
 return the area associated with the given jet
virtual double area_error (const PseudoJet &jet) const
 return the error (uncertainty) associated with the determination of the area of this jet
virtual PseudoJet area_4vector (const PseudoJet &jet) const
 return the 4-vector area
virtual double empty_area (const RangeDefinition &range) const
 return the total area, in the given rap-phi range, that is free of jets
virtual double n_empty_jets (const RangeDefinition &range) const
 return something similar to the number of pure ghost jets in the given rap-phi range in an active area case.
virtual bool is_pure_ghost (const PseudoJet &jet) const
 true if a jet is made exclusively of ghosts
virtual void get_median_rho_and_sigma (const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma, double &mean_area) const
 overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.
virtual void get_median_rho_and_sigma (const RangeDefinition &range, bool use_area_4vector, double &median, double &sigma) const
 overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the 5-argument version above, we have to override the 4-argument version too.
virtual void parabolic_pt_per_unit_area (double &a, double &b, const RangeDefinition &range, double exclude_above=-1.0, bool use_area_4vector=false) const
 overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Private Member Functions

void _warn_if_range_unsuitable (const RangeDefinition &range) const
 print a warning if the range is unsuitable for the current calculation of the area (e.g.
template<class L>
void initialize_and_run_cswa (const std::vector< L > &pseudojets, const JetDefinition &jet_def)

Private Attributes

std::auto_ptr
< ClusterSequenceAreaBase > 		_area_base
AreaDefinition _area_def

Static Private Attributes

static LimitedWarning _range_warnings

Detailed Description

General class for user to obtain ClusterSequence with additional area information.

Based on the area_def, it automatically dispatches the work to the appropriate actual ClusterSequenceAreaBase-derived-class to do the real work.

Definition at line 49 of file ClusterSequenceArea.hh.

Constructor & Destructor Documentation

template<class L>
fastjet::ClusterSequenceArea::ClusterSequenceArea ( const std::vector< L > &  pseudojets,
const JetDefinition &  jet_def,
const AreaDefinition &  area_def_in
) [inline]

main constructor

Definition at line 53 of file ClusterSequenceArea.hh.

00055                                                : _area_def(area_def_in) {
00056     initialize_and_run_cswa(pseudojets, jet_def);
00057   }

template<class L>
fastjet::ClusterSequenceArea::ClusterSequenceArea ( const std::vector< L > &  pseudojets,
const JetDefinition &  jet_def,
const GhostedAreaSpec &  area_spec
) [inline]

constructor with a GhostedAreaSpec

Definition at line 61 of file ClusterSequenceArea.hh.

00063                                                : _area_def(area_spec){
00064     initialize_and_run_cswa(pseudojets, jet_def);
00065   }

template<class L>
fastjet::ClusterSequenceArea::ClusterSequenceArea ( const std::vector< L > &  pseudojets,
const JetDefinition &  jet_def,
const VoronoiAreaSpec &  area_spec
) [inline]

constructor with a VoronoiAreaSpec

Definition at line 69 of file ClusterSequenceArea.hh.

00071                                                : _area_def(area_spec){
00072     initialize_and_run_cswa(pseudojets, jet_def);
00073   }

Member Function Documentation

const AreaDefinition& fastjet::ClusterSequenceArea::area_def (  )  const [inline]

return a reference to the area definition

Definition at line 76 of file ClusterSequenceArea.hh.

00076 {return _area_def;}

virtual double fastjet::ClusterSequenceArea::area ( const PseudoJet &  jet  )  const [inline, virtual]

return the area associated with the given jet

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 80 of file ClusterSequenceArea.hh.

00080                                                           {
00081     return _area_base->area(jet);}

virtual double fastjet::ClusterSequenceArea::area_error ( const PseudoJet &  jet  )  const [inline, virtual]

return the error (uncertainty) associated with the determination of the area of this jet

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 85 of file ClusterSequenceArea.hh.

00085                                                           {
00086     return _area_base->area_error(jet);}

virtual PseudoJet fastjet::ClusterSequenceArea::area_4vector ( const PseudoJet &  jet  )  const [inline, virtual]

return the 4-vector area

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 89 of file ClusterSequenceArea.hh.

00089                                                               {
00090     return _area_base->area_4vector(jet);}

virtual double fastjet::ClusterSequenceArea::empty_area ( const RangeDefinition &  range  )  const [inline, virtual]

return the total area, in the given rap-phi range, that is free of jets

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 105 of file ClusterSequenceArea.hh.

00105                                                                  {
00106     return _area_base->empty_area(range);}

virtual double fastjet::ClusterSequenceArea::n_empty_jets ( const RangeDefinition &  range  )  const [inline, virtual]

return something similar to the number of pure ghost jets in the given rap-phi range in an active area case.

For the local implementation we return empty_area/(0.55 pi R^2), based on measured properties of ghost jets with kt and cam. Note that the number returned is a double.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 113 of file ClusterSequenceArea.hh.

00113                                                                    {
00114     return _area_base->n_empty_jets(range);
00115   }

virtual bool fastjet::ClusterSequenceArea::is_pure_ghost ( const PseudoJet &  jet  )  const [inline, virtual]

true if a jet is made exclusively of ghosts

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 118 of file ClusterSequenceArea.hh.

00118                                                           {
00119     return _area_base->is_pure_ghost(jet);
00120   }

virtual void fastjet::ClusterSequenceArea::get_median_rho_and_sigma ( const RangeDefinition &  range,
bool  use_area_4vector,
double &  median,
double &  sigma,
double &  mean_area
) const [inline, virtual]

overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 125 of file ClusterSequenceArea.hh.

00128                                                                   {
00129     _warn_if_range_unsuitable(range);
00130     ClusterSequenceAreaBase::get_median_rho_and_sigma(range, use_area_4vector,
00131                                                       median, sigma, mean_area);
00132   }

virtual void fastjet::ClusterSequenceArea::get_median_rho_and_sigma ( const RangeDefinition &  range,
bool  use_area_4vector,
double &  median,
double &  sigma
) const [inline, virtual]

overload version of what's in the ClusterSequenceAreaBase class, which actually just does the same thing as the base version (but since we've overridden the 5-argument version above, we have to override the 4-argument version too.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 138 of file ClusterSequenceArea.hh.

00140                                                                                {
00141     ClusterSequenceAreaBase::get_median_rho_and_sigma(range,use_area_4vector,
00142                                                       median,sigma);
00143   }

virtual void fastjet::ClusterSequenceArea::parabolic_pt_per_unit_area ( double &  a,
double &  b,
const RangeDefinition &  range,
double  exclude_above = -1.0,
bool  use_area_4vector = false
) const [inline, virtual]

overload version of what's in the ClusterSequenceAreaBase class, which additionally checks compatibility between "range" and region in which ghosts are thrown.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 149 of file ClusterSequenceArea.hh.

00152                                                                              {
00153     _warn_if_range_unsuitable(range);
00154     ClusterSequenceAreaBase::parabolic_pt_per_unit_area(
00155                                 a,b,range, exclude_above, use_area_4vector);
00156   }

void fastjet::ClusterSequenceArea::_warn_if_range_unsuitable ( const RangeDefinition &  range  )  const [private]

print a warning if the range is unsuitable for the current calculation of the area (e.g.

print a warning if the range is unsuitable for the current calculation of the area (e.g.

because ghosts do not extend far enough).

because ghosts do not extend far enough).

Definition at line 10 of file ClusterSequenceArea.cc.

References _area_def, _range_warnings, fastjet::AreaDefinition::area_type(), fastjet::RangeDefinition::get_rap_limits(), fastjet::GhostedAreaSpec::ghost_maxrap(), fastjet::AreaDefinition::ghost_spec(), fastjet::JetDefinition::jet_algorithm(), fastjet::ClusterSequence::jet_def(), fastjet::kt_algorithm, fastjet::passive_area, fastjet::JetDefinition::R(), fastjet::voronoi_area, and LimitedWarning::warn().

00010                                                                                        {
00011   bool no_ghosts = (_area_def.area_type() == voronoi_area)
00012     || (_area_def.area_type() == passive_area
00013         && jet_def().jet_algorithm() == kt_algorithm);
00014   if (! no_ghosts) {
00015     double rapmin, rapmax;
00016     range.get_rap_limits(rapmin, rapmax);
00017     if (rapmin < -_area_def.ghost_spec().ghost_maxrap()+0.95*jet_def().R() ||
00018         rapmax >  _area_def.ghost_spec().ghost_maxrap()-0.95*jet_def().R()) {
00019       _range_warnings.warn("rapidity range for median (rho) extends beyond +-(ghost_maxrap - 0.95*R); this is likely to cause the results to be unreliable; safest option is to increase ghost_maxrap in the area definition");
00020     }
00021   }
00022 }

template<class L>
void fastjet::ClusterSequenceArea::initialize_and_run_cswa ( const std::vector< L > &  pseudojets,
const JetDefinition &  jet_def
) [inline, private]

Definition at line 177 of file ClusterSequenceArea.hh.

References _area_base, _area_def, fastjet::active_area, fastjet::active_area_explicit_ghosts, fastjet::AreaDefinition::area_type(), fastjet::AreaDefinition::ghost_spec(), fastjet::one_ghost_passive_area, fastjet::passive_area, fastjet::ClusterSequence::transfer_from_sequence(), fastjet::voronoi_area, and fastjet::AreaDefinition::voronoi_spec().

00180  {
00181
00182   ClusterSequenceAreaBase * _area_base_ptr;
00183   switch(_area_def.area_type()) {
00184   case active_area:
00185     _area_base_ptr = new ClusterSequenceActiveArea(pseudojets,
00186                                                    jet_def,
00187                                                    _area_def.ghost_spec());
00188     break;
00189   case active_area_explicit_ghosts:
00190     _area_base_ptr = new ClusterSequenceActiveAreaExplicitGhosts(pseudojets,
00191                                                    jet_def,
00192                                                    _area_def.ghost_spec());
00193     break;
00194   case voronoi_area:
00195     _area_base_ptr = new ClusterSequenceVoronoiArea(pseudojets,
00196                                                    jet_def,
00197                                                    _area_def.voronoi_spec());
00198     break;
00199   case one_ghost_passive_area:
00200     _area_base_ptr = new ClusterSequence1GhostPassiveArea(pseudojets,
00201                                                     jet_def,
00202                                                     _area_def.ghost_spec());
00203     break;
00204   case passive_area:
00205     _area_base_ptr = new ClusterSequencePassiveArea(pseudojets,
00206                                                     jet_def,
00207                                                     _area_def.ghost_spec());
00208     break;
00209   default:
00210     std::cerr << "Error: unrecognized area_type in ClusterSequenceArea:"
00211               << _area_def.area_type() << std::endl;
00212     exit(-1);
00213   }
00214   // now copy across the information from the area base class
00215   _area_base = std::auto_ptr<ClusterSequenceAreaBase>(_area_base_ptr);
00216   transfer_from_sequence(*_area_base);
00217 }

Member Data Documentation

std::auto_ptr<ClusterSequenceAreaBase> fastjet::ClusterSequenceArea::_area_base [private]

Definition at line 170 of file ClusterSequenceArea.hh.

Referenced by initialize_and_run_cswa().

AreaDefinition fastjet::ClusterSequenceArea::_area_def [private]

Definition at line 171 of file ClusterSequenceArea.hh.

Referenced by _warn_if_range_unsuitable(), and initialize_and_run_cswa().

LimitedWarning fastjet::ClusterSequenceArea::_range_warnings [static, private]

Definition at line 172 of file ClusterSequenceArea.hh.

Referenced by _warn_if_range_unsuitable().

The documentation for this class was generated from the following files:
Generated on Thu Apr 3 16:17:59 2008 for fastjet by  doxygen 1.5.5
