fastjet::VoronoiDiagramGenerator Class Reference

#include <Voronoi.hh>

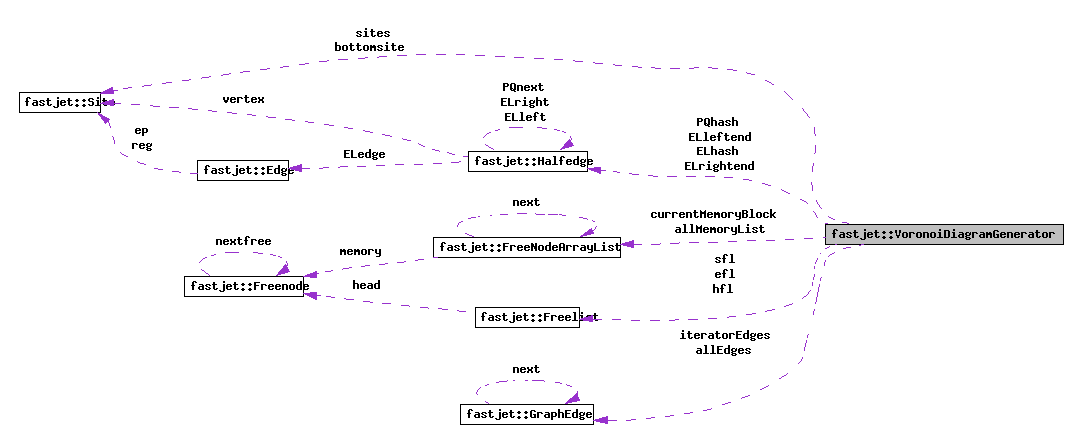

Collaboration diagram for fastjet::VoronoiDiagramGenerator:

List of all members.

Public Member Functions

VoronoiDiagramGenerator ()

~VoronoiDiagramGenerator ()

bool generateVoronoi (std::vector< Point > *_parent_sites, double minX, double maxX, double minY, double maxY, double minDist=0)

void resetIterator ()

bool getNext (GraphEdge **e)

Public Attributes

std::vector< Point > * parent_sites

int n_parent_sites

Private Member Functions

void cleanup ()

void cleanupEdges ()

char * getfree (Freelist *fl)

Halfedge * PQfind ()

int PQempty ()

Halfedge * HEcreate ()

Halfedge ** ELleft ()

Halfedge *** ELright ()

Halfedge **** ELleftbnd ()

Halfedge * HEcreate (Edge *e, int pm)

Point PQ_min ()

Halfedge * PQextractmin ()

void freeinit (Freelist *fl, int size)

void makefree (Freenode *curr, Freelist *fl)

void geominit ()

void plotinit ()

bool voronoi (int triangulate)

void ref (Site *v)

void deref (Site *v)

void endpoint (Edge *e, int lr, Site *s)

void ELdelete (Halfedge *he)

Halfedge * ELleftbnd (Point *p)

Halfedge * ELright (Halfedge *he)

void makevertex (Site *v)

void out_triple (Site *s1, Site *s2, Site *s3)

void PQinsert (Halfedge *he, Site *v, double offset)

void PQdelete (Halfedge *he)

bool ELinitialize ()

void ELinsert (Halfedge *lb, Halfedge *newHe)

Halfedge * ELgethash (int b)

Halfedge * ELleft (Halfedge *he)

Site * leftreg (Halfedge *he)

void out_site (Site *s)

bool PQinitialize ()

int PQbucket (Halfedge *he)

void clip_line (Edge *e)

char * myalloc (unsigned n)

int right_of (Halfedge *el, Point *p)

Site * rightreg (Halfedge *he)

Edge * bisect (Site *s1, Site *s2)

double dist (Site *s, Site *t)

Site * intersect (Halfedge *el1, Halfedge *el2, Point *p=0)

void out_bisector (Edge *e)

void out_ep (Edge *e)

void out_vertex (Site *v)

Site * nextone ()

void pushGraphEdge (double x1, double y1, double x2, double y2, Site *s1, Site *s2)

void openpl ()

void circle (double x, double y, double radius)

void range (double minX, double minY, double maxX, double maxY)

Private Attributes

Halfedge ** ELhash

Freelist hfl

Halfedge * ELleftend

Halfedge * ELrightend

int ELhashsize

int triangulate

int sorted

int plot

int debug

double xmin

double xmax

double ymin

double ymax

double deltax

double deltay

Site * sites

int nsites

int siteidx

int sqrt_nsites

int nvertices

Freelist sfl

Site * bottomsite

int nedges

Freelist efl

int PQhashsize

Halfedge * PQhash

int PQcount

int PQmin

int ntry

int totalsearch

double pxmin

double pxmax

double pymin

double pymax

double cradius

int total_alloc

double borderMinX

double borderMaxX

double borderMinY

double borderMaxY

FreeNodeArrayList * allMemoryList

FreeNodeArrayList * currentMemoryBlock

GraphEdge * allEdges

GraphEdge * iteratorEdges

double minDistanceBetweenSites

Detailed Description

Definition at line 194 of file Voronoi.hh.

Constructor & Destructor Documentation

fastjet::VoronoiDiagramGenerator::VoronoiDiagramGenerator ( )

Definition at line 64 of file Voronoi.cc.

References allEdges, allMemoryList, currentMemoryBlock, ELhash, iteratorEdges, fastjet::FreeNodeArrayList::memory, minDistanceBetweenSites, fastjet::FreeNodeArrayList::next, parent_sites, PQhash, siteidx, and sites.

00064                                                 {
00065   siteidx = 0;
00066   sites = NULL;
00067   parent_sites = NULL;
00068
00069   allMemoryList = new FreeNodeArrayList;
00070   allMemoryList->memory = NULL;
00071   allMemoryList->next = NULL;
00072   currentMemoryBlock = allMemoryList;
00073   allEdges = NULL;
00074   iteratorEdges = 0;
00075   minDistanceBetweenSites = 0;
00076
00077   ELhash = NULL;
00078   PQhash = NULL;
00079 }

fastjet::VoronoiDiagramGenerator::~VoronoiDiagramGenerator ( )

Definition at line 81 of file Voronoi.cc.

References allMemoryList, cleanup(), and cleanupEdges().

00081                                                  {
00082   cleanup();
00083   cleanupEdges();
00084
00085   if (allMemoryList != NULL)
00086     delete allMemoryList;
00087 }

Member Function Documentation

bool fastjet::VoronoiDiagramGenerator::generateVoronoi	(	std::vector< Point > *	_parent_sites,
		double	minX,
		double	maxX,
		double	minY,
		double	maxY,
		double	minDist = `0`
	)

Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc().

void fastjet::VoronoiDiagramGenerator::resetIterator ( ) [inline]

Definition at line 203 of file Voronoi.hh.

Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc().

00203                              {
00204     iteratorEdges = allEdges;
00205   }

bool fastjet::VoronoiDiagramGenerator::getNext ( GraphEdge ** e ) [inline]

Definition at line 207 of file Voronoi.hh.

References fastjet::GraphEdge::next.

Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc().

00207                              {
00208     if(iteratorEdges == 0)
00209       return false;
00210
00211     *e = iteratorEdges;
00212     iteratorEdges = iteratorEdges->next;
00213     return true;
00214   }

void fastjet::VoronoiDiagramGenerator::cleanup ( ) [private]

Definition at line 660 of file Voronoi.cc.

References allMemoryList, currentMemoryBlock, ELhash, fastjet::FreeNodeArrayList::memory, fastjet::FreeNodeArrayList::next, PQhash, and sites.

Referenced by ~VoronoiDiagramGenerator().

00661 {
00662   if(sites != NULL){
00663     free(sites);
00664     sites = 0;
00665   }
00666
00667   FreeNodeArrayList* current=NULL, *prev=NULL;
00668
00669   current = prev = allMemoryList;
00670
00671   while(current->next!=NULL){
00672     prev = current;
00673     current = current->next;
00674     free(prev->memory);
00675     delete prev;
00676     prev = NULL;
00677   }
00678
00679   if(current!=NULL){
00680     if (current->memory!=NULL){
00681       free(current->memory);
00682     }
00683     delete current;
00684   }
00685
00686   allMemoryList = new FreeNodeArrayList;
00687   allMemoryList->next = NULL;
00688   allMemoryList->memory = NULL;
00689   currentMemoryBlock = allMemoryList;
00690
00691   if (ELhash!=NULL)
00692     free(ELhash);
00693
00694   if (PQhash!=NULL)
00695     free(PQhash);
00696 }

void fastjet::VoronoiDiagramGenerator::cleanupEdges ( ) [private]

Definition at line 698 of file Voronoi.cc.

References allEdges, and fastjet::GraphEdge::next.

Referenced by ~VoronoiDiagramGenerator().

00699 {
00700   GraphEdge* geCurrent = NULL, *gePrev = NULL;
00701   geCurrent = gePrev = allEdges;
00702
00703   while(geCurrent!=NULL){
00704     gePrev = geCurrent;
00705     geCurrent = geCurrent->next;
00706     delete gePrev;
00707   }
00708
00709   allEdges = 0;
00710
00711 }

char * fastjet::VoronoiDiagramGenerator::getfree ( Freelist * fl ) [private]

Definition at line 627 of file Voronoi.cc.

References currentMemoryBlock, fastjet::Freelist::head, makefree(), fastjet::FreeNodeArrayList::memory, myalloc(), fastjet::FreeNodeArrayList::next, fastjet::Freelist::nodesize, and sqrt_nsites.

Referenced by bisect(), HEcreate(), and intersect().

00628 {
00629   int i;
00630   Freenode *t;
00631
00632   if(fl->head == (Freenode *) NULL)
00633     {
00634       t =  (Freenode *) myalloc(sqrt_nsites * fl->nodesize);
00635
00636       if(t == 0)
00637         return 0;
00638
00639       currentMemoryBlock->next = new FreeNodeArrayList;
00640       currentMemoryBlock = currentMemoryBlock->next;
00641       currentMemoryBlock->memory = t;
00642       currentMemoryBlock->next = 0;
00643
00644       for(i=0; i<sqrt_nsites; i+=1)
00645         makefree((Freenode *)((char *)t+i*fl->nodesize), fl);
00646     };
00647   t = fl->head;
00648   fl->head = (fl->head)->nextfree;
00649   return((char *)t);
00650 }

Halfedge* fastjet::VoronoiDiagramGenerator::PQfind ( ) [private]

int fastjet::VoronoiDiagramGenerator::PQempty ( ) [private]

Definition at line 575 of file Voronoi.cc.

References PQcount.

Referenced by voronoi().

00576 {
00577   return(PQcount==0);
00578 }

Halfedge* fastjet::VoronoiDiagramGenerator::HEcreate ( ) [private]

Referenced by ELinitialize(), and voronoi().

Halfedge* * fastjet::VoronoiDiagramGenerator::ELleft ( ) [private]

Referenced by ELinsert(), and voronoi().

Halfedge* * * fastjet::VoronoiDiagramGenerator::ELright ( ) [private]

Referenced by ELdelete(), and voronoi().

Halfedge* * * * fastjet::VoronoiDiagramGenerator::ELleftbnd ( ) [private]

Referenced by voronoi().

Halfedge * fastjet::VoronoiDiagramGenerator::HEcreate	(	Edge *	e,
		int	pm
	)			`[private]`

Definition at line 190 of file Voronoi.cc.

References fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, fastjet::Halfedge::ELrefcnt, getfree(), hfl, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex.

00190                                                          {
00191   Halfedge *answer;
00192   answer = (Halfedge*) getfree(&hfl);
00193   answer->ELedge = e;
00194   answer->ELpm = pm;
00195   answer->PQnext = (Halfedge*) NULL;
00196   answer->vertex = (Site*) NULL;
00197   answer->ELrefcnt = 0;
00198   return answer;
00199 }

Point fastjet::VoronoiDiagramGenerator::PQ_min ( ) [private]

Definition at line 581 of file Voronoi.cc.

References fastjet::Site::coord, PQhash, PQmin, fastjet::Halfedge::PQnext, fastjet::Halfedge::vertex, fastjet::Point::x, fastjet::Point::y, and fastjet::Halfedge::ystar.

Referenced by voronoi().

00582 {
00583   Point answer;
00584
00585   while(PQhash[PQmin].PQnext == (Halfedge *)NULL) {PQmin += 1;};
00586   answer.x = PQhash[PQmin].PQnext->vertex->coord.x;
00587   answer.y = PQhash[PQmin].PQnext->ystar;
00588   return (answer);
00589 }

Halfedge * fastjet::VoronoiDiagramGenerator::PQextractmin ( ) [private]

Definition at line 591 of file Voronoi.cc.

References PQcount, PQhash, PQmin, and fastjet::Halfedge::PQnext.

Referenced by voronoi().

00592 {
00593   Halfedge *curr;
00594
00595   curr = PQhash[PQmin].PQnext;
00596   PQhash[PQmin].PQnext = curr->PQnext;
00597   PQcount -= 1;
00598   return(curr);
00599 }

void fastjet::VoronoiDiagramGenerator::freeinit	(	Freelist *	fl,
		int	size
	)			`[private]`

Definition at line 621 of file Voronoi.cc.

References fastjet::Freelist::head, and fastjet::Freelist::nodesize.

Referenced by ELinitialize(), and geominit().

00622 {
00623   fl->head = (Freenode *) NULL;
00624   fl->nodesize = size;
00625 }

void fastjet::VoronoiDiagramGenerator::makefree	(	Freenode *	curr,
		Freelist *	fl
	)			`[private]`

Definition at line 654 of file Voronoi.cc.

References fastjet::Freelist::head, and fastjet::Freenode::nextfree.

Referenced by deref(), ELgethash(), endpoint(), and getfree().

00655 {
00656   curr->nextfree = fl->head;
00657   fl->head = curr;
00658 }

void fastjet::VoronoiDiagramGenerator::geominit ( ) [private]

Definition at line 325 of file Voronoi.cc.

References deltax, deltay, efl, freeinit(), nedges, nvertices, sqrt_nsites, xmax, xmin, ymax, and ymin.

00325                                       {
00326   double sn;
00327
00328   freeinit(&efl, sizeof(Edge));
00329   nvertices = 0;
00330   nedges = 0;
00331   sn = (double)nsites+4;
00332   sqrt_nsites = (int)sqrt(sn);
00333   deltay = ymax - ymin;
00334   deltax = xmax - xmin;
00335 }

void fastjet::VoronoiDiagramGenerator::plotinit ( ) [private]

Definition at line 780 of file Voronoi.cc.

References cradius, openpl(), pxmax, pxmin, pymax, pymin, range(), xmax, xmin, ymax, and ymin.

00781 {
00782   double dx,dy,d;
00783
00784   dy = ymax - ymin;
00785   dx = xmax - xmin;
00786   d = (double)(( dx > dy ? dx : dy) * 1.1);
00787   pxmin = (double)(xmin - (d-dx)/2.0);
00788   pxmax = (double)(xmax + (d-dx)/2.0);
00789   pymin = (double)(ymin - (d-dy)/2.0);
00790   pymax = (double)(ymax + (d-dy)/2.0);
00791   cradius = (double)((pxmax - pxmin)/350.0);
00792   openpl();
00793   range(pxmin, pymin, pxmax, pymax);
00794 }

bool fastjet::VoronoiDiagramGenerator::voronoi ( int triangulate ) [private]

Definition at line 918 of file Voronoi.cc.

References bisect(), bottomsite, clip_line(), fastjet::Site::coord, deref(), dist(), ELdelete(), fastjet::Halfedge::ELedge, ELinitialize(), ELinsert(), ELleft(), ELleftbnd(), ELleftend, fastjet::Halfedge::ELpm, ELright(), ELrightend, endpoint(), HEcreate(), intersect(), le, leftreg(), makevertex(), nextone(), out_site(), out_triple(), PQ_min(), PQdelete(), PQempty(), PQextractmin(), PQinitialize(), PQinsert(), re, rightreg(), fastjet::Halfedge::vertex, fastjet::Point::x, and fastjet::Point::y.

00919 {
00920   Site *newsite, *bot, *top, *temp, *p;
00921   Site *v;
00922   Point newintstar;
00923   int pm;
00924   Halfedge *lbnd, *rbnd, *llbnd, *rrbnd, *bisector;
00925   Edge *e;
00926
00927   PQinitialize();
00928   bottomsite = nextone();
00929   out_site(bottomsite);
00930   bool retval = ELinitialize();
00931
00932   if(!retval)
00933     return false;
00934
00935   newsite = nextone();
00936   while(1)
00937     {
00938
00939       if(!PQempty())
00940         newintstar = PQ_min();
00941
00942       //if the lowest site has a smaller y value than the lowest vector intersection, process the site
00943       //otherwise process the vector intersection
00944       if (newsite != (Site *)NULL){
00945         volatile double local_newsite_coord_y = newsite->coord.y;
00946         volatile double local_newintstar_y = newintstar.y;
00947         if (PQempty() ||  local_newsite_coord_y < local_newintstar_y
00948             || ( local_newsite_coord_y == local_newintstar_y && newsite->coord.x < newintstar.x))
00949           {/* new site is smallest - this is a site event*/
00950             out_site(newsite);                                          //output the site
00951             lbnd = ELleftbnd(&(newsite->coord));                                //get the first HalfEdge to the LEFT of the new site
00952             rbnd = ELright(lbnd);                                               //get the first HalfEdge to the RIGHT of the new site
00953             bot = rightreg(lbnd);                                               //if this halfedge has no edge, , bot = bottom site (whatever that is)
00954             e = bisect(bot, newsite);                                   //create a new edge that bisects
00955             bisector = HEcreate(e, le);                                 //create a new HalfEdge, setting its ELpm field to 0
00956             ELinsert(lbnd, bisector);                                   //insert this new bisector edge between the left and right vectors in a linked list
00957
00958             if ((p = intersect(lbnd, bisector)) != (Site *) NULL)       //if the new bisector intersects with the left edge, remove the left edge's vertex, and put in the new one
00959               {
00960                 PQdelete(lbnd);
00961                 PQinsert(lbnd, p, dist(p,newsite));
00962               };
00963             lbnd = bisector;
00964             bisector = HEcreate(e, re);                                 //create a new HalfEdge, setting its ELpm field to 1
00965             ELinsert(lbnd, bisector);                                   //insert the new HE to the right of the original bisector earlier in the IF stmt
00966
00967             if ((p = intersect(bisector, rbnd)) != (Site *) NULL)       //if this new bisector intersects with the
00968               {
00969                 PQinsert(bisector, p, dist(p,newsite));                 //push the HE into the ordered linked list of vertices
00970               };
00971             newsite = nextone();
00972           }
00973         else if (!PQempty()) /* intersection is smallest - this is a vector event */
00974           {
00975             lbnd = PQextractmin();                                              //pop the HalfEdge with the lowest vector off the ordered list of vectors
00976             llbnd = ELleft(lbnd);                                               //get the HalfEdge to the left of the above HE
00977             rbnd = ELright(lbnd);                                               //get the HalfEdge to the right of the above HE
00978             rrbnd = ELright(rbnd);                                              //get the HalfEdge to the right of the HE to the right of the lowest HE
00979             bot = leftreg(lbnd);                                                //get the Site to the left of the left HE which it bisects
00980             top = rightreg(rbnd);                                               //get the Site to the right of the right HE which it bisects
00981
00982             out_triple(bot, top, rightreg(lbnd));               //output the triple of sites, stating that a circle goes through them
00983
00984             v = lbnd->vertex;                                           //get the vertex that caused this event
00985             makevertex(v);                                                      //set the vertex number - couldn't do this earlier since we didn't know when it would be processed
00986             endpoint(lbnd->ELedge,lbnd->ELpm,v);        //set the endpoint of the left HalfEdge to be this vector
00987             endpoint(rbnd->ELedge,rbnd->ELpm,v);        //set the endpoint of the right HalfEdge to be this vector
00988             ELdelete(lbnd);                                                     //mark the lowest HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00989             PQdelete(rbnd);                                                     //remove all vertex events to do with the  right HE
00990             ELdelete(rbnd);                                                     //mark the right HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00991             pm = le;                                                            //set the pm variable to zero
00992
00993             if (bot->coord.y > top->coord.y)            //if the site to the left of the event is higher than the Site
00994               {                                                                         //to the right of it, then swap them and set the 'pm' variable to 1
00995                 temp = bot;
00996                 bot = top;
00997                 top = temp;
00998                 pm = re;
00999               }
01000             e = bisect(bot, top);                                       //create an Edge (or line) that is between the two Sites. This creates
01001             //the formula of the line, and assigns a line number to it
01002             bisector = HEcreate(e, pm);                         //create a HE from the Edge 'e', and make it point to that edge with its ELedge field
01003             ELinsert(llbnd, bisector);                          //insert the new bisector to the right of the left HE
01004             endpoint(e, re-pm, v);                                      //set one endpoint to the new edge to be the vector point 'v'.
01005             //If the site to the left of this bisector is higher than the right
01006             //Site, then this endpoint is put in position 0; otherwise in pos 1
01007             deref(v);                                                           //delete the vector 'v'
01008
01009             //if left HE and the new bisector don't intersect, then delete the left HE, and reinsert it
01010             if((p = intersect(llbnd, bisector)) != (Site *) NULL)
01011               {
01012                 PQdelete(llbnd);
01013                 PQinsert(llbnd, p, dist(p,bot));
01014               };
01015
01016             //if right HE and the new bisector don't intersect, then reinsert it
01017             if ((p = intersect(bisector, rrbnd)) != (Site *) NULL)
01018               {
01019                 PQinsert(bisector, p, dist(p,bot));
01020               };
01021           }
01022       } else break;
01023     };
01024
01025
01026
01027
01028   for(lbnd=ELright(ELleftend); lbnd != ELrightend; lbnd=ELright(lbnd))
01029     {
01030       e = lbnd->ELedge;
01031
01032       clip_line(e);
01033     };
01034
01035   //cleanup();
01036
01037   return true;
01038
01039 }

void fastjet::VoronoiDiagramGenerator::ref ( Site * v ) [private]

Definition at line 519 of file Voronoi.cc.

References fastjet::Site::refcnt.

Referenced by bisect(), endpoint(), and PQinsert().

00520 {
00521   v->refcnt += 1;
00522 }

void fastjet::VoronoiDiagramGenerator::deref ( Site * v ) [private]

Definition at line 512 of file Voronoi.cc.

References makefree(), fastjet::Site::refcnt, and sfl.

Referenced by endpoint(), PQdelete(), and voronoi().

00513 {
00514   v->refcnt -= 1;
00515   if (v->refcnt == 0 )
00516     makefree((Freenode*)v, &sfl);
00517 }

void fastjet::VoronoiDiagramGenerator::endpoint	(	Edge *	e,
		int	lr,
		Site *	s
	)			`[private]`

Definition at line 480 of file Voronoi.cc.

References clip_line(), deref(), efl, fastjet::Edge::ep, le, makefree(), re, ref(), and fastjet::Edge::reg.

Referenced by voronoi().

00481 {
00482   e->ep[lr] = s;
00483   ref(s);
00484   if(e->ep[re-lr]== (Site *) NULL)
00485     return;
00486
00487   clip_line(e);
00488
00489   deref(e->reg[le]);
00490   deref(e->reg[re]);
00491   makefree((Freenode*)e, &efl);
00492 }

void fastjet::VoronoiDiagramGenerator::ELdelete ( Halfedge * he ) [private]

Definition at line 287 of file Voronoi.cc.

References DELETED, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELleft, fastjet::Halfedge::ELright, and ELright().

Referenced by voronoi().

00287                                                   {
00288   (he->ELleft)->ELright = he->ELright;
00289   (he->ELright)->ELleft = he->ELleft;
00290   he->ELedge = (Edge*) DELETED;
00291 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELleftbnd ( Point * p ) [private]

Definition at line 229 of file Voronoi.cc.

References deltax, ELgethash(), ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELrefcnt, fastjet::Halfedge::ELright, ELrightend, ntry, right_of(), totalsearch, fastjet::Point::x, and xmin.

00229                                                      {
00230   int i, bucket;
00231   Halfedge *he;
00232
00233   /* Use hash table to get close to desired halfedge */
00234   // use the hash function to find the place in the hash map that this
00235   // HalfEdge should be
00236   bucket = (int)((p->x - xmin)/deltax * ELhashsize);
00237
00238   // make sure that the bucket position in within the range of the
00239   //hash array
00240   if (bucket<0) bucket =0;
00241   if (bucket>=ELhashsize) bucket = ELhashsize - 1;
00242
00243   he = ELgethash(bucket);
00244
00245   // if the HE isn't found, search backwards and forwards in the hash
00246   // map for the first non-null entry
00247   if (he == (Halfedge*) NULL){
00248     for(i=1;1;i++){
00249       if ((he=ELgethash(bucket-i)) != (Halfedge*) NULL)
00250         break;
00251       if ((he=ELgethash(bucket+i)) != (Halfedge*) NULL)
00252         break;
00253     };
00254     totalsearch += i;
00255   };
00256   ntry += 1;
00257   /* Now search linear list of halfedges for the correct one */
00258   if ((he==ELleftend)  || (he != ELrightend && right_of(he,p))){
00259     do{
00260       he = he->ELright;
00261     } while (he!=ELrightend && right_of(he,p));
00262       // keep going right on the list until either the end is reached,
00263       // or you find the 1st edge which the point
00264       he = he->ELleft;  //isn't to the right of
00265   } else
00266     // if the point is to the left of the HalfEdge, then search left
00267     // for the HE just to the left of the point
00268     do{
00269       he = he->ELleft;
00270     } while ((he!=ELleftend )&& (!right_of(he,p)));
00271
00272   /* Update hash table and reference counts */
00273   if ((bucket > 0) && (bucket <ELhashsize-1)){
00274     if(ELhash[bucket] != (Halfedge *) NULL){
00275       ELhash[bucket]->ELrefcnt -= 1;
00276     }
00277     ELhash[bucket] = he;
00278     ELhash[bucket]->ELrefcnt += 1;
00279   };
00280
00281   return he;
00282 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELright ( Halfedge * he ) [private]

Definition at line 294 of file Voronoi.cc.

References fastjet::Halfedge::ELright.

00294                                                       {
00295   return he->ELright;
00296 }

void fastjet::VoronoiDiagramGenerator::makevertex ( Site * v ) [private]

Definition at line 504 of file Voronoi.cc.

References nvertices, out_vertex(), and fastjet::Site::sitenbr.

Referenced by voronoi().

00505 {
00506   v->sitenbr = nvertices;
00507   nvertices += 1;
00508   out_vertex(v);
00509 }

void fastjet::VoronoiDiagramGenerator::out_triple	(	Site *	s1,
		Site *	s2,
		Site *	s3
	)			`[private]`

Definition at line 773 of file Voronoi.cc.

Referenced by voronoi().

00774 {
00775
00776 }

void fastjet::VoronoiDiagramGenerator::PQinsert	(	Halfedge *	he,
		Site *	v,
		double	offset
	)			`[private]`

Definition at line 525 of file Voronoi.cc.

References fastjet::Site::coord, PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, ref(), fastjet::Halfedge::vertex, fastjet::Point::x, fastjet::Point::y, and fastjet::Halfedge::ystar.

Referenced by voronoi().

00526 {
00527   Halfedge *last, *next;
00528
00529   he->vertex = v;
00530   ref(v);
00531   he->ystar = (double)(v->coord.y + offset);
00532   last = &PQhash[PQbucket(he)];
00533   while ((next = last->PQnext) != (Halfedge *) NULL &&
00534          (he->ystar  > next->ystar  ||
00535           (he->ystar == next->ystar && v->coord.x > next->vertex->coord.x)))
00536     {
00537       last = next;
00538     };
00539   he->PQnext = last->PQnext;
00540   last->PQnext = he;
00541   PQcount += 1;
00542 }

void fastjet::VoronoiDiagramGenerator::PQdelete ( Halfedge * he ) [private]

Definition at line 545 of file Voronoi.cc.

References deref(), PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex.

Referenced by voronoi().

00546 {
00547   Halfedge *last;
00548
00549   if(he->vertex != (Site *) NULL)
00550     {
00551       last = &PQhash[PQbucket(he)];
00552       while (last->PQnext != he)
00553         last = last->PQnext;
00554
00555       last->PQnext = he->PQnext;
00556       PQcount -= 1;
00557       deref(he->vertex);
00558       he->vertex = (Site *) NULL;
00559     };
00560 }

bool fastjet::VoronoiDiagramGenerator::ELinitialize ( ) [private]

Definition at line 166 of file Voronoi.cc.

References ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELright, ELrightend, freeinit(), HEcreate(), hfl, myalloc(), and sqrt_nsites.

Referenced by voronoi().

00166                                           {
00167   int i;
00168   freeinit(&hfl, sizeof(Halfedge));
00169   ELhashsize = 2 * sqrt_nsites;
00170   //ELhash = (Halfedge **) myalloc ( sizeof *ELhash * ELhashsize);
00171   ELhash = (Halfedge **) myalloc ( sizeof(Halfedge*)*ELhashsize);
00172
00173   if(ELhash == 0)
00174     return false;
00175
00176   for(i=0; i<ELhashsize; i +=1) ELhash[i] = (Halfedge *)NULL;
00177   ELleftend = HEcreate((Edge*) NULL, 0);
00178   ELrightend = HEcreate((Edge*) NULL, 0);
00179   ELleftend->ELleft = (Halfedge*) NULL;
00180   ELleftend->ELright = ELrightend;
00181   ELrightend->ELleft = ELleftend;
00182   ELrightend->ELright = (Halfedge*) NULL;
00183   ELhash[0] = ELleftend;
00184   ELhash[ELhashsize-1] = ELrightend;
00185
00186   return true;
00187 }

void fastjet::VoronoiDiagramGenerator::ELinsert	(	Halfedge *	lb,
		Halfedge *	newHe
	)			`[private]`

Definition at line 202 of file Voronoi.cc.

References ELleft(), fastjet::Halfedge::ELleft, and fastjet::Halfedge::ELright.

Referenced by voronoi().

00203 {
00204   newHe->ELleft = lb;
00205   newHe->ELright = lb->ELright;
00206   (lb->ELright)->ELleft = newHe;
00207   lb->ELright = newHe;
00208 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELgethash ( int b ) [private]

Definition at line 212 of file Voronoi.cc.

References DELETED, fastjet::Halfedge::ELedge, ELhash, ELhashsize, fastjet::Halfedge::ELrefcnt, hfl, and makefree().

Referenced by ELleftbnd().

00212                                                  {
00213   Halfedge *he;
00214
00215   if ((b<0) || (b>=ELhashsize))
00216     return (Halfedge *) NULL;
00217
00218   he = ELhash[b];
00219   if ((he==(Halfedge*) NULL) || (he->ELedge!=(Edge*) DELETED))
00220     return he;
00221
00222   /* Hash table points to deleted half edge.  Patch as necessary. */
00223   ELhash[b] = (Halfedge*) NULL;
00224   if ((he->ELrefcnt -= 1) == 0)
00225     makefree((Freenode*)he, &hfl);
00226   return (Halfedge*) NULL;
00227 }

Halfedge * fastjet::VoronoiDiagramGenerator::ELleft ( Halfedge * he ) [private]

Definition at line 299 of file Voronoi.cc.

References fastjet::Halfedge::ELleft.

00299                                                      {
00300   return he->ELleft;
00301 }

Site * fastjet::VoronoiDiagramGenerator::leftreg ( Halfedge * he ) [private]

Definition at line 304 of file Voronoi.cc.

References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg.

Referenced by voronoi().

00304                                                    {
00305   if (he->ELedge == (Edge*) NULL)
00306     return(bottomsite);
00307   return (he->ELpm == le)
00308     ? he->ELedge->reg[le]
00309     : he->ELedge->reg[re];
00310 }

void fastjet::VoronoiDiagramGenerator::out_site ( Site * s ) [private]

Definition at line 765 of file Voronoi.cc.

References circle(), fastjet::Site::coord, cradius, debug, plot, triangulate, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00766 {
00767   if(!triangulate & plot & !debug)
00768     circle (s->coord.x, s->coord.y, cradius);
00769
00770 }

bool fastjet::VoronoiDiagramGenerator::PQinitialize ( ) [private]

Definition at line 602 of file Voronoi.cc.

References myalloc(), PQcount, PQhash, PQhashsize, PQmin, and sqrt_nsites.

Referenced by voronoi().

00603 {
00604   int i;
00605
00606   PQcount = 0;
00607   PQmin = 0;
00608   PQhashsize = 4 * sqrt_nsites;
00609   //PQhash = (Halfedge *) myalloc(PQhashsize * sizeof *PQhash);
00610   PQhash = (Halfedge *) myalloc(PQhashsize * sizeof(Halfedge));
00611
00612   if(PQhash == 0)
00613     return false;
00614
00615   for(i=0; i<PQhashsize; i+=1) PQhash[i].PQnext = (Halfedge *)NULL;
00616
00617   return true;
00618 }

int fastjet::VoronoiDiagramGenerator::PQbucket ( Halfedge * he ) [private]

Definition at line 562 of file Voronoi.cc.

References deltay, PQhashsize, PQmin, ymin, and fastjet::Halfedge::ystar.

Referenced by PQdelete(), and PQinsert().

00563 {
00564   int bucket;
00565
00566   bucket = (int)((he->ystar - ymin)/deltay * PQhashsize);
00567   if (bucket<0) bucket = 0;
00568   if (bucket>=PQhashsize) bucket = PQhashsize-1 ;
00569   if (bucket < PQmin) PQmin = bucket;
00570   return(bucket);
00571 }

void fastjet::VoronoiDiagramGenerator::clip_line ( Edge * e ) [private]

Definition at line 797 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, borderMaxX, borderMaxY, borderMinX, borderMinY, fastjet::Edge::c, fastjet::Site::coord, fastjet::Edge::ep, pushGraphEdge(), pxmax, pxmin, pymax, pymin, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y.

Referenced by endpoint(), and voronoi().

00798 {
00799   Site *s1, *s2;
00800   double x1=0,x2=0,y1=0,y2=0; //, temp = 0;
00801
00802   x1 = e->reg[0]->coord.x;
00803   x2 = e->reg[1]->coord.x;
00804   y1 = e->reg[0]->coord.y;
00805   y2 = e->reg[1]->coord.y;
00806
00807   //if the distance between the two points this line was created from is less than
00808   //the square root of 2, then ignore it
00809   //TODO improve/remove
00810   //if(sqrt(((x2 - x1) * (x2 - x1)) + ((y2 - y1) * (y2 - y1))) < minDistanceBetweenSites)
00811   //  {
00812   //    return;
00813   //  }
00814   pxmin = borderMinX;
00815   pxmax = borderMaxX;
00816   pymin = borderMinY;
00817   pymax = borderMaxY;
00818
00819   if(e->a == 1.0 && e ->b >= 0.0)
00820     {
00821       s1 = e->ep[1];
00822       s2 = e->ep[0];
00823     }
00824   else
00825     {
00826       s1 = e->ep[0];
00827       s2 = e->ep[1];
00828     };
00829
00830   if(e->a == 1.0)
00831     {
00832       y1 = pymin;
00833       if (s1!=(Site *)NULL && s1->coord.y > pymin)
00834         {
00835           y1 = s1->coord.y;
00836         }
00837       if(y1>pymax)
00838         {
00839           //    printf("\nClipped (1) y1 = %f to %f",y1,pymax);
00840           y1 = pymax;
00841           //return;
00842         }
00843       x1 = e->c - e->b * y1;
00844       y2 = pymax;
00845       if (s2!=(Site *)NULL && s2->coord.y < pymax)
00846         y2 = s2->coord.y;
00847
00848       if(y2<pymin)
00849         {
00850           //printf("\nClipped (2) y2 = %f to %f",y2,pymin);
00851           y2 = pymin;
00852           //return;
00853         }
00854       x2 = (e->c) - (e->b) * y2;
00855       if (((x1> pxmax) & (x2>pxmax)) | ((x1<pxmin)&(x2<pxmin)))
00856         {
00857           //printf("\nClipLine jumping out(3), x1 = %f, pxmin = %f, pxmax = %f",x1,pxmin,pxmax);
00858           return;
00859         }
00860       if(x1> pxmax)
00861         {       x1 = pxmax; y1 = (e->c - x1)/e->b;};
00862       if(x1<pxmin)
00863         {       x1 = pxmin; y1 = (e->c - x1)/e->b;};
00864       if(x2>pxmax)
00865         {       x2 = pxmax; y2 = (e->c - x2)/e->b;};
00866       if(x2<pxmin)
00867         {       x2 = pxmin; y2 = (e->c - x2)/e->b;};
00868     }
00869   else
00870     {
00871       x1 = pxmin;
00872       if (s1!=(Site *)NULL && s1->coord.x > pxmin)
00873         x1 = s1->coord.x;
00874       if(x1>pxmax)
00875         {
00876           //printf("\nClipped (3) x1 = %f to %f",x1,pxmin);
00877           //return;
00878           x1 = pxmax;
00879         }
00880       y1 = e->c - e->a * x1;
00881       x2 = pxmax;
00882       if (s2!=(Site *)NULL && s2->coord.x < pxmax)
00883         x2 = s2->coord.x;
00884       if(x2<pxmin)
00885         {
00886           //printf("\nClipped (4) x2 = %f to %f",x2,pxmin);
00887           //return;
00888           x2 = pxmin;
00889         }
00890       y2 = e->c - e->a * x2;
00891       if (((y1> pymax) & (y2>pymax)) | ((y1<pymin)&(y2<pymin)))
00892         {
00893           //printf("\nClipLine jumping out(6), y1 = %f, pymin = %f, pymax = %f",y2,pymin,pymax);
00894           return;
00895         }
00896       if(y1> pymax)
00897         {       y1 = pymax; x1 = (e->c - y1)/e->a;};
00898       if(y1<pymin)
00899         {       y1 = pymin; x1 = (e->c - y1)/e->a;};
00900       if(y2>pymax)
00901         {       y2 = pymax; x2 = (e->c - y2)/e->a;};
00902       if(y2<pymin)
00903         {       y2 = pymin; x2 = (e->c - y2)/e->a;};
00904     };
00905
00906   //printf("\nPushing line (%f,%f,%f,%f)",x1,y1,x2,y2);
00907   //fprintf(stdout, "Line with vertices (%f,%f) and (%f,%f)\n",
00908   //    e->reg[0]->coord.x, e->reg[1]->coord.x, e->reg[0]->coord.y, e->reg[1]->coord.y);
00909   pushGraphEdge(x1,y1,x2,y2,e->reg[0],e->reg[1]);
00910 }

char * fastjet::VoronoiDiagramGenerator::myalloc ( unsigned n ) [private]

Definition at line 729 of file Voronoi.cc.

References total_alloc.

Referenced by ELinitialize(), getfree(), and PQinitialize().

00730 {
00731   char *t=0;
00732   t=(char*)malloc(n);
00733   total_alloc += n;
00734   return(t);
00735 }

int fastjet::VoronoiDiagramGenerator::right_of	(	Halfedge *	el,
		Point *	p
	)			`[private]`

Definition at line 436 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y.

Referenced by ELleftbnd().

00437 {
00438   Edge *e;
00439   Site *topsite;
00440   int right_of_site, above, fast;
00441   double dxp, dyp, dxs, t1, t2, t3, yl;
00442
00443   e = el->ELedge;
00444   topsite = e->reg[1];
00445   right_of_site = p->x > topsite->coord.x;
00446   if(right_of_site && el->ELpm == le) return(1);
00447   if(!right_of_site && el->ELpm == re) return (0);
00448
00449   if (e->a == 1.0)
00450     {   dyp = p->y - topsite->coord.y;
00451     dxp = p->x - topsite->coord.x;
00452     fast = 0;
00453     if ((!right_of_site & (e->b<0.0)) | (right_of_site & (e->b>=0.0)) )
00454       { above = dyp>= e->b*dxp;
00455       fast = above;
00456       }
00457     else
00458       { above = p->x + p->y*e->b > e-> c;
00459       if(e->b<0.0) above = !above;
00460       if (!above) fast = 1;
00461       };
00462     if (!fast)
00463       { dxs = topsite->coord.x - (e->reg[0])->coord.x;
00464       above = e->b * (dxp*dxp - dyp*dyp) <
00465         dxs*dyp*(1.0+2.0*dxp/dxs + e->b*e->b);
00466       if(e->b<0.0) above = !above;
00467       };
00468     }
00469   else  /*e->b==1.0 */
00470     {   yl = e->c - e->a*p->x;
00471     t1 = p->y - yl;
00472     t2 = p->x - topsite->coord.x;
00473     t3 = yl - topsite->coord.y;
00474     above = t1*t1 > t2*t2 + t3*t3;
00475     };
00476   return (el->ELpm==le ? above : !above);
00477 }

Site * fastjet::VoronoiDiagramGenerator::rightreg ( Halfedge * he ) [private]

Definition at line 312 of file Voronoi.cc.

References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg.

Referenced by voronoi().

00312                                                     {
00313   if (he->ELedge == (Edge*) NULL)
00314     // if this halfedge has no edge, return the bottom site (whatever
00315     // that is)
00316     return bottomsite;
00317
00318   // if the ELpm field is zero, return the site 0 that this edge
00319   // bisects, otherwise return site number 1
00320   return (he->ELpm == le)
00321     ? he->ELedge->reg[re]
00322     : he->ELedge->reg[le];
00323 }

Edge * fastjet::VoronoiDiagramGenerator::bisect	(	Site *	s1,
		Site *	s2
	)			`[private]`

Definition at line 338 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Edge::edgenbr, efl, fastjet::Edge::ep, getfree(), nedges, ref(), fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00338                                                         {
00339   double dx,dy,adx,ady;
00340   Edge *newedge;
00341
00342   newedge = (Edge*) getfree(&efl);
00343
00344   newedge->reg[0] = s1; //store the sites that this edge is bisecting
00345   newedge->reg[1] = s2;
00346   ref(s1);
00347   ref(s2);
00348
00349   // to begin with, there are no endpoints on the bisector - it goes
00350   // to infinity
00351   newedge->ep[0] = (Site*) NULL;
00352   newedge->ep[1] = (Site*) NULL;
00353
00354   // get the difference in x dist between the sites
00355   dx = s2->coord.x - s1->coord.x;
00356   dy = s2->coord.y - s1->coord.y;
00357
00358   // make sure that the difference is positive
00359   adx = dx>0 ? dx : -dx;
00360   ady = dy>0 ? dy : -dy;
00361
00362   // get the slope of the line
00363   newedge->c = (double)(s1->coord.x * dx + s1->coord.y * dy
00364                         + (dx*dx + dy*dy)*0.5);
00365
00366   if (adx>ady){
00367     //set formula of line, with x fixed to 1
00368     newedge->a = 1.0; newedge->b = dy/dx; newedge->c /= dx;
00369   } else {
00370     //set formula of line, with y fixed to 1
00371     newedge->b = 1.0; newedge->a = dx/dy; newedge->c /= dy;
00372   }
00373
00374   newedge->edgenbr = nedges;
00375   nedges++;
00376
00377   return newedge;
00378 }

double fastjet::VoronoiDiagramGenerator::dist	(	Site *	s,
		Site *	t
	)			`[private]`

Definition at line 495 of file Voronoi.cc.

References fastjet::Site::coord, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00496 {
00497   double dx,dy;
00498   dx = s->coord.x - t->coord.x;
00499   dy = s->coord.y - t->coord.y;
00500   return (double)(sqrt(dx*dx + dy*dy));
00501 }

Site * fastjet::VoronoiDiagramGenerator::intersect	(	Halfedge *	el1,
		Halfedge *	el2,
		Point *	p = `0`
	)			`[private]`

Definition at line 384 of file Voronoi.cc.

References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Site::coord, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, getfree(), le, re, fastjet::Site::refcnt, fastjet::Edge::reg, sfl, fastjet::Point::x, and fastjet::Point::y.

Referenced by voronoi().

00384                                                                               {
00385   Edge *e1,*e2, *e;
00386   Halfedge *el;
00387   double d, xint, yint;
00388   int right_of_site;
00389   Site *v;
00390
00391   e1 = el1->ELedge;
00392   e2 = el2->ELedge;
00393   if ((e1==(Edge*)NULL) || (e2==(Edge*)NULL))
00394     return ((Site*) NULL);
00395
00396   // if the two edges bisect the same parent, return null
00397   if (e1->reg[1] == e2->reg[1])
00398     return (Site*) NULL;
00399
00400   d = e1->a * e2->b - e1->b * e2->a;
00401   if (-1.0e-10<d && d<1.0e-10)
00402     return (Site*) NULL;
00403
00404   xint = (e1->c*e2->b - e2->c*e1->b)/d;
00405   yint = (e2->c*e1->a - e1->c*e2->a)/d;
00406
00407   volatile double local_y1 = e1->reg[1]->coord.y;
00408   volatile double local_y2 = e2->reg[1]->coord.y;
00409
00410   if( (local_y1 < local_y2) ||
00411       ((local_y1 == local_y2) &&
00412        (e1->reg[1]->coord.x <  e2->reg[1]->coord.x)) ){
00413     el = el1;
00414     e = e1;
00415   } else {
00416     el = el2;
00417     e = e2;
00418   }
00419
00420   right_of_site = xint >= e->reg[1]->coord.x;
00421   if ((right_of_site && el->ELpm == le) || (!right_of_site && el->ELpm == re))
00422     return (Site*) NULL;
00423
00424   // create a new site at the point of intersection - this is a new
00425   // vector event waiting to happen
00426   v = (Site*) getfree(&sfl);
00427   v->refcnt = 0;
00428   v->coord.x = xint;
00429   v->coord.y = yint;
00430   return v;
00431 }

void fastjet::VoronoiDiagramGenerator::out_bisector ( Edge * e ) [private]

Definition at line 746 of file Voronoi.cc.

void fastjet::VoronoiDiagramGenerator::out_ep ( Edge * e ) [private]

Definition at line 753 of file Voronoi.cc.

void fastjet::VoronoiDiagramGenerator::out_vertex ( Site * v ) [private]

Definition at line 759 of file Voronoi.cc.

Referenced by makevertex().

00760 {
00761
00762 }

Site * fastjet::VoronoiDiagramGenerator::nextone ( ) [private]

Definition at line 1053 of file Voronoi.cc.

References siteidx, and sites.

Referenced by voronoi().

01054 {
01055   Site *s;
01056   if(siteidx < nsites)
01057     {
01058       s = &sites[siteidx];
01059       siteidx += 1;
01060       return(s);
01061     }
01062   else
01063     return( (Site *)NULL);
01064 }

void fastjet::VoronoiDiagramGenerator::pushGraphEdge	(	double	x1,
		double	y1,
		double	x2,
		double	y2,
		Site *	s1,
		Site *	s2
	)			`[private]`

Definition at line 713 of file Voronoi.cc.

References allEdges, fastjet::GraphEdge::next, fastjet::GraphEdge::point1, fastjet::GraphEdge::point2, fastjet::Site::sitenbr, fastjet::GraphEdge::x1, fastjet::GraphEdge::x2, fastjet::GraphEdge::y1, and fastjet::GraphEdge::y2.

Referenced by clip_line().

00715 {
00716   GraphEdge* newEdge = new GraphEdge;
00717   newEdge->next = allEdges;
00718   allEdges = newEdge;
00719   newEdge->x1 = x1;
00720   newEdge->y1 = y1;
00721   newEdge->x2 = x2;
00722   newEdge->y2 = y2;
00723
00724   newEdge->point1 = s1->sitenbr;
00725   newEdge->point2 = s2->sitenbr;
00726 }

void fastjet::VoronoiDiagramGenerator::openpl ( ) [private]

Definition at line 740 of file Voronoi.cc.

Referenced by plotinit().

00740 {}

void fastjet::VoronoiDiagramGenerator::circle	(	double	x,
		double	y,
		double	radius
	)			`[private]`

Definition at line 741 of file Voronoi.cc.

Referenced by out_site().

00741 {}

void fastjet::VoronoiDiagramGenerator::range	(	double	minX,
		double	minY,
		double	maxX,
		double	maxY
	)			`[private]`

Definition at line 742 of file Voronoi.cc.

Referenced by plotinit().

00742 {}

Member Data Documentation

std::vector<Point>* fastjet::VoronoiDiagramGenerator::parent_sites

Definition at line 216 of file Voronoi.hh.

Referenced by VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::n_parent_sites

Definition at line 217 of file Voronoi.hh.

Halfedge** fastjet::VoronoiDiagramGenerator::ELhash [private]

Definition at line 226 of file Voronoi.hh.

Referenced by cleanup(), ELgethash(), ELinitialize(), ELleftbnd(), and VoronoiDiagramGenerator().

Freelist fastjet::VoronoiDiagramGenerator::hfl [private]

Definition at line 278 of file Voronoi.hh.

Referenced by ELgethash(), ELinitialize(), and HEcreate().

Halfedge* fastjet::VoronoiDiagramGenerator::ELleftend [private]

Definition at line 279 of file Voronoi.hh.

Referenced by ELinitialize(), ELleftbnd(), and voronoi().

Halfedge * fastjet::VoronoiDiagramGenerator::ELrightend [private]

Definition at line 279 of file Voronoi.hh.

Referenced by ELinitialize(), ELleftbnd(), and voronoi().

int fastjet::VoronoiDiagramGenerator::ELhashsize [private]

Definition at line 280 of file Voronoi.hh.

Referenced by ELgethash(), ELinitialize(), and ELleftbnd().

int fastjet::VoronoiDiagramGenerator::triangulate [private]

Definition at line 282 of file Voronoi.hh.

Referenced by out_site().

int fastjet::VoronoiDiagramGenerator::sorted [private]

Definition at line 282 of file Voronoi.hh.

int fastjet::VoronoiDiagramGenerator::plot [private]

Definition at line 282 of file Voronoi.hh.

Referenced by out_site().

int fastjet::VoronoiDiagramGenerator::debug [private]

Definition at line 282 of file Voronoi.hh.

Referenced by out_site().

double fastjet::VoronoiDiagramGenerator::xmin [private]

Definition at line 283 of file Voronoi.hh.

Referenced by ELleftbnd(), geominit(), and plotinit().

double fastjet::VoronoiDiagramGenerator::xmax [private]

Definition at line 283 of file Voronoi.hh.

Referenced by geominit(), and plotinit().

double fastjet::VoronoiDiagramGenerator::ymin [private]

Definition at line 283 of file Voronoi.hh.

Referenced by geominit(), plotinit(), and PQbucket().

double fastjet::VoronoiDiagramGenerator::ymax [private]

Definition at line 283 of file Voronoi.hh.

Referenced by geominit(), and plotinit().

double fastjet::VoronoiDiagramGenerator::deltax [private]

Definition at line 283 of file Voronoi.hh.

Referenced by ELleftbnd(), and geominit().

double fastjet::VoronoiDiagramGenerator::deltay [private]

Definition at line 283 of file Voronoi.hh.

Referenced by geominit(), and PQbucket().

Site* fastjet::VoronoiDiagramGenerator::sites [private]

Definition at line 285 of file Voronoi.hh.

Referenced by cleanup(), nextone(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::nsites [private]

Definition at line 286 of file Voronoi.hh.

int fastjet::VoronoiDiagramGenerator::siteidx [private]

Definition at line 287 of file Voronoi.hh.

Referenced by nextone(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::sqrt_nsites [private]

Definition at line 288 of file Voronoi.hh.

Referenced by ELinitialize(), geominit(), getfree(), and PQinitialize().

int fastjet::VoronoiDiagramGenerator::nvertices [private]

Definition at line 289 of file Voronoi.hh.

Referenced by geominit(), and makevertex().

Freelist fastjet::VoronoiDiagramGenerator::sfl [private]

Definition at line 290 of file Voronoi.hh.

Referenced by deref(), and intersect().

Site* fastjet::VoronoiDiagramGenerator::bottomsite [private]

Definition at line 291 of file Voronoi.hh.

Referenced by leftreg(), rightreg(), and voronoi().

int fastjet::VoronoiDiagramGenerator::nedges [private]

Definition at line 293 of file Voronoi.hh.

Referenced by bisect(), and geominit().

Freelist fastjet::VoronoiDiagramGenerator::efl [private]

Definition at line 294 of file Voronoi.hh.

Referenced by bisect(), endpoint(), and geominit().

int fastjet::VoronoiDiagramGenerator::PQhashsize [private]

Definition at line 295 of file Voronoi.hh.

Referenced by PQbucket(), and PQinitialize().

Halfedge* fastjet::VoronoiDiagramGenerator::PQhash [private]

Definition at line 296 of file Voronoi.hh.

Referenced by cleanup(), PQ_min(), PQdelete(), PQextractmin(), PQinitialize(), PQinsert(), and VoronoiDiagramGenerator().

int fastjet::VoronoiDiagramGenerator::PQcount [private]

Definition at line 297 of file Voronoi.hh.

Referenced by PQdelete(), PQempty(), PQextractmin(), PQinitialize(), and PQinsert().

int fastjet::VoronoiDiagramGenerator::PQmin [private]

Definition at line 298 of file Voronoi.hh.

Referenced by PQ_min(), PQbucket(), PQextractmin(), and PQinitialize().

int fastjet::VoronoiDiagramGenerator::ntry [private]

Definition at line 300 of file Voronoi.hh.

Referenced by ELleftbnd().

int fastjet::VoronoiDiagramGenerator::totalsearch [private]

Definition at line 300 of file Voronoi.hh.

Referenced by ELleftbnd().

double fastjet::VoronoiDiagramGenerator::pxmin [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::pxmax [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::pymin [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::pymax [private]

Definition at line 301 of file Voronoi.hh.

Referenced by clip_line(), and plotinit().

double fastjet::VoronoiDiagramGenerator::cradius [private]

Definition at line 301 of file Voronoi.hh.

Referenced by out_site(), and plotinit().

int fastjet::VoronoiDiagramGenerator::total_alloc [private]

Definition at line 302 of file Voronoi.hh.

Referenced by myalloc().

double fastjet::VoronoiDiagramGenerator::borderMinX [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line().

double fastjet::VoronoiDiagramGenerator::borderMaxX [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line().

double fastjet::VoronoiDiagramGenerator::borderMinY [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line().

double fastjet::VoronoiDiagramGenerator::borderMaxY [private]

Definition at line 304 of file Voronoi.hh.

Referenced by clip_line().

FreeNodeArrayList* fastjet::VoronoiDiagramGenerator::allMemoryList [private]

Definition at line 306 of file Voronoi.hh.

Referenced by cleanup(), VoronoiDiagramGenerator(), and ~VoronoiDiagramGenerator().

FreeNodeArrayList* fastjet::VoronoiDiagramGenerator::currentMemoryBlock [private]

Definition at line 307 of file Voronoi.hh.

Referenced by cleanup(), getfree(), and VoronoiDiagramGenerator().

GraphEdge* fastjet::VoronoiDiagramGenerator::allEdges [private]

Definition at line 309 of file Voronoi.hh.

Referenced by cleanupEdges(), pushGraphEdge(), and VoronoiDiagramGenerator().

GraphEdge* fastjet::VoronoiDiagramGenerator::iteratorEdges [private]

Definition at line 310 of file Voronoi.hh.

Referenced by VoronoiDiagramGenerator().

double fastjet::VoronoiDiagramGenerator::minDistanceBetweenSites [private]

Definition at line 312 of file Voronoi.hh.

Referenced by VoronoiDiagramGenerator().

The documentation for this class was generated from the following files:

include/fastjet/internal/Voronoi.hh
src/Voronoi.cc


Public Member Functions
	VoronoiDiagramGenerator ()
	~VoronoiDiagramGenerator ()
bool	generateVoronoi (std::vector< Point > *_parent_sites, double minX, double maxX, double minY, double maxY, double minDist=0)
void	resetIterator ()
bool	getNext (GraphEdge **e)
Public Attributes
std::vector< Point > *	parent_sites
int	n_parent_sites
Private Member Functions
void	cleanup ()
void	cleanupEdges ()
char *	getfree (Freelist *fl)
Halfedge *	PQfind ()
int	PQempty ()
Halfedge *	HEcreate ()
Halfedge **	ELleft ()
Halfedge ***	ELright ()
Halfedge ****	ELleftbnd ()
Halfedge *	HEcreate (Edge *e, int pm)
Point	PQ_min ()
Halfedge *	PQextractmin ()
void	freeinit (Freelist *fl, int size)
void	makefree (Freenode curr, Freelist fl)
void	geominit ()
void	plotinit ()
bool	voronoi (int triangulate)
void	ref (Site *v)
void	deref (Site *v)
void	endpoint (Edge e, int lr, Site s)
void	ELdelete (Halfedge *he)
Halfedge *	ELleftbnd (Point *p)
Halfedge *	ELright (Halfedge *he)
void	makevertex (Site *v)
void	out_triple (Site s1, Site s2, Site *s3)
void	PQinsert (Halfedge he, Site v, double offset)
void	PQdelete (Halfedge *he)
bool	ELinitialize ()
void	ELinsert (Halfedge lb, Halfedge newHe)
Halfedge *	ELgethash (int b)
Halfedge *	ELleft (Halfedge *he)
Site *	leftreg (Halfedge *he)
void	out_site (Site *s)
bool	PQinitialize ()
int	PQbucket (Halfedge *he)
void	clip_line (Edge *e)
char *	myalloc (unsigned n)
int	right_of (Halfedge el, Point p)
Site *	rightreg (Halfedge *he)
Edge *	bisect (Site s1, Site s2)
double	dist (Site s, Site t)
Site *	intersect (Halfedge el1, Halfedge el2, Point *p=0)
void	out_bisector (Edge *e)
void	out_ep (Edge *e)
void	out_vertex (Site *v)
Site *	nextone ()
void	pushGraphEdge (double x1, double y1, double x2, double y2, Site s1, Site s2)
void	openpl ()
void	circle (double x, double y, double radius)
void	range (double minX, double minY, double maxX, double maxY)
Private Attributes
Halfedge **	ELhash
Freelist	hfl
Halfedge *	ELleftend
Halfedge *	ELrightend
int	ELhashsize
int	triangulate
int	sorted
int	plot
int	debug
double	xmin
double	xmax
double	ymin
double	ymax
double	deltax
double	deltay
Site *	sites
int	nsites
int	siteidx
int	sqrt_nsites
int	nvertices
Freelist	sfl
Site *	bottomsite
int	nedges
Freelist	efl
int	PQhashsize
Halfedge *	PQhash
int	PQcount
int	PQmin
int	ntry
int	totalsearch
double	pxmin
double	pxmax
double	pymin
double	pymax
double	cradius
int	total_alloc
double	borderMinX
double	borderMaxX
double	borderMinY
double	borderMaxY
FreeNodeArrayList *	allMemoryList
FreeNodeArrayList *	currentMemoryBlock
GraphEdge *	allEdges
GraphEdge *	iteratorEdges
double	minDistanceBetweenSites
