fastjet::ClusterSequenceActiveArea Class Reference

Class that behaves essentially like ClusterSequence except that it also provides access to the area of a jet (which will be a random quantity. More...

#include <ClusterSequenceActiveArea.hh>

Inheritance diagram for fastjet::ClusterSequenceActiveArea:

Inheritance graph
fastjet::ClusterSequence1GhostPassiveAreafastjet::ClusterSequenceAreaBasefastjet::ClusterSequencefastjet::ClusterSequencePassiveArea
[legend]

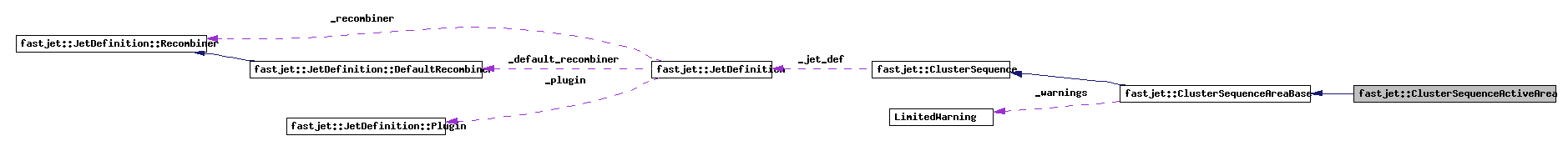

Collaboration diagram for fastjet::ClusterSequenceActiveArea:

Collaboration graph
fastjet::ClusterSequenceAreaBasefastjet::ClusterSequencefastjet::JetDefinitionfastjet::JetDefinition::DefaultRecombinerfastjet::JetDefinition::Recombinerfastjet::JetDefinition::PluginLimitedWarning
[legend]

List of all members.

Public Types

enum  mean_pt_strategies {
  median = 0, non_ghost_median, pttot_over_areatot, pttot_over_areatot_cut,
  mean_ratio_cut, play, median_4vector
}
 enum providing a variety of tentative strategies for estimating the background (e.g. More...

Public Member Functions

 ClusterSequenceActiveArea ()
 default constructor
template<class L>
 ClusterSequenceActiveArea (const std::vector< L > &pseudojets, const JetDefinition &jet_def, const GhostedAreaSpec &area_spec, const bool &writeout_combinations=false)
 constructor based on JetDefinition and GhostedAreaSpec
virtual double area (const PseudoJet &jet) const
 return the area associated with the given jet; this base class returns 0.
virtual double area_error (const PseudoJet &jet) const
 return the error (uncertainty) associated with the determination of the area of this jet; this base class returns 0.
virtual PseudoJet area_4vector (const PseudoJet &jet) const
 return a PseudoJet whose 4-vector is defined by the following integral
double pt_per_unit_area (mean_pt_strategies strat=median, double range=2.0) const
 return the transverse momentum per unit area according to one of the above strategies; for some strategies (those with "cut" in their name) the parameter "range" allows one to exclude a subset of the jets for the background estimation, those that have pt/area > median(pt/area)*range.
virtual double empty_area (const RangeDefinition &range) const
 rewrite the empty area from the parent class, so as to use all info at our disposal return the total area, in the given y-phi range, that consists of ghost jets or unclustered ghosts
virtual double n_empty_jets (const RangeDefinition &range) const
 return the true number of empty jets (replaces ClusterSequenceAreaBase::n_empty_jets(.

Protected Member Functions

void _resize_and_zero_AA ()
void _initialise_AA (const JetDefinition &jet_def, const GhostedAreaSpec &area_spec, const bool &writeout_combinations, bool &continue_running)
void _run_AA (const GhostedAreaSpec &area_spec)
void _postprocess_AA (const GhostedAreaSpec &area_spec)
 run the postprocessing for the active area (and derived classes)
void _initialise_and_run_AA (const JetDefinition &jet_def, const GhostedAreaSpec &area_spec, const bool &writeout_combinations=false)
 does the initialisation and running specific to the active areas class
void _transfer_ghost_free_history (const ClusterSequenceActiveAreaExplicitGhosts &clust_seq)
 transfer the history (and jet-momenta) from clust_seq to our own internal structure while removing ghosts
void _transfer_areas (const std::vector< int > &unique_hist_order, const ClusterSequenceActiveAreaExplicitGhosts &)
 transfer areas from the ClusterSequenceActiveAreaExplicitGhosts object into our internal area bookkeeping.
bool has_dangerous_particles () const
 returns true if there are any particles whose transverse momentum if so low that there's a risk of the ghosts having modified the clustering sequence

Protected Attributes

std::valarray< double > _average_area
 child classes benefit from having these at their disposal
std::valarray< double > _average_area2
std::valarray< PseudoJet > _average_area_4vector

Private Member Functions

void _extract_tree (std::vector< int > &) const
 routine for extracting the tree in an order that will be independent of any degeneracies in the recombination sequence that don't affect the composition of the final jets
void _extract_tree_children (int pos, std::valarray< bool > &, const std::valarray< int > &, std::vector< int > &) const
 do the part of the extraction associated with pos, working through its children and their parents
void _extract_tree_parents (int pos, std::valarray< bool > &, const std::valarray< int > &, std::vector< int > &) const
 do the part of the extraction associated with the parents of pos.
void _throw_unless_jets_have_same_perp_or_E (const PseudoJet &jet, const PseudoJet &refjet, double tolerance, const ClusterSequenceActiveAreaExplicitGhosts &jets_ghosted_seq) const
 check if two jets have the same momentum to within the tolerance (and if pt's are not the same we're forgiving and look to see if the energy is the same)

Private Attributes

double _non_jet_area
double _non_jet_area2
double _non_jet_number
double _maxrap_for_area
double _safe_rap_for_area
bool _has_dangerous_particles
int _area_spec_repeat
 since we are playing nasty games with seeds, we should warn the user a few times
std::vector< GhostJet > _ghost_jets
std::vector< GhostJet > _unclustered_ghosts

Classes

class  GhostJet
 a class for our internal storage of ghost jets More...

Detailed Description

Class that behaves essentially like ClusterSequence except that it also provides access to the area of a jet (which will be a random quantity.

.. Figure out what to do about seeds later...)

Definition at line 56 of file ClusterSequenceActiveArea.hh.

Member Enumeration Documentation

enum fastjet::ClusterSequenceActiveArea::mean_pt_strategies

enum providing a variety of tentative strategies for estimating the background (e.g.

non-jet) activity in a highly populated event; the one that has been most extensively tested is median.

Enumerator:
median
non_ghost_median
pttot_over_areatot
pttot_over_areatot_cut
mean_ratio_cut
play
median_4vector

Definition at line 80 of file ClusterSequenceActiveArea.hh.

00080                          {median=0, non_ghost_median, pttot_over_areatot,
00081                           pttot_over_areatot_cut, mean_ratio_cut, play,
00082                           median_4vector};

Constructor & Destructor Documentation

fastjet::ClusterSequenceActiveArea::ClusterSequenceActiveArea (  )  [inline]

default constructor

Definition at line 60 of file ClusterSequenceActiveArea.hh.

00060 {}

template<class L>
fastjet::ClusterSequenceActiveArea::ClusterSequenceActiveArea ( const std::vector< L > &  pseudojets,
const JetDefinition &  jet_def,
const GhostedAreaSpec &  area_spec,
const bool &  writeout_combinations = false
) [inline]

constructor based on JetDefinition and GhostedAreaSpec

Definition at line 204 of file ClusterSequenceActiveArea.hh.

00207                                      {
00208
00209   // transfer the initial jets (type L) into our own array
00210   _transfer_input_jets(pseudojets);
00211
00212   // run the clustering for active areas
00213   _initialise_and_run_AA(jet_def, area_spec, writeout_combinations);
00214
00215 }

Member Function Documentation

virtual double fastjet::ClusterSequenceActiveArea::area ( const PseudoJet &  jet  )  const [inline, virtual]

return the area associated with the given jet; this base class returns 0.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 69 of file ClusterSequenceActiveArea.hh.

References fastjet::PseudoJet::cluster_hist_index().

Referenced by pt_per_unit_area().

00069                                                     {
00070                              return _average_area[jet.cluster_hist_index()];};

virtual double fastjet::ClusterSequenceActiveArea::area_error ( const PseudoJet &  jet  )  const [inline, virtual]

return the error (uncertainty) associated with the determination of the area of this jet; this base class returns 0.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 71 of file ClusterSequenceActiveArea.hh.

References fastjet::PseudoJet::cluster_hist_index().

00071                                                           {
00072                              return _average_area2[jet.cluster_hist_index()];};

virtual PseudoJet fastjet::ClusterSequenceActiveArea::area_4vector ( const PseudoJet &  jet  )  const [inline, virtual]

return a PseudoJet whose 4-vector is defined by the following integral

drap d PseudoJet("rap,phi,pt=one") * Theta("rap,phi inside jet boundary")

where PseudoJet("rap,phi,pt=one") is a 4-vector with the given rapidity (rap), azimuth (phi) and pt=1, while Theta("rap,phi inside jet boundary") is a function that is 1 when rap,phi define a direction inside the jet boundary and 0 otherwise.

This base class returns a null 4-vector.

Reimplemented from fastjet::ClusterSequenceAreaBase.

Definition at line 74 of file ClusterSequenceActiveArea.hh.

References fastjet::PseudoJet::cluster_hist_index().

Referenced by pt_per_unit_area().

00074                                                                {
00075                     return _average_area_4vector[jet.cluster_hist_index()];};

double fastjet::ClusterSequenceActiveArea::pt_per_unit_area ( mean_pt_strategies  strat = median,
double  range = 2.0
) const

return the transverse momentum per unit area according to one of the above strategies; for some strategies (those with "cut" in their name) the parameter "range" allows one to exclude a subset of the jets for the background estimation, those that have pt/area > median(pt/area)*range.

NB: This call is OBSOLETE; use media_pt_per_unit_area from the

Definition at line 276 of file ClusterSequenceActiveArea.cc.

References _non_jet_area, _non_jet_number, _safe_rap_for_area, area(), area_4vector(), fastjet::ClusterSequence::inclusive_jets(), mean_ratio_cut, median, median_4vector, non_ghost_median, fastjet::PseudoJet::perp(), play, pttot_over_areatot, and pttot_over_areatot_cut.

00277                                                                      {
00278
00279   vector<PseudoJet> incl_jets = inclusive_jets();
00280   vector<double> pt_over_areas;
00281
00282   for (unsigned i = 0; i < incl_jets.size(); i++) {
00283     if (abs(incl_jets[i].rap()) < _safe_rap_for_area) {
00284       double this_area;
00285       if ( strat == median_4vector ) {
00286           this_area = area_4vector(incl_jets[i]).perp();
00287       } else {
00288           this_area = area(incl_jets[i]);
00289       }
00290       pt_over_areas.push_back(incl_jets[i].perp()/this_area);
00291     }
00292   }
00293
00294   // there is nothing inside our region, so answer will always be zero
00295   if (pt_over_areas.size() == 0) {return 0.0;}
00296
00297   // get median (pt/area) [this is the "old" median definition. It considers
00298   // only the "real" jets in calculating the median, i.e. excluding the
00299   // only-ghost ones]
00300   sort(pt_over_areas.begin(), pt_over_areas.end());
00301   double non_ghost_median_ratio = pt_over_areas[pt_over_areas.size()/2];
00302
00303   // new median definition that takes into account non-jet area (i.e.
00304   // jets composed only of ghosts), and for fractional median position
00305   // interpolates between the corresponding entries in the pt_over_areas array
00306   double nj_median_pos = (pt_over_areas.size()-1 - _non_jet_number)/2.0;
00307   double nj_median_ratio;
00308   if (nj_median_pos >= 0 && pt_over_areas.size() > 1) {
00309     int int_nj_median = int(nj_median_pos);
00310     nj_median_ratio =
00311       pt_over_areas[int_nj_median] * (int_nj_median+1-nj_median_pos)
00312       + pt_over_areas[int_nj_median+1] * (nj_median_pos - int_nj_median);
00313   } else {
00314     nj_median_ratio = 0.0;
00315   }
00316
00317
00318   // get various forms of mean (pt/area)
00319   double pt_sum = 0.0, pt_sum_with_cut = 0.0;
00320   double area_sum = _non_jet_area, area_sum_with_cut = _non_jet_area;
00321   double ratio_sum = 0.0;
00322   double ratio_n = _non_jet_number;
00323   for (unsigned i = 0; i < incl_jets.size(); i++) {
00324     if (abs(incl_jets[i].rap()) < _safe_rap_for_area) {
00325       double this_area;
00326       if ( strat == median_4vector ) {
00327           this_area = area_4vector(incl_jets[i]).perp();
00328       } else {
00329           this_area = area(incl_jets[i]);
00330       }
00331       pt_sum   += incl_jets[i].perp();
00332       area_sum += this_area;
00333       double ratio = incl_jets[i].perp()/this_area;
00334       if (ratio < range*nj_median_ratio) {
00335         pt_sum_with_cut   += incl_jets[i].perp();
00336         area_sum_with_cut += this_area;
00337         ratio_sum += ratio; ratio_n++;
00338       }
00339     }
00340   }
00341
00342   if (strat == play) {
00343     double trunc_sum = 0, trunc_sumsqr = 0;
00344     vector<double> means(pt_over_areas.size()), sd(pt_over_areas.size());
00345     for (unsigned i = 0; i < pt_over_areas.size() ; i++ ) {
00346       double ratio = pt_over_areas[i];
00347       trunc_sum += ratio;
00348       trunc_sumsqr += ratio*ratio;
00349       means[i] = trunc_sum / (i+1);
00350       sd[i]    = sqrt(abs(means[i]*means[i]  - trunc_sumsqr/(i+1)));
00351       cerr << "i, means, sd: " <<i<<", "<< means[i] <<", "<<sd[i]<<", "<<
00352         sd[i]/sqrt(i+1.0)<<endl;
00353     }
00354     cout << "-----------------------------------"<<endl;
00355     for (unsigned i = 0; i <= pt_over_areas.size()/2 ; i++ ) {
00356       cout << "Median "<< i <<" = " << pt_over_areas[i]<<endl;
00357     }
00358     cout << "Number of non-jets: "<<_non_jet_number<<endl;
00359     cout << "Area of non-jets: "<<_non_jet_area<<endl;
00360     cout << "Default median position: " << (pt_over_areas.size()-1)/2.0<<endl;
00361     cout << "NJ median position: " << nj_median_pos <<endl;
00362     cout << "NJ median value: " << nj_median_ratio <<endl;
00363     return 0.0;
00364   }
00365
00366   switch(strat) {
00367   case median:
00368   case median_4vector:
00369     return nj_median_ratio;
00370   case non_ghost_median:
00371     return non_ghost_median_ratio;
00372   case pttot_over_areatot:
00373     return pt_sum / area_sum;
00374   case pttot_over_areatot_cut:
00375     return pt_sum_with_cut / area_sum_with_cut;
00376   case mean_ratio_cut:
00377     return ratio_sum/ratio_n;
00378   default:
00379     return nj_median_ratio;
00380   }
00381
00382 }

double fastjet::ClusterSequenceActiveArea::empty_area ( const RangeDefinition &  range  )  const [virtual]

rewrite the empty area from the parent class, so as to use all info at our disposal return the total area, in the given y-phi range, that consists of ghost jets or unclustered ghosts

Reimplemented from fastjet::ClusterSequenceAreaBase.

Reimplemented in fastjet::ClusterSequencePassiveArea.

Definition at line 445 of file ClusterSequenceActiveArea.cc.

References _area_spec_repeat, _ghost_jets, _unclustered_ghosts, and fastjet::RangeDefinition::is_in_range().

Referenced by fastjet::ClusterSequencePassiveArea::empty_area().

00445                                                                                 {
00446   double empty = 0.0;
00447   // first deal with ghost jets
00448   for (unsigned  i = 0; i < _ghost_jets.size(); i++) {
00449     if (range.is_in_range(_ghost_jets[i])) {
00450       empty += _ghost_jets[i].area;
00451     }
00452   }
00453   // then deal with unclustered ghosts
00454   for (unsigned  i = 0; i < _unclustered_ghosts.size(); i++) {
00455     if (range.is_in_range(_unclustered_ghosts[i])) {
00456       empty += _unclustered_ghosts[i].area;
00457     }
00458   }
00459   empty /= _area_spec_repeat;
00460   return empty;
00461 }

double fastjet::ClusterSequenceActiveArea::n_empty_jets ( const RangeDefinition &  range  )  const [virtual]

return the true number of empty jets (replaces ClusterSequenceAreaBase::n_empty_jets(.

..))

Reimplemented from fastjet::ClusterSequenceAreaBase.

Reimplemented in fastjet::ClusterSequence1GhostPassiveArea.

Definition at line 464 of file ClusterSequenceActiveArea.cc.

References _area_spec_repeat, _ghost_jets, and fastjet::RangeDefinition::is_in_range().

00464                                                                                   {
00465   double inrange = 0;
00466   for (unsigned  i = 0; i < _ghost_jets.size(); i++) {
00467     if (range.is_in_range(_ghost_jets[i])) inrange++;
00468   }
00469   inrange /= _area_spec_repeat;
00470   return inrange;
00471 }

void fastjet::ClusterSequenceActiveArea::_resize_and_zero_AA (  )  [protected]

Definition at line 67 of file ClusterSequenceActiveArea.cc.

References _average_area, _average_area2, _average_area_4vector, fastjet::ClusterSequence::_jets, _non_jet_area, _non_jet_area2, and _non_jet_number.

Referenced by _initialise_AA(), and fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA().

00067                                                      {
00068   // initialize our local area information
00069   _average_area.resize(2*_jets.size());  _average_area  = 0.0;
00070   _average_area2.resize(2*_jets.size()); _average_area2 = 0.0;
00071   _average_area_4vector.resize(2*_jets.size());
00072   _average_area_4vector = PseudoJet(0.0,0.0,0.0,0.0);
00073   _non_jet_area = 0.0; _non_jet_area2 = 0.0; _non_jet_number=0.0;
00074 }

void fastjet::ClusterSequenceActiveArea::_initialise_AA ( const JetDefinition &  jet_def,
const GhostedAreaSpec &  area_spec,
const bool &  writeout_combinations,
bool &  continue_running
) [protected]

Definition at line 77 of file ClusterSequenceActiveArea.cc.

References _area_spec_repeat, fastjet::ClusterSequence::_decant_options(), fastjet::ClusterSequence::_fill_initial_history(), _has_dangerous_particles, fastjet::ClusterSequence::_initialise_and_run(), _maxrap_for_area, _resize_and_zero_AA(), _safe_rap_for_area, fastjet::GhostedAreaSpec::ghost_maxrap(), fastjet::JetDefinition::R(), and fastjet::GhostedAreaSpec::repeat().

Referenced by fastjet::ClusterSequence1GhostPassiveArea::_initialise_and_run_1GPA(), and _initialise_and_run_AA().

00082 {
00083
00084   // store this for future use
00085   _area_spec_repeat = area_spec.repeat();
00086
00087   // make sure placeholders are there & zeroed
00088   _resize_and_zero_AA();
00089
00090   // for future reference...
00091   _maxrap_for_area = area_spec.ghost_maxrap();
00092   _safe_rap_for_area = _maxrap_for_area - jet_def.R();
00093
00094   // Make sure we'll have at least one repetition -- then we can
00095   // deduce the unghosted clustering sequence from one of the ghosted
00096   // sequences. If we do not have any repetitions, then get the
00097   // unghosted sequence from the plain unghosted clustering.
00098   //
00099   // NB: all decanting and filling of initial history will then
00100   // be carried out by base-class routine
00101   if (area_spec.repeat() <= 0) {
00102     _initialise_and_run(jet_def, writeout_combinations);
00103     continue_running = false;
00104     return;
00105   }
00106
00107   // transfer all relevant info into internal variables
00108   _decant_options(jet_def, writeout_combinations);
00109
00110   // set up the history entries for the initial particles (those
00111   // currently in _jets)
00112   _fill_initial_history();
00113
00114   // by default it does not...
00115   _has_dangerous_particles = false;
00116
00117   continue_running = true;
00118 }

void fastjet::ClusterSequenceActiveArea::_run_AA ( const GhostedAreaSpec &  area_spec  )  [protected]

Definition at line 122 of file ClusterSequenceActiveArea.cc.

References _has_dangerous_particles, fastjet::ClusterSequence::_jets, _transfer_areas(), _transfer_ghost_free_history(), fastjet::ClusterSequenceActiveAreaExplicitGhosts::has_dangerous_particles(), fastjet::ClusterSequence::jet_def(), fastjet::GhostedAreaSpec::repeat(), and fastjet::ClusterSequence::unique_history_order().

Referenced by _initialise_and_run_AA().

00122                                                                           {
00123   // record the input jets as they are currently
00124   vector<PseudoJet> input_jets(_jets);
00125
00126   // code for testing the unique tree
00127   vector<int> unique_tree;
00128
00129   // run the clustering multiple times so as to get areas of all the jets
00130   for (int irepeat = 0; irepeat < area_spec.repeat(); irepeat++) {
00131
00132     ClusterSequenceActiveAreaExplicitGhosts clust_seq(input_jets,
00133                                                       jet_def(), area_spec);
00134
00135     _has_dangerous_particles |= clust_seq.has_dangerous_particles();
00136     if (irepeat == 0) {
00137       // take the non-ghost part of the history and put into our own
00138       // history.
00139       _transfer_ghost_free_history(clust_seq);
00140       // get the "unique" order that will be used for transferring all areas.
00141       unique_tree = unique_history_order();
00142     }
00143
00144     // transfer areas from clust_seq into our object
00145     _transfer_areas(unique_tree, clust_seq);
00146   }
00147 }

void fastjet::ClusterSequenceActiveArea::_postprocess_AA ( const GhostedAreaSpec &  area_spec  )  [protected]

run the postprocessing for the active area (and derived classes)

Definition at line 152 of file ClusterSequenceActiveArea.cc.

References _average_area, _average_area2, _average_area_4vector, _non_jet_area, _non_jet_area2, _non_jet_number, and fastjet::GhostedAreaSpec::repeat().

Referenced by fastjet::ClusterSequence1GhostPassiveArea::_initialise_and_run_1GPA(), and _initialise_and_run_AA().

00152                                                                                   {
00153   _average_area  /= area_spec.repeat();
00154   _average_area2 /= area_spec.repeat();
00155   if (area_spec.repeat() > 1) {
00156     // the VC compiler complains if one puts everything on a single line.
00157     // An alternative solution would be to use -1.0 (+single line)
00158     const double tmp = area_spec.repeat()-1;
00159     _average_area2 = sqrt(abs(_average_area2 - _average_area*_average_area)/tmp);
00160   } else {
00161     _average_area2 = 0.0;
00162   }
00163
00164   _non_jet_area  /= area_spec.repeat();
00165   _non_jet_area2 /= area_spec.repeat();
00166   _non_jet_area2  = sqrt(abs(_non_jet_area2 - _non_jet_area*_non_jet_area)/
00167                          area_spec.repeat());
00168   _non_jet_number /= area_spec.repeat();
00169
00170   // following bizarre way of writing things is related to
00171   // poverty of operations on PseudoJet objects (as well as some confusion
00172   // in one or two places)
00173   for (unsigned i = 0; i < _average_area_4vector.size(); i++) {
00174     _average_area_4vector[i] = (1.0/area_spec.repeat()) * _average_area_4vector[i];
00175   }
00176   //cerr << "Non-jet area = " << _non_jet_area << " +- " << _non_jet_area2<<endl;
00177 }

void fastjet::ClusterSequenceActiveArea::_initialise_and_run_AA ( const JetDefinition &  jet_def,
const GhostedAreaSpec &  area_spec,
const bool &  writeout_combinations = false
) [protected]

does the initialisation and running specific to the active areas class

global routine for running active area

Definition at line 53 of file ClusterSequenceActiveArea.cc.

References _initialise_AA(), _postprocess_AA(), and _run_AA().

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA().

00056                                                     {
00057
00058   bool continue_running;
00059   _initialise_AA(jet_def,  area_spec, writeout_combinations, continue_running);
00060   if (continue_running) {
00061     _run_AA(area_spec);
00062     _postprocess_AA(area_spec);
00063   }
00064 }

void fastjet::ClusterSequenceActiveArea::_transfer_ghost_free_history ( const ClusterSequenceActiveAreaExplicitGhosts &  clust_seq  )  [protected]

transfer the history (and jet-momenta) from clust_seq to our own internal structure while removing ghosts

transfer the history (and jet-momenta) from clust_seq to our own internal structure while removing ghosts

Definition at line 476 of file ClusterSequenceActiveArea.cc.

References fastjet::ClusterSequence::_do_iB_recombination_step(), fastjet::ClusterSequence::_do_ij_recombination_step(), fastjet::ClusterSequence::_history, fastjet::ClusterSequence::_strategy, fastjet::ClusterSequence::BeamJet, fastjet::ClusterSequence::history_element::dij, fastjet::ClusterSequence::history(), fastjet::ClusterSequence::InexistentParent, fastjet::ClusterSequence::Invalid, fastjet::ClusterSequenceActiveAreaExplicitGhosts::is_pure_ghost(), fastjet::ClusterSequence::history_element::parent1, fastjet::ClusterSequence::history_element::parent2, and fastjet::ClusterSequence::strategy_used().

Referenced by fastjet::ClusterSequence1GhostPassiveArea::_run_1GPA(), and _run_AA().

00477                                                                           {
00478
00479   const vector<history_element> & gs_history  = ghosted_seq.history();
00480   vector<int> gs2self_hist_map(gs_history.size());
00481
00482   // work our way through to first non-trivial combination
00483   unsigned igs = 0;
00484   unsigned iself = 0;
00485   while (gs_history[igs].parent1 == InexistentParent) {
00486     // record correspondence
00487     if (!ghosted_seq.is_pure_ghost(igs)) {
00488       gs2self_hist_map[igs] = iself++;
00489     } else {
00490       gs2self_hist_map[igs] = Invalid;
00491     }
00492     igs++;
00493   };
00494
00495   // make sure the count of non-ghost initial jets is equal to
00496   // what we already have in terms of initial jets
00497   assert(iself == _history.size());
00498
00499   // now actually transfer things
00500   do  {
00501     // if we are a pure ghost, then go on to next round
00502     if (ghosted_seq.is_pure_ghost(igs)) {
00503       gs2self_hist_map[igs] = Invalid;
00504       continue;
00505     }
00506
00507     const history_element & gs_hist_el = gs_history[igs];
00508
00509     bool parent1_is_ghost = ghosted_seq.is_pure_ghost(gs_hist_el.parent1);
00510     bool parent2_is_ghost = ghosted_seq.is_pure_ghost(gs_hist_el.parent2);
00511
00512     // if exactly one parent is a ghost then maintain info about the
00513     // non-ghost correspondence for this jet, and then go on to next
00514     // recombination in the ghosted sequence
00515     if (parent1_is_ghost && !parent2_is_ghost && gs_hist_el.parent2 >= 0) {
00516       gs2self_hist_map[igs] = gs2self_hist_map[gs_hist_el.parent2];
00517       continue;
00518     }
00519     if (!parent1_is_ghost && parent2_is_ghost) {
00520       gs2self_hist_map[igs] = gs2self_hist_map[gs_hist_el.parent1];
00521       continue;
00522     }
00523
00524     // no parents are ghosts...
00525     if (gs_hist_el.parent2 >= 0) {
00526       // recombination of two non-ghosts
00527       gs2self_hist_map[igs] = _history.size();
00528       // record the recombination in our own sequence
00529       int newjet_k; // dummy var -- not used
00530       int jet_i = _history[gs2self_hist_map[gs_hist_el.parent1]].jetp_index;
00531       int jet_j = _history[gs2self_hist_map[gs_hist_el.parent2]].jetp_index;
00532       //cerr << "recombining "<< jet_i << " and "<< jet_j << endl;
00533       _do_ij_recombination_step(jet_i, jet_j, gs_hist_el.dij, newjet_k);
00534     } else {
00535       // we have a non-ghost that has become a beam-jet
00536       assert(gs_history[igs].parent2 == BeamJet);
00537       // record position
00538       gs2self_hist_map[igs] = _history.size();
00539       // record the recombination in our own sequence
00540       _do_iB_recombination_step(
00541              _history[gs2self_hist_map[gs_hist_el.parent1]].jetp_index,
00542              gs_hist_el.dij);
00543     }
00544   } while (++igs < gs_history.size());
00545
00546   // finally transfer info about strategy used (which isn't necessarily
00547   // always the one that got asked for...)
00548   _strategy = ghosted_seq.strategy_used();
00549 }

void fastjet::ClusterSequenceActiveArea::_transfer_areas ( const std::vector< int > &  unique_hist_order,
const ClusterSequenceActiveAreaExplicitGhosts &
) [protected]

transfer areas from the ClusterSequenceActiveAreaExplicitGhosts object into our internal area bookkeeping.

..

Referenced by fastjet::ClusterSequence1GhostPassiveArea::_run_1GPA(), and _run_AA().

bool fastjet::ClusterSequenceActiveArea::has_dangerous_particles (  )  const [inline, protected]

returns true if there are any particles whose transverse momentum if so low that there's a risk of the ghosts having modified the clustering sequence

Definition at line 149 of file ClusterSequenceActiveArea.hh.

00149 {return _has_dangerous_particles;}

void fastjet::ClusterSequenceActiveArea::_extract_tree ( std::vector< int > &   )  const [private]

routine for extracting the tree in an order that will be independent of any degeneracies in the recombination sequence that don't affect the composition of the final jets

void fastjet::ClusterSequenceActiveArea::_extract_tree_children ( int  pos,
std::valarray< bool > &  ,
const std::valarray< int > &  ,
std::vector< int > &
) const [private]

do the part of the extraction associated with pos, working through its children and their parents

Reimplemented from fastjet::ClusterSequence.

void fastjet::ClusterSequenceActiveArea::_extract_tree_parents ( int  pos,
std::valarray< bool > &  ,
const std::valarray< int > &  ,
std::vector< int > &
) const [private]

do the part of the extraction associated with the parents of pos.

Reimplemented from fastjet::ClusterSequence.

void fastjet::ClusterSequenceActiveArea::_throw_unless_jets_have_same_perp_or_E ( const PseudoJet &  jet,
const PseudoJet &  refjet,
double  tolerance,
const ClusterSequenceActiveAreaExplicitGhosts &  jets_ghosted_seq
) const [private]

check if two jets have the same momentum to within the tolerance (and if pt's are not the same we're forgiving and look to see if the energy is the same)

check if two jets have the same momentum to within the tolerance (and if pt's are not the same we're forgiving and look to see if the energy is the same)

Definition at line 742 of file ClusterSequenceActiveArea.cc.

References fastjet::PseudoJet::E(), fastjet::ClusterSequenceActiveAreaExplicitGhosts::has_dangerous_particles(), fastjet::PseudoJet::perp2(), fastjet::PseudoJet::px(), fastjet::PseudoJet::py(), and fastjet::PseudoJet::pz().

00747         {
00748
00749   if (abs(jet.perp2()-refjet.perp2()) >
00750       tolerance*max(jet.perp2(),refjet.perp2())
00751       && abs(jet.E()-refjet.E()) > tolerance*max(jet.E(),refjet.E())) {
00752     ostringstream ostr;
00753     ostr << "Could not match clustering sequence for an inclusive/exclusive jet when reconstructing areas" << endl;
00754     ostr << "  Ref-Jet: "
00755          << refjet.px() << " "
00756          << refjet.py() << " "
00757          << refjet.pz() << " "
00758          << refjet.E() << endl;
00759     ostr << "  New-Jet: "
00760          << jet.px() << " "
00761          << jet.py() << " "
00762          << jet.pz() << " "
00763          << jet.E() << endl;
00764     if (jets_ghosted_seq.has_dangerous_particles()) {
00765       ostr << "  NB: some particles have pt too low wrt ghosts -- this may be the cause" << endl;}
00766     //ostr << jet.perp() << " " << refjet.perp() << " "
00767     //     << jet.perp() - refjet.perp() << endl;
00768     throw Error(ostr.str());
00769   }
00770 }

Member Data Documentation

std::valarray<double> fastjet::ClusterSequenceActiveArea::_average_area [protected]

child classes benefit from having these at their disposal

Definition at line 143 of file ClusterSequenceActiveArea.hh.

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), _postprocess_AA(), _resize_and_zero_AA(), and fastjet::ClusterSequence1GhostPassiveArea::_run_1GPA().

std::valarray<double> fastjet::ClusterSequenceActiveArea::_average_area2 [protected]

Definition at line 143 of file ClusterSequenceActiveArea.hh.

Referenced by _postprocess_AA(), _resize_and_zero_AA(), and fastjet::ClusterSequence1GhostPassiveArea::_run_1GPA().

std::valarray<PseudoJet> fastjet::ClusterSequenceActiveArea::_average_area_4vector [protected]

Definition at line 144 of file ClusterSequenceActiveArea.hh.

Referenced by fastjet::ClusterSequencePassiveArea::_initialise_and_run_PA(), _postprocess_AA(), and _resize_and_zero_AA().

double fastjet::ClusterSequenceActiveArea::_non_jet_area [private]

Definition at line 154 of file ClusterSequenceActiveArea.hh.

Referenced by _postprocess_AA(), _resize_and_zero_AA(), and pt_per_unit_area().

double fastjet::ClusterSequenceActiveArea::_non_jet_area2 [private]

Definition at line 154 of file ClusterSequenceActiveArea.hh.

Referenced by _postprocess_AA(), and _resize_and_zero_AA().

double fastjet::ClusterSequenceActiveArea::_non_jet_number [private]

Definition at line 154 of file ClusterSequenceActiveArea.hh.

Referenced by _postprocess_AA(), _resize_and_zero_AA(), and pt_per_unit_area().

double fastjet::ClusterSequenceActiveArea::_maxrap_for_area [private]

Definition at line 156 of file ClusterSequenceActiveArea.hh.

Referenced by _initialise_AA().

double fastjet::ClusterSequenceActiveArea::_safe_rap_for_area [private]

Definition at line 157 of file ClusterSequenceActiveArea.hh.

Referenced by _initialise_AA(), and pt_per_unit_area().

bool fastjet::ClusterSequenceActiveArea::_has_dangerous_particles [private]

Definition at line 159 of file ClusterSequenceActiveArea.hh.

Referenced by _initialise_AA(), and _run_AA().

int fastjet::ClusterSequenceActiveArea::_area_spec_repeat [private]

since we are playing nasty games with seeds, we should warn the user a few times

Definition at line 187 of file ClusterSequenceActiveArea.hh.

Referenced by _initialise_AA(), empty_area(), and n_empty_jets().

std::vector<GhostJet> fastjet::ClusterSequenceActiveArea::_ghost_jets [private]

Definition at line 196 of file ClusterSequenceActiveArea.hh.

Referenced by empty_area(), and n_empty_jets().

std::vector<GhostJet> fastjet::ClusterSequenceActiveArea::_unclustered_ghosts [private]

Definition at line 197 of file ClusterSequenceActiveArea.hh.

Referenced by empty_area().

The documentation for this class was generated from the following files:
Generated on Mon Apr 28 19:16:45 2008 for fastjet by  doxygen 1.5.5
