#include <Voronoi.hh>

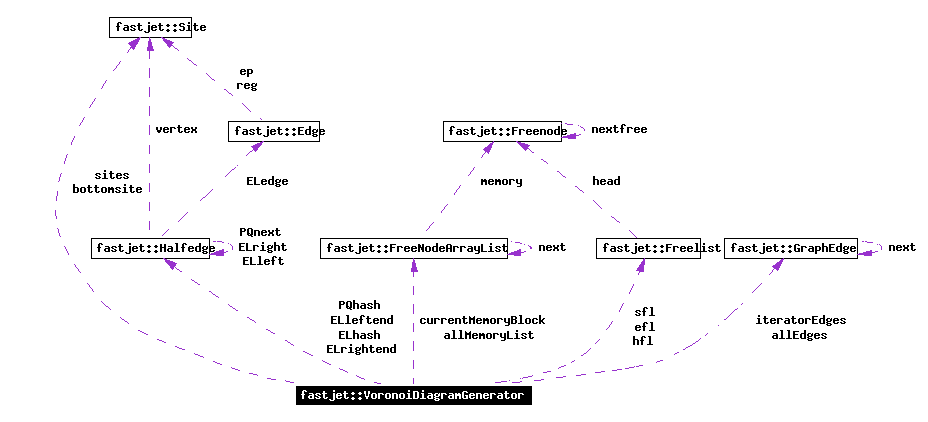

Collaboration diagram for fastjet::VoronoiDiagramGenerator:
|
|
Definition at line 64 of file Voronoi.cc. References allEdges, allMemoryList, currentMemoryBlock, ELhash, iteratorEdges, fastjet::FreeNodeArrayList::memory, minDistanceBetweenSites, fastjet::FreeNodeArrayList::next, parent_sites, PQhash, siteidx, and sites. 00064 {
00065 siteidx = 0;
00066 sites = NULL;
00067 parent_sites = NULL;
00068
00069 allMemoryList = new FreeNodeArrayList;
00070 allMemoryList->memory = NULL;
00071 allMemoryList->next = NULL;
00072 currentMemoryBlock = allMemoryList;
00073 allEdges = NULL;
00074 iteratorEdges = 0;
00075 minDistanceBetweenSites = 0;
00076
00077 ELhash = NULL;
00078 PQhash = NULL;
00079 }
|
|
|
Definition at line 81 of file Voronoi.cc. References allMemoryList, cleanup(), and cleanupEdges(). 00081 {
00082 cleanup();
00083 cleanupEdges();
00084
00085 if (allMemoryList != NULL)
00086 delete allMemoryList;
00087 }
|
|
||||||||||||
|
Definition at line 338 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Edge::edgenbr, efl, fastjet::Edge::ep, getfree(), nedges, ref(), and fastjet::Edge::reg. Referenced by voronoi(). 00338 {
00339 double dx,dy,adx,ady;
00340 Edge *newedge;
00341
00342 newedge = (Edge*) getfree(&efl);
00343
00344 newedge->reg[0] = s1; //store the sites that this edge is bisecting
00345 newedge->reg[1] = s2;
00346 ref(s1);
00347 ref(s2);
00348
00349 // to begin with, there are no endpoints on the bisector - it goes
00350 // to infinity
00351 newedge->ep[0] = (Site*) NULL;
00352 newedge->ep[1] = (Site*) NULL;
00353
00354 // get the difference in x dist between the sites
00355 dx = s2->coord.x - s1->coord.x;
00356 dy = s2->coord.y - s1->coord.y;
00357
00358 // make sure that the difference is positive
00359 adx = dx>0 ? dx : -dx;
00360 ady = dy>0 ? dy : -dy;
00361
00362 // get the slope of the line
00363 newedge->c = (double)(s1->coord.x * dx + s1->coord.y * dy
00364 + (dx*dx + dy*dy)*0.5);
00365
00366 if (adx>ady){
00367 //set formula of line, with x fixed to 1
00368 newedge->a = 1.0; newedge->b = dy/dx; newedge->c /= dx;
00369 } else {
00370 //set formula of line, with y fixed to 1
00371 newedge->b = 1.0; newedge->a = dx/dy; newedge->c /= dy;
00372 }
00373
00374 newedge->edgenbr = nedges;
00375 nedges++;
00376
00377 return newedge;
00378 }
|
|
||||||||||||||||
|
Definition at line 741 of file Voronoi.cc. Referenced by out_site(). 00741 {}
|
|
|
Definition at line 660 of file Voronoi.cc. References allMemoryList, currentMemoryBlock, ELhash, fastjet::FreeNodeArrayList::memory, fastjet::FreeNodeArrayList::next, PQhash, and sites. Referenced by generateVoronoi(), and ~VoronoiDiagramGenerator(). 00661 {
00662 if(sites != NULL){
00663 free(sites);
00664 sites = 0;
00665 }
00666
00667 FreeNodeArrayList* current=NULL, *prev=NULL;
00668
00669 current = prev = allMemoryList;
00670
00671 while(current->next!=NULL){
00672 prev = current;
00673 current = current->next;
00674 free(prev->memory);
00675 delete prev;
00676 prev = NULL;
00677 }
00678
00679 if(current!=NULL){
00680 if (current->memory!=NULL){
00681 free(current->memory);
00682 }
00683 delete current;
00684 }
00685
00686 allMemoryList = new FreeNodeArrayList;
00687 allMemoryList->next = NULL;
00688 allMemoryList->memory = NULL;
00689 currentMemoryBlock = allMemoryList;
00690
00691 if (ELhash!=NULL)
00692 free(ELhash);
00693
00694 if (PQhash!=NULL)
00695 free(PQhash);
00696 }
|
|
|
Definition at line 698 of file Voronoi.cc. References allEdges, and fastjet::GraphEdge::next. Referenced by generateVoronoi(), and ~VoronoiDiagramGenerator(). 00699 {
00700 GraphEdge* geCurrent = NULL, *gePrev = NULL;
00701 geCurrent = gePrev = allEdges;
00702
00703 while(geCurrent!=NULL){
00704 gePrev = geCurrent;
00705 geCurrent = geCurrent->next;
00706 delete gePrev;
00707 }
00708
00709 allEdges = 0;
00710
00711 }
|
|
|
Definition at line 797 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, borderMaxX, borderMaxY, borderMinX, borderMinY, fastjet::Edge::c, fastjet::Edge::ep, pushGraphEdge(), pxmax, pxmin, pymax, pymin, and fastjet::Edge::reg. Referenced by endpoint(), and voronoi(). 00798 {
00799 Site *s1, *s2;
00800 double x1=0,x2=0,y1=0,y2=0; //, temp = 0;
00801
00802 x1 = e->reg[0]->coord.x;
00803 x2 = e->reg[1]->coord.x;
00804 y1 = e->reg[0]->coord.y;
00805 y2 = e->reg[1]->coord.y;
00806
00807 //if the distance between the two points this line was created from is less than
00808 //the square root of 2, then ignore it
00809 //TODO improve/remove
00810 //if(sqrt(((x2 - x1) * (x2 - x1)) + ((y2 - y1) * (y2 - y1))) < minDistanceBetweenSites)
00811 // {
00812 // return;
00813 // }
00814 pxmin = borderMinX;
00815 pxmax = borderMaxX;
00816 pymin = borderMinY;
00817 pymax = borderMaxY;
00818
00819 if(e->a == 1.0 && e ->b >= 0.0)
00820 {
00821 s1 = e->ep[1];
00822 s2 = e->ep[0];
00823 }
00824 else
00825 {
00826 s1 = e->ep[0];
00827 s2 = e->ep[1];
00828 };
00829
00830 if(e->a == 1.0)
00831 {
00832 y1 = pymin;
00833 if (s1!=(Site *)NULL && s1->coord.y > pymin)
00834 {
00835 y1 = s1->coord.y;
00836 }
00837 if(y1>pymax)
00838 {
00839 // printf("\nClipped (1) y1 = %f to %f",y1,pymax);
00840 y1 = pymax;
00841 //return;
00842 }
00843 x1 = e->c - e->b * y1;
00844 y2 = pymax;
00845 if (s2!=(Site *)NULL && s2->coord.y < pymax)
00846 y2 = s2->coord.y;
00847
00848 if(y2<pymin)
00849 {
00850 //printf("\nClipped (2) y2 = %f to %f",y2,pymin);
00851 y2 = pymin;
00852 //return;
00853 }
00854 x2 = (e->c) - (e->b) * y2;
00855 if (((x1> pxmax) & (x2>pxmax)) | ((x1<pxmin)&(x2<pxmin)))
00856 {
00857 //printf("\nClipLine jumping out(3), x1 = %f, pxmin = %f, pxmax = %f",x1,pxmin,pxmax);
00858 return;
00859 }
00860 if(x1> pxmax)
00861 { x1 = pxmax; y1 = (e->c - x1)/e->b;};
00862 if(x1<pxmin)
00863 { x1 = pxmin; y1 = (e->c - x1)/e->b;};
00864 if(x2>pxmax)
00865 { x2 = pxmax; y2 = (e->c - x2)/e->b;};
00866 if(x2<pxmin)
00867 { x2 = pxmin; y2 = (e->c - x2)/e->b;};
00868 }
00869 else
00870 {
00871 x1 = pxmin;
00872 if (s1!=(Site *)NULL && s1->coord.x > pxmin)
00873 x1 = s1->coord.x;
00874 if(x1>pxmax)
00875 {
00876 //printf("\nClipped (3) x1 = %f to %f",x1,pxmin);
00877 //return;
00878 x1 = pxmax;
00879 }
00880 y1 = e->c - e->a * x1;
00881 x2 = pxmax;
00882 if (s2!=(Site *)NULL && s2->coord.x < pxmax)
00883 x2 = s2->coord.x;
00884 if(x2<pxmin)
00885 {
00886 //printf("\nClipped (4) x2 = %f to %f",x2,pxmin);
00887 //return;
00888 x2 = pxmin;
00889 }
00890 y2 = e->c - e->a * x2;
00891 if (((y1> pymax) & (y2>pymax)) | ((y1<pymin)&(y2<pymin)))
00892 {
00893 //printf("\nClipLine jumping out(6), y1 = %f, pymin = %f, pymax = %f",y2,pymin,pymax);
00894 return;
00895 }
00896 if(y1> pymax)
00897 { y1 = pymax; x1 = (e->c - y1)/e->a;};
00898 if(y1<pymin)
00899 { y1 = pymin; x1 = (e->c - y1)/e->a;};
00900 if(y2>pymax)
00901 { y2 = pymax; x2 = (e->c - y2)/e->a;};
00902 if(y2<pymin)
00903 { y2 = pymin; x2 = (e->c - y2)/e->a;};
00904 };
00905
00906 //printf("\nPushing line (%f,%f,%f,%f)",x1,y1,x2,y2);
00907 //fprintf(stdout, "Line with vertices (%f,%f) and (%f,%f)\n",
00908 // e->reg[0]->coord.x, e->reg[1]->coord.x, e->reg[0]->coord.y, e->reg[1]->coord.y);
00909 pushGraphEdge(x1,y1,x2,y2,e->reg[0],e->reg[1]);
00910 }
|
|
|
Definition at line 512 of file Voronoi.cc. References makefree(), and sfl. Referenced by endpoint(), PQdelete(), and voronoi(). 00513 {
00514 v->refcnt -= 1;
00515 if (v->refcnt == 0 )
00516 makefree((Freenode*)v, &sfl);
00517 }
|
|
||||||||||||
|
Definition at line 495 of file Voronoi.cc. Referenced by voronoi(). 00496 {
00497 double dx,dy;
00498 dx = s->coord.x - t->coord.x;
00499 dy = s->coord.y - t->coord.y;
00500 return (double)(sqrt(dx*dx + dy*dy));
00501 }
|
|
|
Definition at line 287 of file Voronoi.cc. References DELETED, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELleft, and fastjet::Halfedge::ELright. Referenced by voronoi(). 00287 {
00288 (he->ELleft)->ELright = he->ELright;
00289 (he->ELright)->ELleft = he->ELleft;
00290 he->ELedge = (Edge*) DELETED;
00291 }
|
|
|
Definition at line 212 of file Voronoi.cc. References DELETED, fastjet::Halfedge::ELedge, ELhash, ELhashsize, fastjet::Halfedge::ELrefcnt, hfl, and makefree(). Referenced by ELleftbnd(). 00212 {
00213 Halfedge *he;
00214
00215 if ((b<0) || (b>=ELhashsize))
00216 return (Halfedge *) NULL;
00217
00218 he = ELhash[b];
00219 if ((he==(Halfedge*) NULL) || (he->ELedge!=(Edge*) DELETED))
00220 return he;
00221
00222 /* Hash table points to deleted half edge. Patch as necessary. */
00223 ELhash[b] = (Halfedge*) NULL;
00224 if ((he->ELrefcnt -= 1) == 0)
00225 makefree((Freenode*)he, &hfl);
00226 return (Halfedge*) NULL;
00227 }
|
|
|
Definition at line 166 of file Voronoi.cc. References ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELright, ELrightend, freeinit(), HEcreate(), hfl, myalloc(), and sqrt_nsites. Referenced by voronoi(). 00166 {
00167 int i;
00168 freeinit(&hfl, sizeof(Halfedge));
00169 ELhashsize = 2 * sqrt_nsites;
00170 //ELhash = (Halfedge **) myalloc ( sizeof *ELhash * ELhashsize);
00171 ELhash = (Halfedge **) myalloc ( sizeof(Halfedge*)*ELhashsize);
00172
00173 if(ELhash == 0)
00174 return false;
00175
00176 for(i=0; i<ELhashsize; i +=1) ELhash[i] = (Halfedge *)NULL;
00177 ELleftend = HEcreate((Edge*) NULL, 0);
00178 ELrightend = HEcreate((Edge*) NULL, 0);
00179 ELleftend->ELleft = (Halfedge*) NULL;
00180 ELleftend->ELright = ELrightend;
00181 ELrightend->ELleft = ELleftend;
00182 ELrightend->ELright = (Halfedge*) NULL;
00183 ELhash[0] = ELleftend;
00184 ELhash[ELhashsize-1] = ELrightend;
00185
00186 return true;
00187 }
|
|
||||||||||||
|
Definition at line 202 of file Voronoi.cc. References fastjet::Halfedge::ELleft, and fastjet::Halfedge::ELright. Referenced by voronoi(). 00203 {
00204 newHe->ELleft = lb;
00205 newHe->ELright = lb->ELright;
00206 (lb->ELright)->ELleft = newHe;
00207 lb->ELright = newHe;
00208 }
|
|
|
Definition at line 299 of file Voronoi.cc. References fastjet::Halfedge::ELleft. 00299 {
00300 return he->ELleft;
00301 }
|
|
|
Referenced by voronoi(). |
|
|
Definition at line 229 of file Voronoi.cc. References deltax, ELgethash(), ELhash, ELhashsize, fastjet::Halfedge::ELleft, ELleftend, fastjet::Halfedge::ELrefcnt, fastjet::Halfedge::ELright, ELrightend, ntry, right_of(), totalsearch, and xmin. 00229 {
00230 int i, bucket;
00231 Halfedge *he;
00232
00233 /* Use hash table to get close to desired halfedge */
00234 // use the hash function to find the place in the hash map that this
00235 // HalfEdge should be
00236 bucket = (int)((p->x - xmin)/deltax * ELhashsize);
00237
00238 // make sure that the bucket position in within the range of the
00239 //hash array
00240 if (bucket<0) bucket =0;
00241 if (bucket>=ELhashsize) bucket = ELhashsize - 1;
00242
00243 he = ELgethash(bucket);
00244
00245 // if the HE isn't found, search backwards and forwards in the hash
00246 // map for the first non-null entry
00247 if (he == (Halfedge*) NULL){
00248 for(i=1;1;i++){
00249 if ((he=ELgethash(bucket-i)) != (Halfedge*) NULL)
00250 break;
00251 if ((he=ELgethash(bucket+i)) != (Halfedge*) NULL)
00252 break;
00253 };
00254 totalsearch += i;
00255 };
00256 ntry += 1;
00257 /* Now search linear list of halfedges for the correct one */
00258 if ((he==ELleftend) || (he != ELrightend && right_of(he,p))){
00259 do{
00260 he = he->ELright;
00261 } while (he!=ELrightend && right_of(he,p));
00262 // keep going right on the list until either the end is reached,
00263 // or you find the 1st edge which the point
00264 he = he->ELleft; //isn't to the right of
00265 } else
00266 // if the point is to the left of the HalfEdge, then search left
00267 // for the HE just to the left of the point
00268 do{
00269 he = he->ELleft;
00270 } while ((he!=ELleftend )&& (!right_of(he,p)));
00271
00272 /* Update hash table and reference counts */
00273 if ((bucket > 0) && (bucket <ELhashsize-1)){
00274 if(ELhash[bucket] != (Halfedge *) NULL){
00275 ELhash[bucket]->ELrefcnt -= 1;
00276 }
00277 ELhash[bucket] = he;
00278 ELhash[bucket]->ELrefcnt += 1;
00279 };
00280
00281 return he;
00282 }
|
|
|
Referenced by voronoi(). |
|
|
Definition at line 294 of file Voronoi.cc. References fastjet::Halfedge::ELright. 00294 {
00295 return he->ELright;
00296 }
|
|
|
Referenced by voronoi(). |
|
||||||||||||||||
|
Definition at line 480 of file Voronoi.cc. References clip_line(), deref(), efl, le, makefree(), re, and ref(). Referenced by voronoi(). 00481 {
00482 e->ep[lr] = s;
00483 ref(s);
00484 if(e->ep[re-lr]== (Site *) NULL)
00485 return;
00486
00487 clip_line(e);
00488
00489 deref(e->reg[le]);
00490 deref(e->reg[re]);
00491 makefree((Freenode*)e, &efl);
00492 }
|
|
||||||||||||
|
Definition at line 621 of file Voronoi.cc. References fastjet::Freelist::head, and fastjet::Freelist::nodesize. Referenced by ELinitialize(), generateVoronoi(), and geominit(). 00622 {
00623 fl->head = (Freenode *) NULL;
00624 fl->nodesize = size;
00625 }
|
|
||||||||||||||||||||||||||||
|
Definition at line 91 of file Voronoi.cc. References borderMaxX, borderMaxY, borderMinX, borderMinY, cleanup(), cleanupEdges(), debug, freeinit(), geominit(), minDistanceBetweenSites, myalloc(), n_parent_sites, nsites, parent_sites, plot, fastjet::scomp(), sfl, siteidx, sites, sorted, triangulate, voronoi(), xmax, xmin, ymax, and ymin. Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc(). 00094 {
00095 cleanup();
00096 cleanupEdges();
00097 int i;
00098 double x, y;
00099
00100 minDistanceBetweenSites = minDist;
00101
00102 parent_sites = _parent_sites;
00103
00104 nsites = n_parent_sites = parent_sites->size();
00105 plot = 0;
00106 triangulate = 0;
00107 debug = 1;
00108 sorted = 0;
00109 freeinit(&sfl, sizeof (Site));
00110
00111 //sites = (Site *) myalloc(nsites*sizeof( *sites));
00112 sites = (Site *) myalloc(nsites*sizeof( Site));
00113 //parent_sites = (Site *) myalloc(nsites*sizeof( Site));
00114
00115 if (sites == 0)
00116 return false;
00117
00118 xmax = xmin = (*parent_sites)[0].x;
00119 ymax = ymin = (*parent_sites)[0].y;
00120
00121 for(i=0;i<nsites;i++){
00122 x = (*parent_sites)[i].x;
00123 y = (*parent_sites)[i].y;
00124 sites[i].coord.x = x;
00125 sites[i].coord.y = y;
00126 sites[i].sitenbr = i;
00127 sites[i].refcnt = 0;
00128
00129 if (x<xmin)
00130 xmin=x;
00131 else if (x>xmax)
00132 xmax=x;
00133
00134 if (y<ymin)
00135 ymin=y;
00136 else if (y>ymax)
00137 ymax=y;
00138 }
00139
00140 qsort(sites, nsites, sizeof (*sites), scomp);
00141
00142 siteidx = 0;
00143 geominit();
00144 double temp = 0;
00145 if(minX > maxX){
00146 temp = minX;
00147 minX = maxX;
00148 maxX = temp;
00149 }
00150 if(minY > maxY){
00151 temp = minY;
00152 minY = maxY;
00153 maxY = temp;
00154 }
00155 borderMinX = minX;
00156 borderMinY = minY;
00157 borderMaxX = maxX;
00158 borderMaxY = maxY;
00159
00160 siteidx = 0;
00161 voronoi(triangulate);
00162
00163 return true;
00164 }
|
|
|
Definition at line 325 of file Voronoi.cc. References deltax, deltay, efl, freeinit(), nedges, nsites, nvertices, sqrt_nsites, xmax, xmin, ymax, and ymin. Referenced by generateVoronoi(). 00325 {
00326 double sn;
00327
00328 freeinit(&efl, sizeof(Edge));
00329 nvertices = 0;
00330 nedges = 0;
00331 sn = (double)nsites+4;
00332 sqrt_nsites = (int)sqrt(sn);
00333 deltay = ymax - ymin;
00334 deltax = xmax - xmin;
00335 }
|
|
|
Definition at line 627 of file Voronoi.cc. References currentMemoryBlock, fastjet::Freelist::head, makefree(), fastjet::FreeNodeArrayList::memory, myalloc(), fastjet::FreeNodeArrayList::next, fastjet::Freenode::nextfree, fastjet::Freelist::nodesize, and sqrt_nsites. Referenced by bisect(), HEcreate(), and intersect(). 00628 {
00629 int i;
00630 Freenode *t;
00631
00632 if(fl->head == (Freenode *) NULL)
00633 {
00634 t = (Freenode *) myalloc(sqrt_nsites * fl->nodesize);
00635
00636 if(t == 0)
00637 return 0;
00638
00639 currentMemoryBlock->next = new FreeNodeArrayList;
00640 currentMemoryBlock = currentMemoryBlock->next;
00641 currentMemoryBlock->memory = t;
00642 currentMemoryBlock->next = 0;
00643
00644 for(i=0; i<sqrt_nsites; i+=1)
00645 makefree((Freenode *)((char *)t+i*fl->nodesize), fl);
00646 };
00647 t = fl->head;
00648 fl->head = (fl->head)->nextfree;
00649 return((char *)t);
00650 }
|
|
|
Definition at line 207 of file Voronoi.hh. References fastjet::GraphEdge::next. Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc(). 00207 {
00208 if(iteratorEdges == 0)
00209 return false;
00210
00211 *e = iteratorEdges;
00212 iteratorEdges = iteratorEdges->next;
00213 return true;
00214 }
|
|
||||||||||||
|
Definition at line 190 of file Voronoi.cc. References fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, fastjet::Halfedge::ELrefcnt, getfree(), hfl, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex. 00190 {
00191 Halfedge *answer;
00192 answer = (Halfedge*) getfree(&hfl);
00193 answer->ELedge = e;
00194 answer->ELpm = pm;
00195 answer->PQnext = (Halfedge*) NULL;
00196 answer->vertex = (Site*) NULL;
00197 answer->ELrefcnt = 0;
00198 return answer;
00199 }
|
|
|
Referenced by ELinitialize(), and voronoi(). |
|
||||||||||||||||
|
Definition at line 384 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, getfree(), le, re, fastjet::Edge::reg, and sfl. Referenced by voronoi(). 00384 {
00385 Edge *e1,*e2, *e;
00386 Halfedge *el;
00387 double d, xint, yint;
00388 int right_of_site;
00389 Site *v;
00390
00391 e1 = el1->ELedge;
00392 e2 = el2->ELedge;
00393 if ((e1==(Edge*)NULL) || (e2==(Edge*)NULL))
00394 return ((Site*) NULL);
00395
00396 // if the two edges bisect the same parent, return null
00397 if (e1->reg[1] == e2->reg[1])
00398 return (Site*) NULL;
00399
00400 d = e1->a * e2->b - e1->b * e2->a;
00401 if (-1.0e-10<d && d<1.0e-10)
00402 return (Site*) NULL;
00403
00404 xint = (e1->c*e2->b - e2->c*e1->b)/d;
00405 yint = (e2->c*e1->a - e1->c*e2->a)/d;
00406
00407 volatile double local_y1 = e1->reg[1]->coord.y;
00408 volatile double local_y2 = e2->reg[1]->coord.y;
00409
00410 if( (local_y1 < local_y2) ||
00411 ((local_y1 == local_y2) &&
00412 (e1->reg[1]->coord.x < e2->reg[1]->coord.x)) ){
00413 el = el1;
00414 e = e1;
00415 } else {
00416 el = el2;
00417 e = e2;
00418 }
00419
00420 right_of_site = xint >= e->reg[1]->coord.x;
00421 if ((right_of_site && el->ELpm == le) || (!right_of_site && el->ELpm == re))
00422 return (Site*) NULL;
00423
00424 // create a new site at the point of intersection - this is a new
00425 // vector event waiting to happen
00426 v = (Site*) getfree(&sfl);
00427 v->refcnt = 0;
00428 v->coord.x = xint;
00429 v->coord.y = yint;
00430 return v;
00431 }
|
|
|
Definition at line 304 of file Voronoi.cc. References bottomsite, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, and fastjet::Edge::reg. Referenced by voronoi(). 00304 {
00305 if (he->ELedge == (Edge*) NULL)
00306 return(bottomsite);
00307 return (he->ELpm == le)
00308 ? he->ELedge->reg[le]
00309 : he->ELedge->reg[re];
00310 }
|
|
||||||||||||
|
Definition at line 654 of file Voronoi.cc. References fastjet::Freelist::head, and fastjet::Freenode::nextfree. Referenced by deref(), ELgethash(), endpoint(), and getfree(). 00655 {
00656 curr->nextfree = fl->head;
00657 fl->head = curr;
00658 }
|
|
|
Definition at line 504 of file Voronoi.cc. References nvertices, and out_vertex(). Referenced by voronoi(). 00505 {
00506 v->sitenbr = nvertices;
00507 nvertices += 1;
00508 out_vertex(v);
00509 }
|
|
|
Definition at line 729 of file Voronoi.cc. References total_alloc. Referenced by ELinitialize(), generateVoronoi(), getfree(), and PQinitialize(). 00730 {
00731 char *t=0;
00732 t=(char*)malloc(n);
00733 total_alloc += n;
00734 return(t);
00735 }
|
|
|
Definition at line 1053 of file Voronoi.cc. References nsites, siteidx, and sites. Referenced by voronoi(). 01054 {
01055 Site *s;
01056 if(siteidx < nsites)
01057 {
01058 s = &sites[siteidx];
01059 siteidx += 1;
01060 return(s);
01061 }
01062 else
01063 return( (Site *)NULL);
01064 }
|
|
|
Definition at line 740 of file Voronoi.cc. Referenced by plotinit(). 00740 {}
|
|
|
Definition at line 746 of file Voronoi.cc. 00747 {
00748
00749
00750 }
|
|
|
Definition at line 753 of file Voronoi.cc. 00754 {
00755
00756
00757 }
|
|
|
Definition at line 765 of file Voronoi.cc. References circle(), cradius, debug, plot, and triangulate. Referenced by voronoi(). 00766 {
00767 if(!triangulate & plot & !debug)
00768 circle (s->coord.x, s->coord.y, cradius);
00769
00770 }
|
|
||||||||||||||||
|
Definition at line 773 of file Voronoi.cc. Referenced by voronoi(). 00774 {
00775
00776 }
|
|
|
Definition at line 759 of file Voronoi.cc. Referenced by makevertex(). 00760 {
00761
00762 }
|
|
|
Definition at line 780 of file Voronoi.cc. References cradius, openpl(), pxmax, pxmin, pymax, pymin, range(), xmax, xmin, ymax, and ymin. 00781 {
00782 double dx,dy,d;
00783
00784 dy = ymax - ymin;
00785 dx = xmax - xmin;
00786 d = (double)(( dx > dy ? dx : dy) * 1.1);
00787 pxmin = (double)(xmin - (d-dx)/2.0);
00788 pxmax = (double)(xmax + (d-dx)/2.0);
00789 pymin = (double)(ymin - (d-dy)/2.0);
00790 pymax = (double)(ymax + (d-dy)/2.0);
00791 cradius = (double)((pxmax - pxmin)/350.0);
00792 openpl();
00793 range(pxmin, pymin, pxmax, pymax);
00794 }
|
|
|
Definition at line 581 of file Voronoi.cc. References PQhash, PQmin, fastjet::Halfedge::PQnext, fastjet::Halfedge::vertex, fastjet::Point::x, fastjet::Point::y, and fastjet::Halfedge::ystar. Referenced by voronoi(). 00582 {
00583 Point answer;
00584
00585 while(PQhash[PQmin].PQnext == (Halfedge *)NULL) {PQmin += 1;};
00586 answer.x = PQhash[PQmin].PQnext->vertex->coord.x;
00587 answer.y = PQhash[PQmin].PQnext->ystar;
00588 return (answer);
00589 }
|
|
|
Definition at line 562 of file Voronoi.cc. References deltay, PQhashsize, PQmin, ymin, and fastjet::Halfedge::ystar. Referenced by PQdelete(), and PQinsert(). 00563 {
00564 int bucket;
00565
00566 bucket = (int)((he->ystar - ymin)/deltay * PQhashsize);
00567 if (bucket<0) bucket = 0;
00568 if (bucket>=PQhashsize) bucket = PQhashsize-1 ;
00569 if (bucket < PQmin) PQmin = bucket;
00570 return(bucket);
00571 }
|
|
|
Definition at line 545 of file Voronoi.cc. References deref(), PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, and fastjet::Halfedge::vertex. Referenced by voronoi(). 00546 {
00547 Halfedge *last;
00548
00549 if(he->vertex != (Site *) NULL)
00550 {
00551 last = &PQhash[PQbucket(he)];
00552 while (last->PQnext != he)
00553 last = last->PQnext;
00554
00555 last->PQnext = he->PQnext;
00556 PQcount -= 1;
00557 deref(he->vertex);
00558 he->vertex = (Site *) NULL;
00559 };
00560 }
|
|
|
Definition at line 575 of file Voronoi.cc. References PQcount. Referenced by voronoi(). 00576 {
00577 return(PQcount==0);
00578 }
|
|
|
Definition at line 591 of file Voronoi.cc. References PQcount, PQhash, PQmin, and fastjet::Halfedge::PQnext. Referenced by voronoi(). 00592 {
00593 Halfedge *curr;
00594
00595 curr = PQhash[PQmin].PQnext;
00596 PQhash[PQmin].PQnext = curr->PQnext;
00597 PQcount -= 1;
00598 return(curr);
00599 }
|
|
|
|
|
|
Definition at line 602 of file Voronoi.cc. References myalloc(), PQcount, PQhash, PQhashsize, PQmin, fastjet::Halfedge::PQnext, and sqrt_nsites. Referenced by voronoi(). 00603 {
00604 int i;
00605
00606 PQcount = 0;
00607 PQmin = 0;
00608 PQhashsize = 4 * sqrt_nsites;
00609 //PQhash = (Halfedge *) myalloc(PQhashsize * sizeof *PQhash);
00610 PQhash = (Halfedge *) myalloc(PQhashsize * sizeof(Halfedge));
00611
00612 if(PQhash == 0)
00613 return false;
00614
00615 for(i=0; i<PQhashsize; i+=1) PQhash[i].PQnext = (Halfedge *)NULL;
00616
00617 return true;
00618 }
|
|
||||||||||||||||
|
Definition at line 525 of file Voronoi.cc. References PQbucket(), PQcount, PQhash, fastjet::Halfedge::PQnext, ref(), fastjet::Halfedge::vertex, and fastjet::Halfedge::ystar. Referenced by voronoi(). 00526 {
00527 Halfedge *last, *next;
00528
00529 he->vertex = v;
00530 ref(v);
00531 he->ystar = (double)(v->coord.y + offset);
00532 last = &PQhash[PQbucket(he)];
00533 while ((next = last->PQnext) != (Halfedge *) NULL &&
00534 (he->ystar > next->ystar ||
00535 (he->ystar == next->ystar && v->coord.x > next->vertex->coord.x)))
00536 {
00537 last = next;
00538 };
00539 he->PQnext = last->PQnext;
00540 last->PQnext = he;
00541 PQcount += 1;
00542 }
|
|
||||||||||||||||||||||||||||
|
Definition at line 713 of file Voronoi.cc. References allEdges, fastjet::GraphEdge::next, fastjet::GraphEdge::point1, fastjet::GraphEdge::point2, fastjet::GraphEdge::x1, fastjet::GraphEdge::x2, fastjet::GraphEdge::y1, and fastjet::GraphEdge::y2. Referenced by clip_line(). 00715 {
00716 GraphEdge* newEdge = new GraphEdge;
00717 newEdge->next = allEdges;
00718 allEdges = newEdge;
00719 newEdge->x1 = x1;
00720 newEdge->y1 = y1;
00721 newEdge->x2 = x2;
00722 newEdge->y2 = y2;
00723
00724 newEdge->point1 = s1->sitenbr;
00725 newEdge->point2 = s2->sitenbr;
00726 }
|
|
||||||||||||||||||||
|
Definition at line 742 of file Voronoi.cc. Referenced by plotinit(). 00742 {}
|
|
|
Definition at line 519 of file Voronoi.cc. Referenced by bisect(), endpoint(), and PQinsert(). 00520 {
00521 v->refcnt += 1;
00522 }
|
|
|
Definition at line 203 of file Voronoi.hh. Referenced by fastjet::ClusterSequenceVoronoiArea::VoronoiAreaCalc::VoronoiAreaCalc(). 00203 {
00204 iteratorEdges = allEdges;
00205 }
|
|
||||||||||||
|
Definition at line 436 of file Voronoi.cc. References fastjet::Edge::a, fastjet::Edge::b, fastjet::Edge::c, fastjet::Halfedge::ELedge, fastjet::Halfedge::ELpm, le, re, fastjet::Edge::reg, fastjet::Point::x, and fastjet::Point::y. Referenced by ELleftbnd(). 00437 {
00438 Edge *e;
00439 Site *topsite;
00440 int right_of_site, above, fast;
00441 double dxp, dyp, dxs, t1, t2, t3, yl;
00442
00443 e = el->ELedge;
00444 topsite = e->reg[1];
00445 right_of_site = p->x > topsite->coord.x;
00446 if(right_of_site && el->ELpm == le) return(1);
00447 if(!right_of_site && el->ELpm == re) return (0);
00448
00449 if (e->a == 1.0)
00450 { dyp = p->y - topsite->coord.y;
00451 dxp = p->x - topsite->coord.x;
00452 fast = 0;
00453 if ((!right_of_site & (e->b<0.0)) | (right_of_site & (e->b>=0.0)) )
00454 { above = dyp>= e->b*dxp;
00455 fast = above;
00456 }
00457 else
00458 { above = p->x + p->y*e->b > e-> c;
00459 if(e->b<0.0) above = !above;
00460 if (!above) fast = 1;
00461 };
00462 if (!fast)
00463 { dxs = topsite->coord.x - (e->reg[0])->coord.x;
00464 above = e->b * (dxp*dxp - dyp*dyp) <
00465 dxs*dyp*(1.0+2.0*dxp/dxs + e->b*e->b);
00466 if(e->b<0.0) above = !above;
00467 };
00468 }
00469 else /*e->b==1.0 */
00470 { yl = e->c - e->a*p->x;
00471 t1 = p->y - yl;
00472 t2 = p->x - topsite->coord.x;
00473 t3 = yl - topsite->coord.y;
00474 above = t1*t1 > t2*t2 + t3*t3;
00475 };
00476 return (el->ELpm==le ? above : !above);
00477 }
|
|
|
Definition at line 312 of file Voronoi.cc. References bottomsite, le, and re. Referenced by voronoi(). 00312 {
00313 if (he->ELedge == (Edge*) NULL)
00314 // if this halfedge has no edge, return the bottom site (whatever
00315 // that is)
00316 return bottomsite;
00317
00318 // if the ELpm field is zero, return the site 0 that this edge
00319 // bisects, otherwise return site number 1
00320 return (he->ELpm == le)
00321 ? he->ELedge->reg[re]
00322 : he->ELedge->reg[le];
00323 }
|
|
|
Definition at line 918 of file Voronoi.cc. References bisect(), bottomsite, clip_line(), deref(), dist(), ELdelete(), fastjet::Halfedge::ELedge, ELinitialize(), ELinsert(), ELleft(), ELleftbnd(), ELleftend, fastjet::Halfedge::ELpm, ELright(), ELrightend, endpoint(), HEcreate(), intersect(), le, leftreg(), makevertex(), nextone(), out_site(), out_triple(), PQ_min(), PQdelete(), PQempty(), PQextractmin(), PQinitialize(), PQinsert(), re, rightreg(), fastjet::Halfedge::vertex, fastjet::Point::x, and fastjet::Point::y. Referenced by generateVoronoi(). 00919 {
00920 Site *newsite, *bot, *top, *temp, *p;
00921 Site *v;
00922 Point newintstar;
00923 int pm;
00924 Halfedge *lbnd, *rbnd, *llbnd, *rrbnd, *bisector;
00925 Edge *e;
00926
00927 PQinitialize();
00928 bottomsite = nextone();
00929 out_site(bottomsite);
00930 bool retval = ELinitialize();
00931
00932 if(!retval)
00933 return false;
00934
00935 newsite = nextone();
00936 while(1)
00937 {
00938
00939 if(!PQempty())
00940 newintstar = PQ_min();
00941
00942 //if the lowest site has a smaller y value than the lowest vector intersection, process the site
00943 //otherwise process the vector intersection
00944 if (newsite != (Site *)NULL){
00945 volatile double local_newsite_coord_y = newsite->coord.y;
00946 volatile double local_newintstar_y = newintstar.y;
00947 if (PQempty() || local_newsite_coord_y < local_newintstar_y
00948 || ( local_newsite_coord_y == local_newintstar_y && newsite->coord.x < newintstar.x))
00949 {/* new site is smallest - this is a site event*/
00950 out_site(newsite); //output the site
00951 lbnd = ELleftbnd(&(newsite->coord)); //get the first HalfEdge to the LEFT of the new site
00952 rbnd = ELright(lbnd); //get the first HalfEdge to the RIGHT of the new site
00953 bot = rightreg(lbnd); //if this halfedge has no edge, , bot = bottom site (whatever that is)
00954 e = bisect(bot, newsite); //create a new edge that bisects
00955 bisector = HEcreate(e, le); //create a new HalfEdge, setting its ELpm field to 0
00956 ELinsert(lbnd, bisector); //insert this new bisector edge between the left and right vectors in a linked list
00957
00958 if ((p = intersect(lbnd, bisector)) != (Site *) NULL) //if the new bisector intersects with the left edge, remove the left edge's vertex, and put in the new one
00959 {
00960 PQdelete(lbnd);
00961 PQinsert(lbnd, p, dist(p,newsite));
00962 };
00963 lbnd = bisector;
00964 bisector = HEcreate(e, re); //create a new HalfEdge, setting its ELpm field to 1
00965 ELinsert(lbnd, bisector); //insert the new HE to the right of the original bisector earlier in the IF stmt
00966
00967 if ((p = intersect(bisector, rbnd)) != (Site *) NULL) //if this new bisector intersects with the
00968 {
00969 PQinsert(bisector, p, dist(p,newsite)); //push the HE into the ordered linked list of vertices
00970 };
00971 newsite = nextone();
00972 }
00973 else if (!PQempty()) /* intersection is smallest - this is a vector event */
00974 {
00975 lbnd = PQextractmin(); //pop the HalfEdge with the lowest vector off the ordered list of vectors
00976 llbnd = ELleft(lbnd); //get the HalfEdge to the left of the above HE
00977 rbnd = ELright(lbnd); //get the HalfEdge to the right of the above HE
00978 rrbnd = ELright(rbnd); //get the HalfEdge to the right of the HE to the right of the lowest HE
00979 bot = leftreg(lbnd); //get the Site to the left of the left HE which it bisects
00980 top = rightreg(rbnd); //get the Site to the right of the right HE which it bisects
00981
00982 out_triple(bot, top, rightreg(lbnd)); //output the triple of sites, stating that a circle goes through them
00983
00984 v = lbnd->vertex; //get the vertex that caused this event
00985 makevertex(v); //set the vertex number - couldn't do this earlier since we didn't know when it would be processed
00986 endpoint(lbnd->ELedge,lbnd->ELpm,v); //set the endpoint of the left HalfEdge to be this vector
00987 endpoint(rbnd->ELedge,rbnd->ELpm,v); //set the endpoint of the right HalfEdge to be this vector
00988 ELdelete(lbnd); //mark the lowest HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00989 PQdelete(rbnd); //remove all vertex events to do with the right HE
00990 ELdelete(rbnd); //mark the right HE for deletion - can't delete yet because there might be pointers to it in Hash Map
00991 pm = le; //set the pm variable to zero
00992
00993 if (bot->coord.y > top->coord.y) //if the site to the left of the event is higher than the Site
00994 { //to the right of it, then swap them and set the 'pm' variable to 1
00995 temp = bot;
00996 bot = top;
00997 top = temp;
00998 pm = re;
00999 }
01000 e = bisect(bot, top); //create an Edge (or line) that is between the two Sites. This creates
01001 //the formula of the line, and assigns a line number to it
01002 bisector = HEcreate(e, pm); //create a HE from the Edge 'e', and make it point to that edge with its ELedge field
01003 ELinsert(llbnd, bisector); //insert the new bisector to the right of the left HE
01004 endpoint(e, re-pm, v); //set one endpoint to the new edge to be the vector point 'v'.
01005 //If the site to the left of this bisector is higher than the right
01006 //Site, then this endpoint is put in position 0; otherwise in pos 1
01007 deref(v); //delete the vector 'v'
01008
01009 //if left HE and the new bisector don't intersect, then delete the left HE, and reinsert it
01010 if((p = intersect(llbnd, bisector)) != (Site *) NULL)
01011 {
01012 PQdelete(llbnd);
01013 PQinsert(llbnd, p, dist(p,bot));
01014 };
01015
01016 //if right HE and the new bisector don't intersect, then reinsert it
01017 if ((p = intersect(bisector, rrbnd)) != (Site *) NULL)
01018 {
01019 PQinsert(bisector, p, dist(p,bot));
01020 };
01021 }
01022 } else break;
01023 };
01024
01025
01026
01027
01028 for(lbnd=ELright(ELleftend); lbnd != ELrightend; lbnd=ELright(lbnd))
01029 {
01030 e = lbnd->ELedge;
01031
01032 clip_line(e);
01033 };
01034
01035 //cleanup();
01036
01037 return true;
01038
01039 }
|
|
|
Definition at line 309 of file Voronoi.hh. Referenced by cleanupEdges(), pushGraphEdge(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 306 of file Voronoi.hh. Referenced by cleanup(), VoronoiDiagramGenerator(), and ~VoronoiDiagramGenerator(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 304 of file Voronoi.hh. Referenced by clip_line(), and generateVoronoi(). |
|
|
Definition at line 291 of file Voronoi.hh. Referenced by leftreg(), rightreg(), and voronoi(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by out_site(), and plotinit(). |
|
|
Definition at line 307 of file Voronoi.hh. Referenced by cleanup(), getfree(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(), and out_site(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by ELleftbnd(), and geominit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by geominit(), and PQbucket(). |
|
|
Definition at line 294 of file Voronoi.hh. Referenced by bisect(), endpoint(), and geominit(). |
|
|
Definition at line 226 of file Voronoi.hh. Referenced by cleanup(), ELgethash(), ELinitialize(), ELleftbnd(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 280 of file Voronoi.hh. Referenced by ELgethash(), ELinitialize(), and ELleftbnd(). |
|
|
Definition at line 279 of file Voronoi.hh. Referenced by ELinitialize(), ELleftbnd(), and voronoi(). |
|
|
Definition at line 279 of file Voronoi.hh. Referenced by ELinitialize(), ELleftbnd(), and voronoi(). |
|
|
Definition at line 278 of file Voronoi.hh. Referenced by ELgethash(), ELinitialize(), and HEcreate(). |
|
|
Definition at line 310 of file Voronoi.hh. Referenced by VoronoiDiagramGenerator(). |
|
|
Definition at line 312 of file Voronoi.hh. Referenced by generateVoronoi(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 217 of file Voronoi.hh. Referenced by generateVoronoi(). |
|
|
Definition at line 293 of file Voronoi.hh. Referenced by bisect(), and geominit(). |
|
|
Definition at line 286 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), and nextone(). |
|
|
Definition at line 300 of file Voronoi.hh. Referenced by ELleftbnd(). |
|
|
Definition at line 289 of file Voronoi.hh. Referenced by geominit(), and makevertex(). |
|
|
Definition at line 216 of file Voronoi.hh. Referenced by generateVoronoi(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(), and out_site(). |
|
|
Definition at line 297 of file Voronoi.hh. Referenced by PQdelete(), PQempty(), PQextractmin(), PQinitialize(), and PQinsert(). |
|
|
Definition at line 296 of file Voronoi.hh. Referenced by cleanup(), PQ_min(), PQdelete(), PQextractmin(), PQinitialize(), PQinsert(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 295 of file Voronoi.hh. Referenced by PQbucket(), and PQinitialize(). |
|
|
Definition at line 298 of file Voronoi.hh. Referenced by PQ_min(), PQbucket(), PQextractmin(), and PQinitialize(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 301 of file Voronoi.hh. Referenced by clip_line(), and plotinit(). |
|
|
Definition at line 290 of file Voronoi.hh. Referenced by deref(), generateVoronoi(), and intersect(). |
|
|
Definition at line 287 of file Voronoi.hh. Referenced by generateVoronoi(), nextone(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 285 of file Voronoi.hh. Referenced by cleanup(), generateVoronoi(), nextone(), and VoronoiDiagramGenerator(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(). |
|
|
Definition at line 288 of file Voronoi.hh. Referenced by ELinitialize(), geominit(), getfree(), and PQinitialize(). |
|
|
Definition at line 302 of file Voronoi.hh. Referenced by myalloc(). |
|
|
Definition at line 300 of file Voronoi.hh. Referenced by ELleftbnd(). |
|
|
Definition at line 282 of file Voronoi.hh. Referenced by generateVoronoi(), and out_site(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), and plotinit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by ELleftbnd(), generateVoronoi(), geominit(), and plotinit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), and plotinit(). |
|
|
Definition at line 283 of file Voronoi.hh. Referenced by generateVoronoi(), geominit(), plotinit(), and PQbucket(). |
1.4.2
